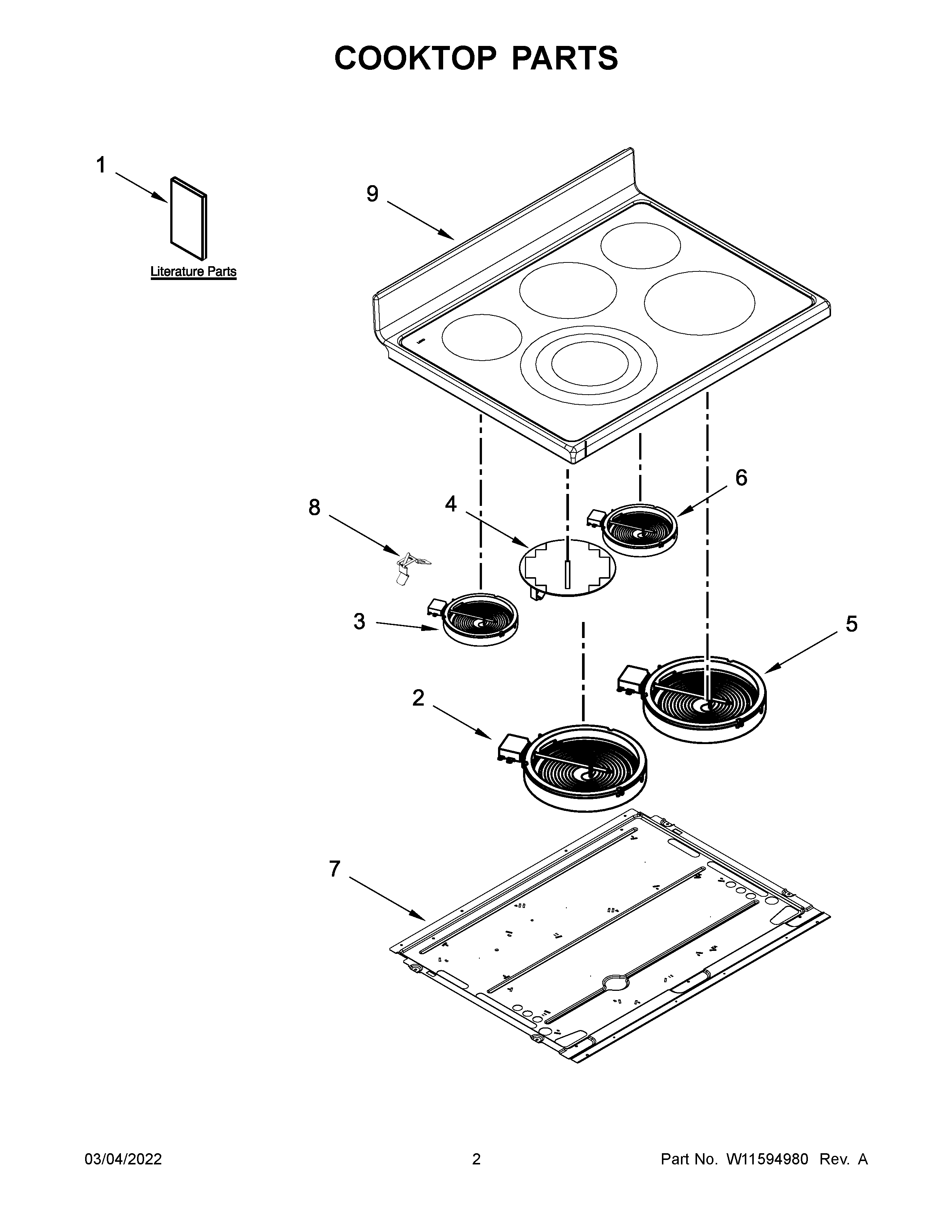

KFED500EBS05 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11172425 Whirlpool Wire Harness
NI	W11171874 Whirlpool Wire Harness
NI	W11172428 Whirlpool Wire Harness
NI	W11172427 Whirlpool Wire Harness
NI	W11172531 Whirlpool Wire Harness
NI	W11171888 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI	WIRING HARNESS PARTS, SCREW, GROUND
NI	WPL 8019P01360
1B	TECH SHEET
1A	QUICK START GUIDE
1	OWNER'S MANUAL
2	W11101459 Whirlpool Surface Element
3	WPW10270604 Whirlpool Surface Element
4	W11041453 Whirlpool Surface Element
5	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
6	ELMNT-SURF
7	WPW10260946 Whirlpool Panel
8	WPW10225448 Whirlpool Spring Assembly
9	W10789672 Whirlpool Cooktop
