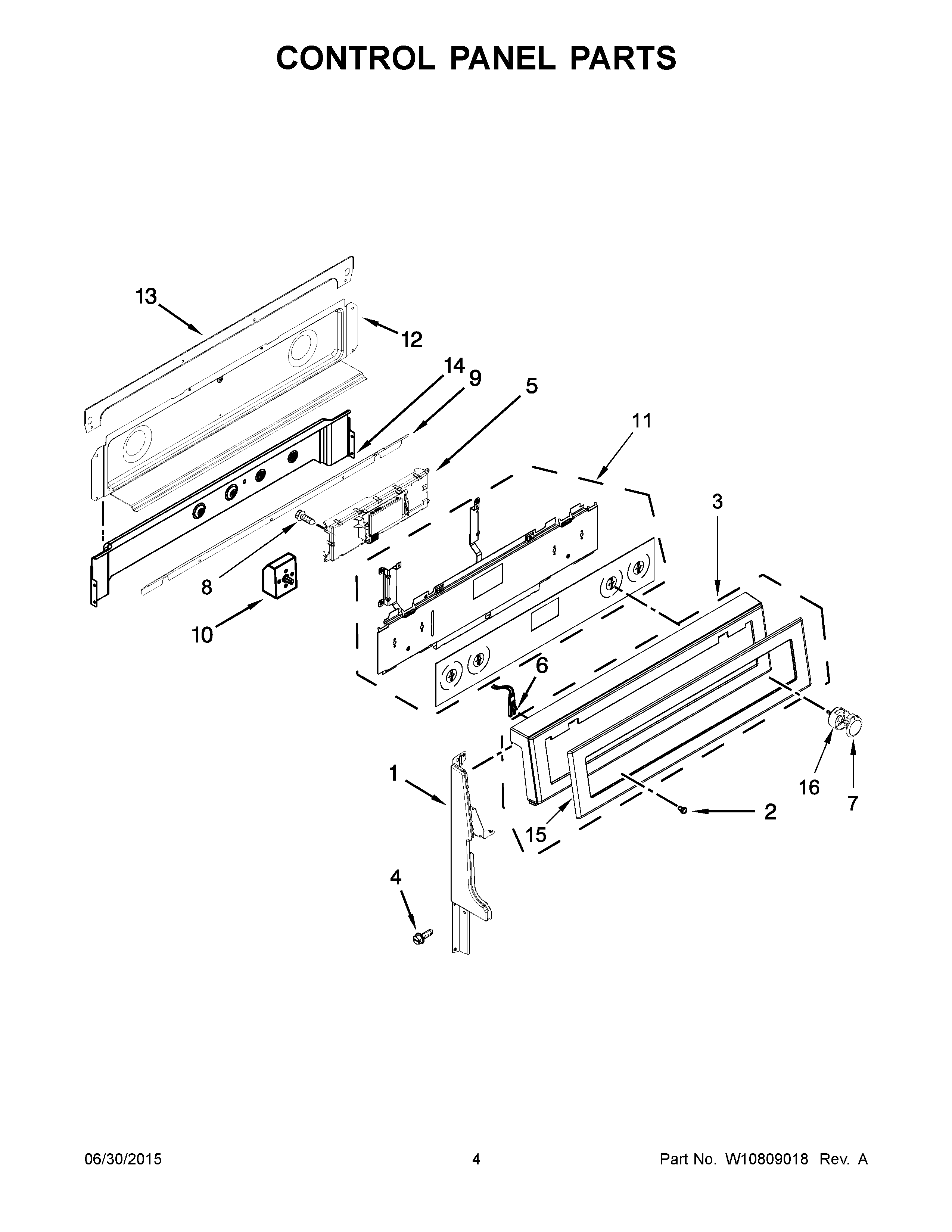

KFED500ESS01 03 – CONTROL PANEL PARTS

KFED500ESS01 03 – CONTROL PANEL PARTS

Written by

in

KFED500ESS01 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10319109 Whirlpool Endcap Panel
1BW10319110 Whirlpool Endcap Panel
1CW10319112 Whirlpool Panel Endcap
2WP3196068 Whirlpool Light Lens
4SCREW (BLACK)
5WPW10778305-includeCORE Whirlpool WPW10778305 Refrigerator Electronic Control Board + Core
6Light, Indicator
7W11230929 Whirlpool Knob
8SCREW
10WPW10296657 Whirlpool Infinite Switch (Left Front)
10CSWITCH, INFINITE (RIGHT REAR)
10BWPW10441696 Infinite Switch (Right) Front)
10AWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
11AW10645824 Whirlpool Dishwasher Control Panel
11W10692155 Whirlpool Control Panel
12W10776098 Whirlpool Rear Cover
13WPW10292689 Whirlpool Wire Cover
14W10278697 Whirlpool Vent Shield Assembly
15BW11164063 Whirlpool Control Panel
15AW10645847 Whirlpool Control Panel
15W10645846 Whirlpool Control Panel
16W11368920 Whirlpool Knob Bezel
