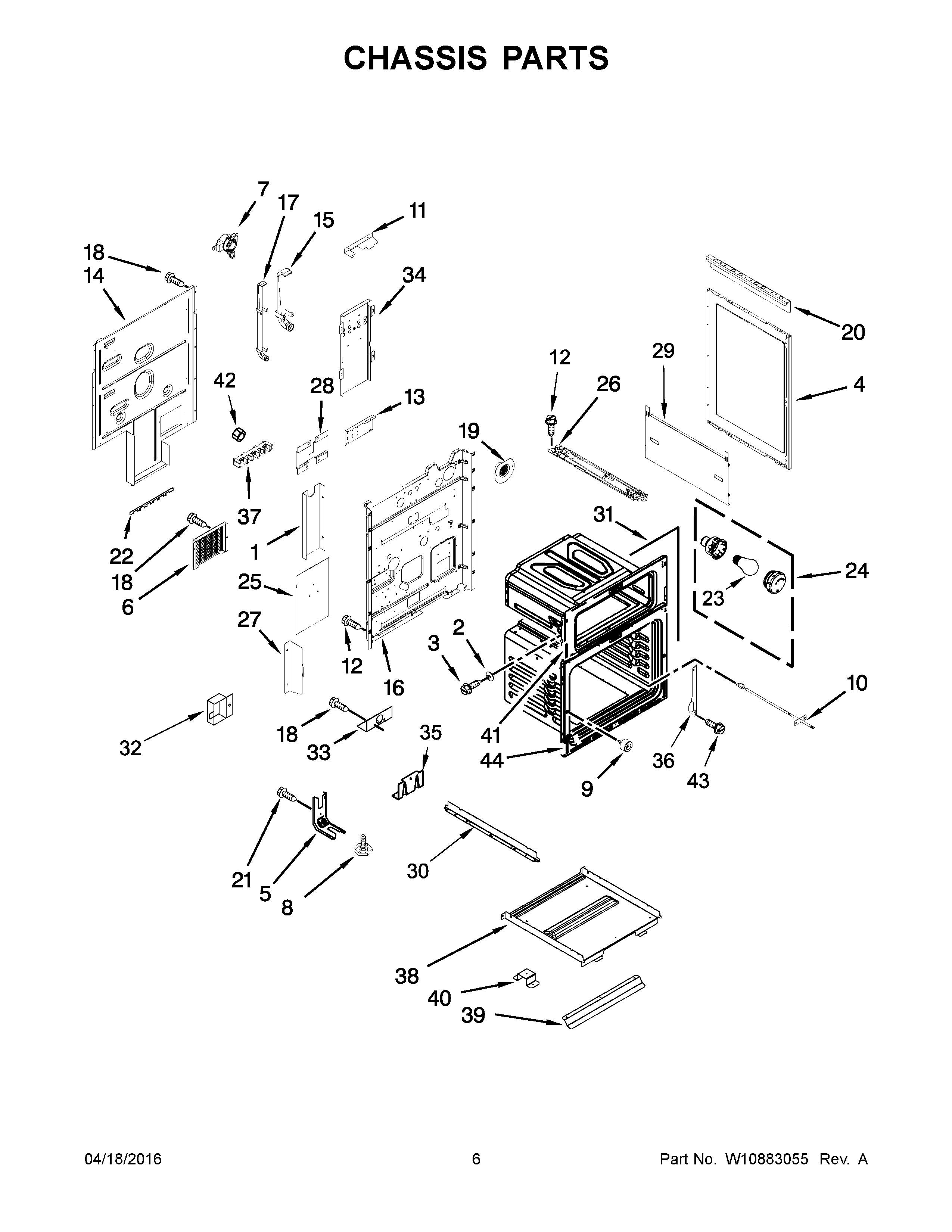

KFED500ESS02 04 – CHASSIS PARTS

KFED500ESS02 04 – CHASSIS PARTS

Products

PositionProduct
NIWPW10322111 Whirlpool Insulation
NIWPW10271637 Whirlpool Insulation
NIWPW10204079 Whirlpool Insulation
NIW11685361 Whirlpool Insulation
NIINSULATION, WRAPPER
NIW11684900 Whirlpool Insulation Panel
1W10332459 Whirlpool Heat Shield
2WPW10237689 Whirlpool Spacer Panel
3WPW10267456 Whirlpool Screw
4AW11594131 Whirlpool Side Panel
4W10832695 Whirlpool Side Panel
5BRACKET, ANTI TIP
6W10312612 Whirlpool Black Cover
7SWITCH, HIGH LIMIT
8FOOT, LEVELER
9W10105790 Whirlpool Bumper
10SENSOR, OVEN
11W10268559 Whirlpool Cover Wire
12SCREW
13W10332449 Whirlpool Heat Shield
14WPW10261386 Whirlpool Wire Cover
15W10337391 Whirlpool Vent Tube
16W10668730 Whirlpool Rear Cover
17WPW10323793 Whirlpool Vent Tube
18SCREW
19W10322408 Whirlpool Extension Tube
20W10319087 Whirlpool Support Bracket
21SCREW, ANTI-TIP KIT
22SHIELD, POWER CORD
23RANGE ONLY 40W 120V APPL BULB
24W11594027 Whirlpool Range Oven Light Socket
25W10311987 Whirlpool Heat Shield
26W11166856 Whirlpool Door Latch
27W10268560 Whirlpool Wire Cover
28INSULATOR,HEAT SHIELD
29SHIELD-SIDE INSULATION
30W10357697 Whirlpool Spacer Panel
31AWPW10269069 Whirlpool Door Gasket
31W10337392 Whirlpool Door Gasket
328285593 Whirlpool Oven Wire Cover
33W10190166 Whirlpool Service Bracket
34W10261388 Whirlpool Mounting Bracket
35W10260703 Whirlpool Support
36AW10410461 Whirlpool Cover
36W10410463 Whirlpool Cover Assembly
37Block, Terminal
38W10548601 Whirlpool Heat Shield
39W10253470 Whirlpool Retainer Assembly
40W10260545 Whirlpool Support Bracket
41W10606341 Whirlpool Front Frame
42WP3400029 Whirlpool Dishwasher Nut
43Screw
44WPW10308654 Whirlpool Front Frame
