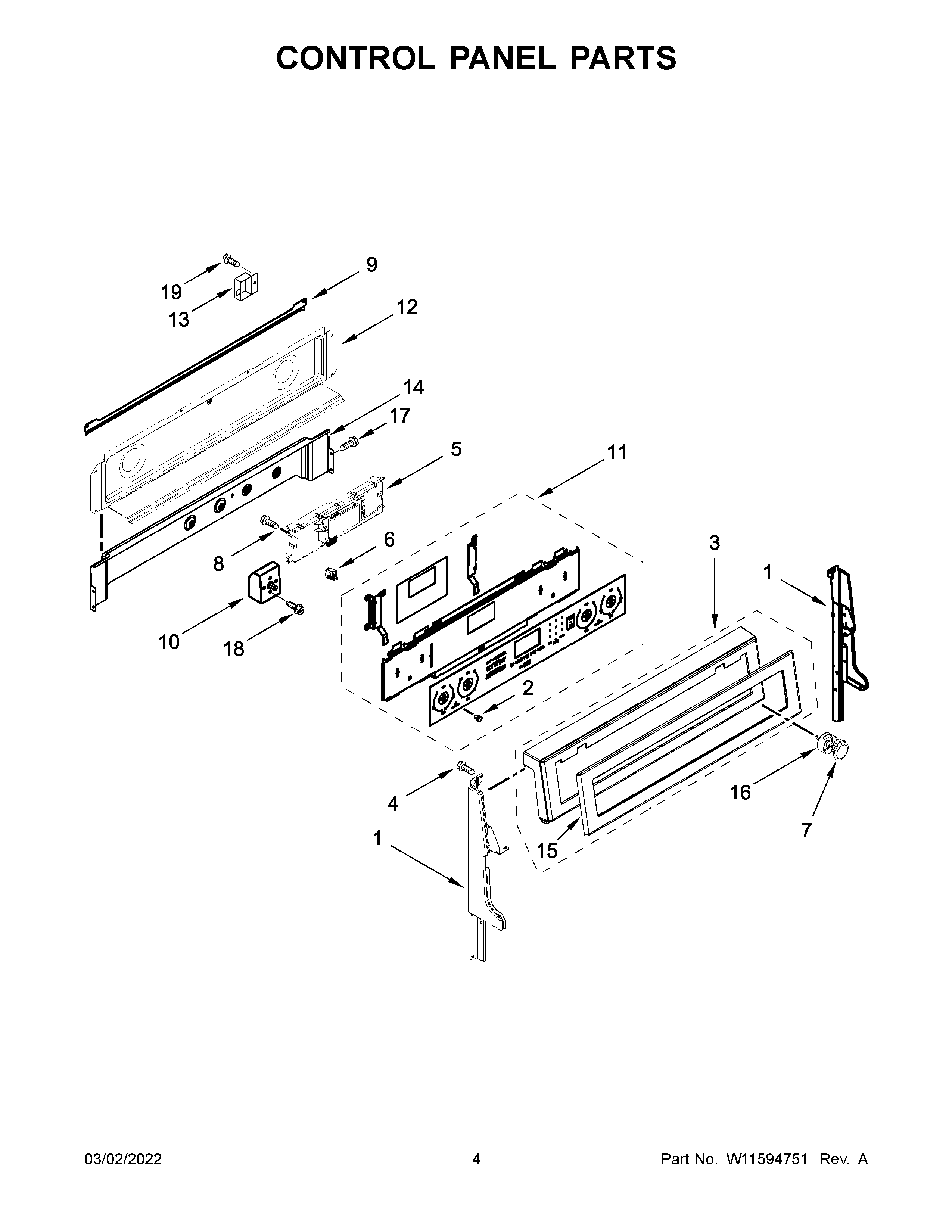

KFED500ESS05 03 – CONTROL PANEL PARTS

KFED500ESS05 03 – CONTROL PANEL PARTS

Written by

in

KFED500ESS05 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW10319112 Whirlpool Panel Endcap
1W10319110 Whirlpool Endcap Panel
1CSUPPORT, BACK GUARD (RIGHT HAND)
1BW10319109 Whirlpool Endcap Panel
2WP3196068 Whirlpool Light Lens
3AW11164063 Whirlpool Control Panel
3W10645847 Whirlpool Control Panel
4SCREW
5W11594150-includeCORE Whirlpool W11594150 Refrigerator Electronic Control Board with Core
6Light, Indicator
7KNOB
8SCREW
10AWPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
10WPW10296657 Whirlpool Infinite Switch (Left Front)
10BWPW10312185 Whirlpool Infinite Switch
10CSWITCH, INFINITE (RIGHT REAR)
11AW11527486 Whirlpool Control Panel
11ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (WHITE)
12W10776098 Whirlpool Rear Cover
138285593 Whirlpool Oven Wire Cover
14W10278697 Whirlpool Vent Shield Assembly
15CABINET (NOT A SERVICEABLE PART)
16W11368920 Whirlpool Knob Bezel
17W11245710 Whirlpool Refrigerator Screw
18W10674068 Whirlpool Screw
19SCREW
