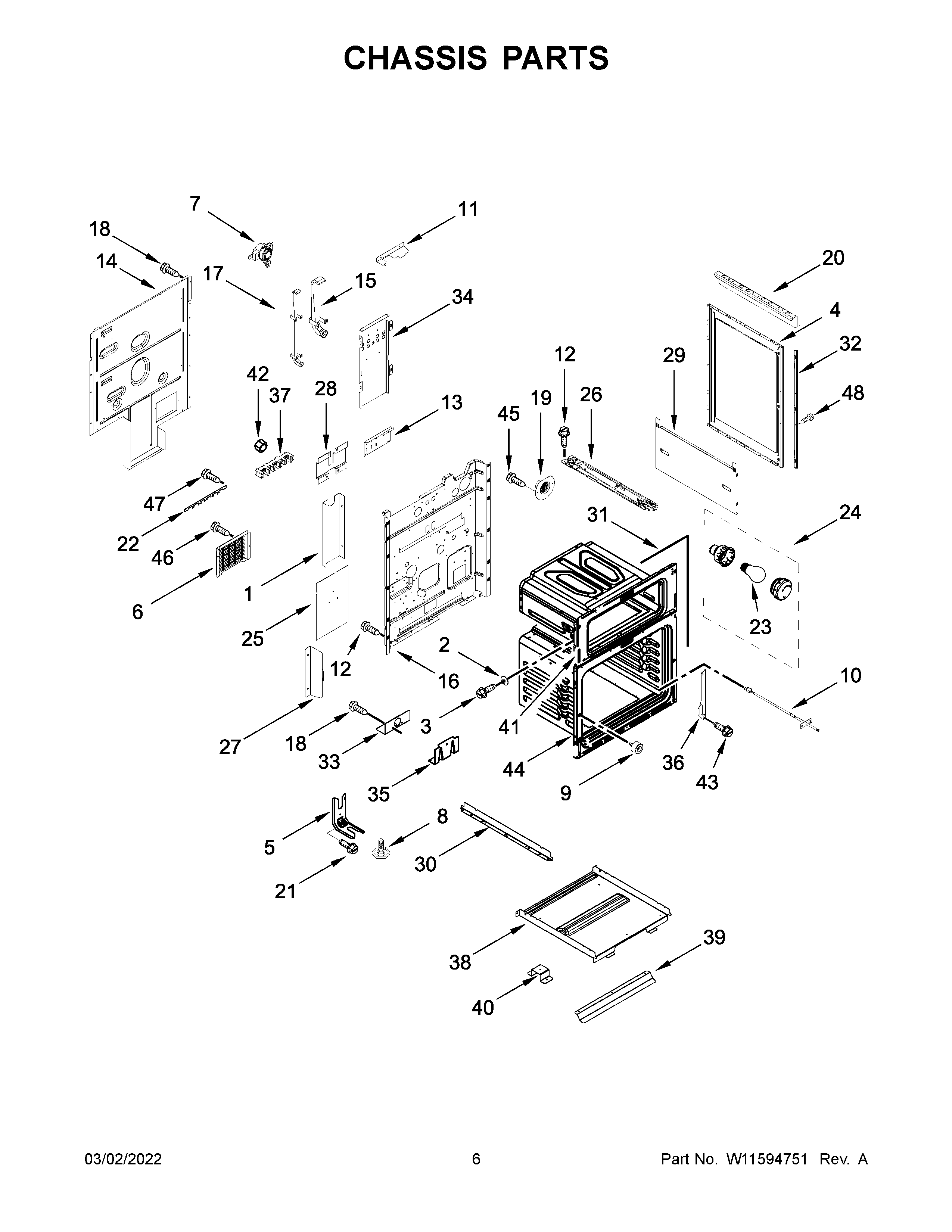

KFED500ESS05 04 – CHASSIS PARTS

KFED500ESS05 04 – CHASSIS PARTS

Written by

in

KFED500ESS05 04 – CHASSIS PARTS

Products

PositionProduct
NIW11685361 Whirlpool Insulation
NIWPW10322111 Whirlpool Insulation
NIWPW10271637 Whirlpool Insulation
NIWPW10204079 Whirlpool Insulation
NIINSULATION, WRAPPER
NIINSULATION, HIDDEN BAKE POUCH
NICABINET (NOT A SERVICEABLE PART)
1W10332459 Whirlpool Heat Shield
2W11594028 Whirlpool Spacer Panel
3SCREW
4AW11594130 Whirlpool Side Panel
4W11594131 Whirlpool Side Panel
5BRACKET, ANTI TIP
6W10312612 Whirlpool Black Cover
7SWITCH, HIGH LIMIT
8FOOT, LEVELER
9W10105790 Whirlpool Bumper
10SENSOR, OVEN
11W10268559 Whirlpool Cover Wire
12SCREW
13W10332449 Whirlpool Heat Shield
14WPW10261386 Whirlpool Wire Cover
15W10337391 Whirlpool Vent Tube
16W10668730 Whirlpool Rear Cover
17WPW10323793 Whirlpool Vent Tube
18SCREW
19W10322408 Whirlpool Extension Tube
20W10319087 Whirlpool Support Bracket
21SCREW, ANTI-TIP KIT
22SHIELD, POWER CORD
23BULB, LIGHT
24W11594027 Whirlpool Range Oven Light Socket
25W10311987 Whirlpool Heat Shield
26W11166856 Whirlpool Door Latch
27W10268560 Whirlpool Wire Cover
28INSULATOR,HEAT SHIELD
29SHIELD-SIDE INSULATION
30W10357697 Whirlpool Spacer Panel
31AW11594140 Whirlpool Door Gasket
31GASKET, OVEN DOOR (UPPER)
32BRACKET, RUBBER BARRIER
33W10190166 Whirlpool Service Bracket
34W10261388 Whirlpool Mounting Bracket
35SUPPORT, LOWER OVEN
36W10410463 Whirlpool Cover Assembly
36AW10410461 Whirlpool Cover
37Block, Terminal
38W10548601 Whirlpool Heat Shield
39W10253470 Whirlpool Retainer Assembly
40W10260545 Whirlpool Support Bracket
41FRONT, MAIN (UPPER)
42WP3400029 Whirlpool Dishwasher Nut
43Screw
44FRONT, MAIN (LOWER)
45W10850807 Whirlpool Screw
46SCREW
47WP488488 Whirlpool Refrigerator Screw
48SCREW (BLACK)
