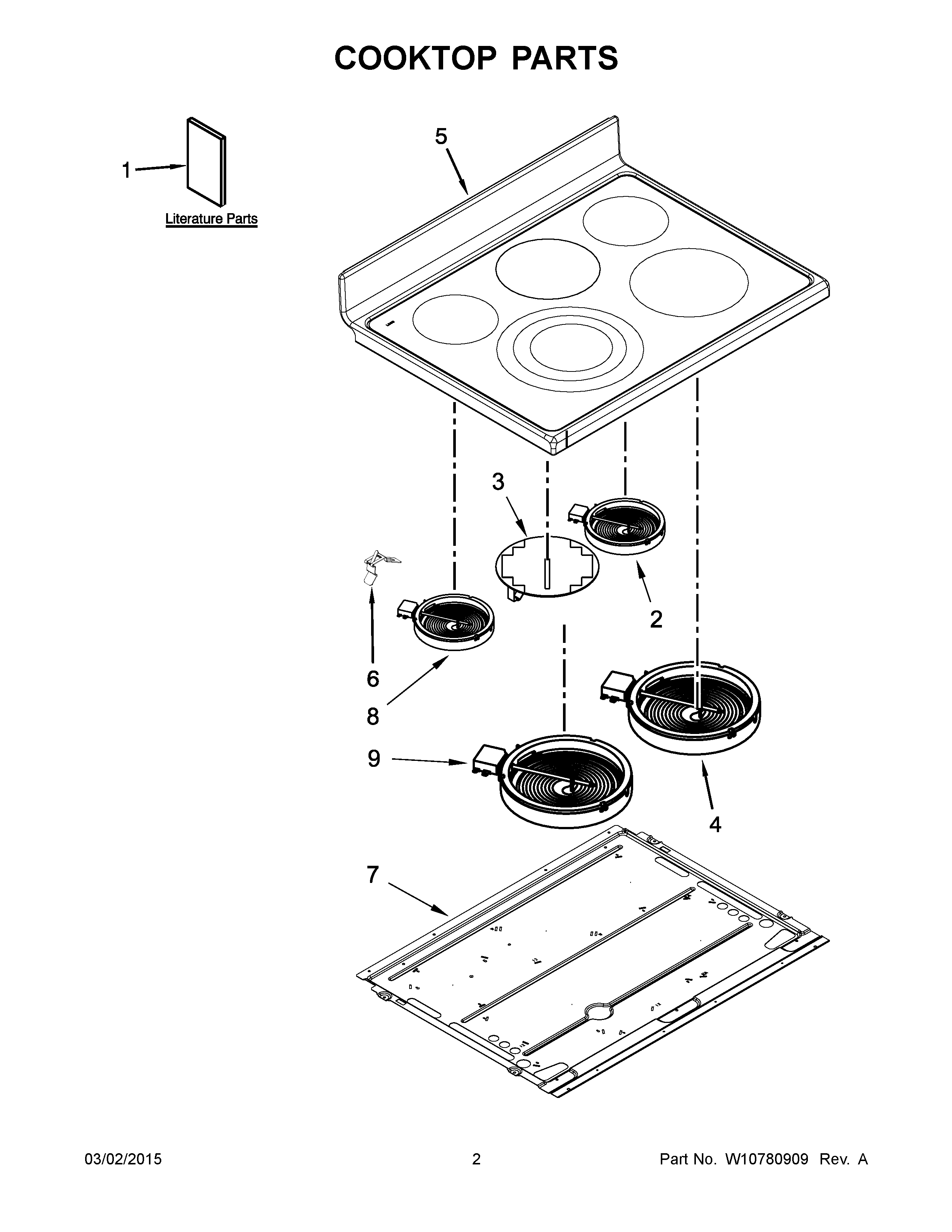

KFED500EWH00 02 – COOKTOP PARTS
Written by
in
KFED500EWH00 02 – COOKTOP PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
HARNESS, MAIN
NI
W11171874 Whirlpool Wire Harness
NI
W10406512 Whirlpool Refrigerator Infinite Switch Wire Harness (Left)
NI
W10406501 Whirlpool Wire Harness Harness, Infinite Switch (Right)
NI
W11157775 Whirlpool Wire Harness
NI
WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTER
NI
W10225701 Whirlpool Sensor Wire Harness
NI
WIRING HARNESS PARTS, SCREW, GROUND
NI
WPL 8019P01360
1
GUIDE, USE & CARE
1A
INSTRUCTIONS, INSTALLATION
1B
SHEET, TECH
1C
SAFER COOKING TIPS (ENGLISH
2
ELMNT-SURF
3
WP9762851 Whirlpool Surface Element
4
WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
5
W10789672 Whirlpool Cooktop
5B
W10780927 Whirlpool Cooktop
5A
W10789673 Whirlpool Cooktop
6
WPW10225448 Whirlpool Spring Assembly
7
WPW10260946 Whirlpool Panel
8
WPW10270604 Whirlpool Surface Element
9
W11101459 Whirlpool Surface Element
←
