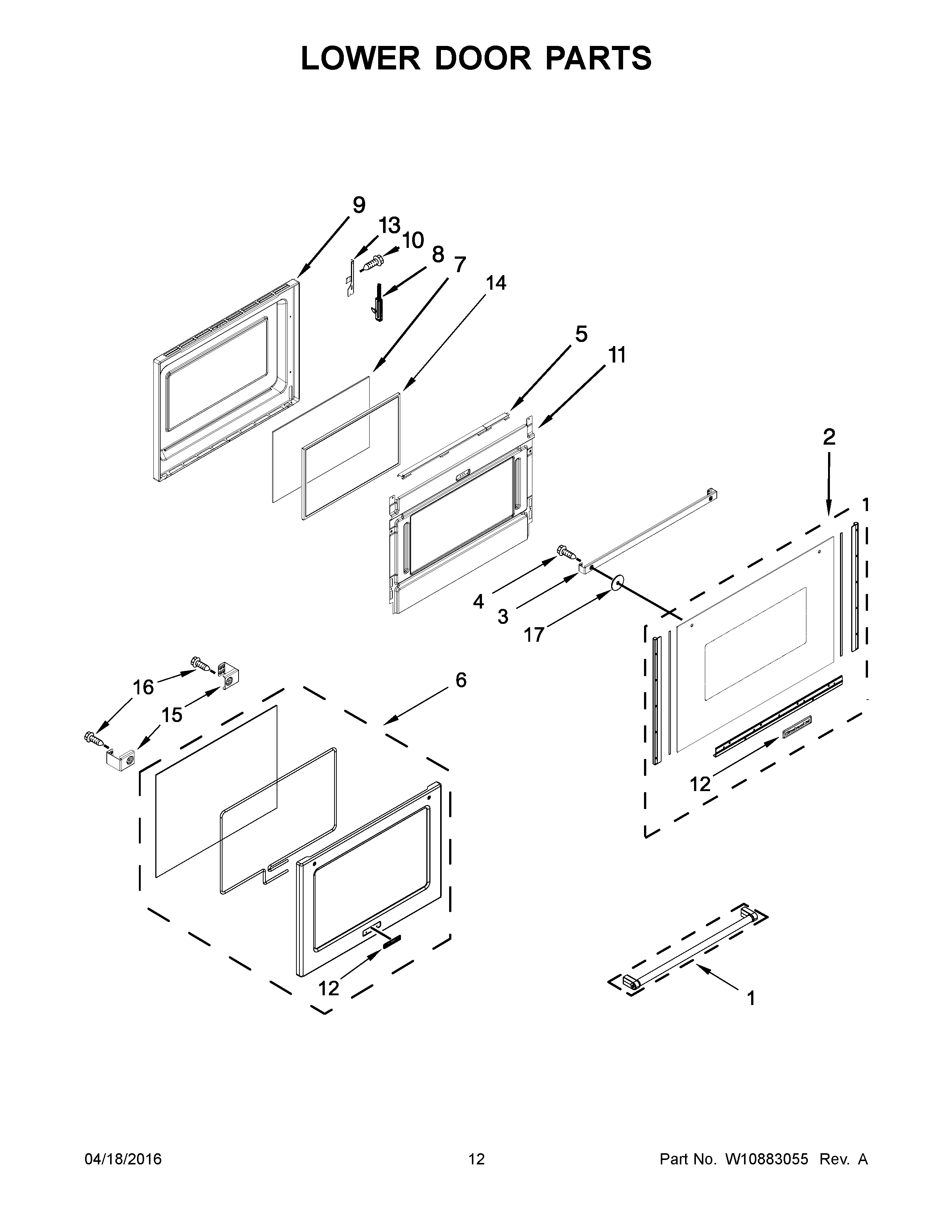

KFED500EWH02 07 – LOWER DOOR PARTS

Products

Position	Product
1	W10674700 Whirlpool Door Handle
1B	W11305108 Whirlpool Door Handle
1A	W10674699 Whirlpool Door Handle
2A	W10789061 Whirlpool Door Glass
2	W10789062 Whirlpool Door Glass
3	WPW10294695 Whirlpool Mounting Bracket
4	WPW10317886 Whirlpool Screw
5	WPW10272594 Whirlpool Window Frame
6	W10777616 Whirlpool Door Glass
7	WP9757706 Whirlpool Door Inner Glass
8A	WPW10335433 Whirlpool Door Hinge
8	WPW10335434 Whirlpool Door Hinge
9	WPW10292008 Whirlpool Door Liner
10	Screw
11	W10340464 Whirlpool Retainer
12	W10839793 Whirlpool Refrigerator Nameplate
13	WPW10272329 Whirlpool Hinge Receptacle
13A	WPW10272328 Whirlpool Hinge Receptacle
14	INSULATION, DOOR
15	W10645182 Whirlpool Mounting Bracket
16	W10831019 Whirlpool Stove Door Screw
17	WASHER, FIBER
