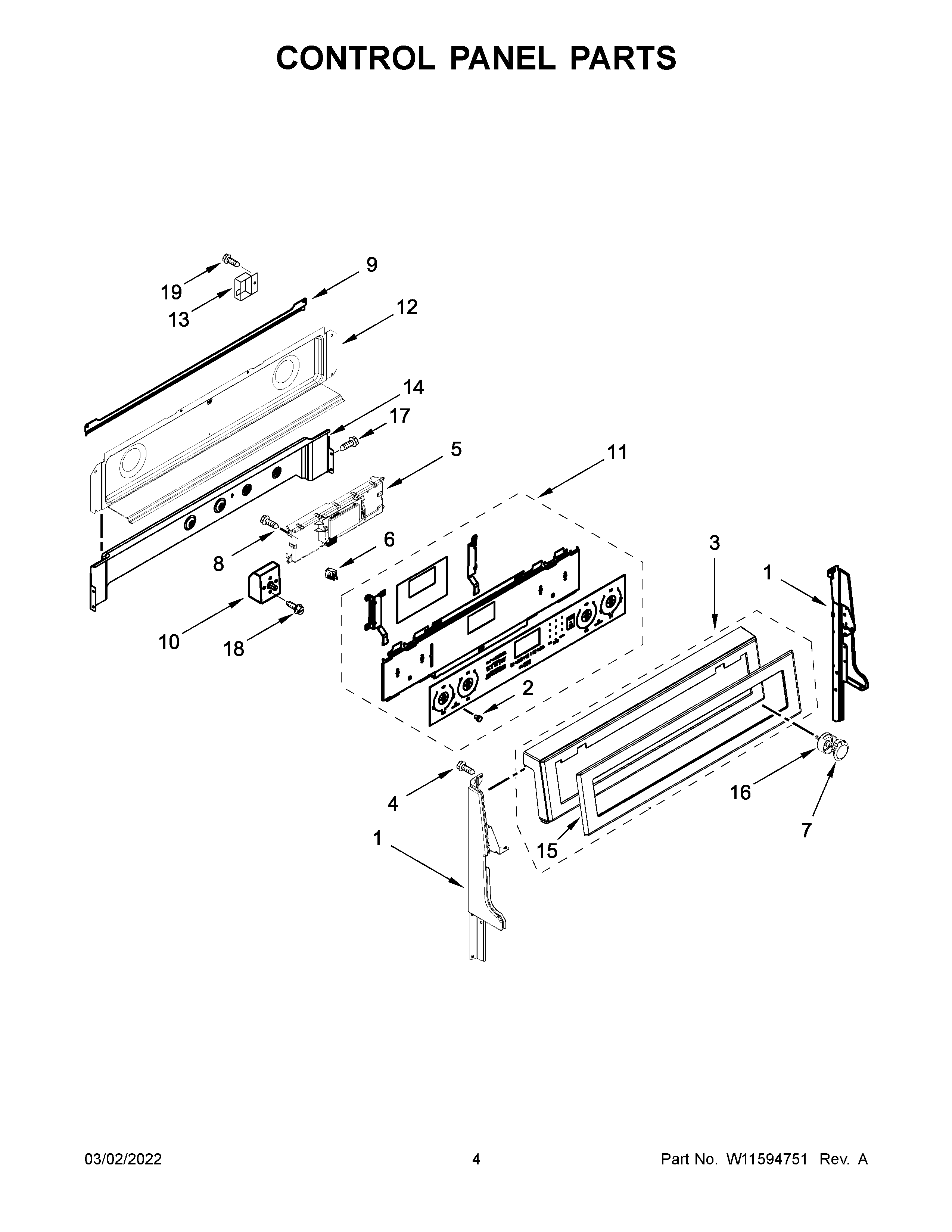

KFED500EWH05 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W10319112 Whirlpool Panel Endcap
1	W10319110 Whirlpool Endcap Panel
1C	SUPPORT, BACK GUARD (RIGHT HAND)
1B	W10319109 Whirlpool Endcap Panel
2	WP3196068 Whirlpool Light Lens
3A	W11164063 Whirlpool Control Panel
3	W10645847 Whirlpool Control Panel
4	SCREW
5	W11594150-includeCORE Whirlpool W11594150 Refrigerator Electronic Control Board with Core
6	Light, Indicator
7	KNOB
8	SCREW
10A	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
10	WPW10296657 Whirlpool Infinite Switch (Left Front)
10B	WPW10312185 Whirlpool Infinite Switch
10C	SWITCH, INFINITE (RIGHT REAR)
11A	W11527486 Whirlpool Control Panel
11	ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (WHITE)
12	W10776098 Whirlpool Rear Cover
13	8285593 Whirlpool Oven Wire Cover
14	W10278697 Whirlpool Vent Shield Assembly
15	CABINET (NOT A SERVICEABLE PART)
16	W11368920 Whirlpool Knob Bezel
17	W11245710 Whirlpool Refrigerator Screw
18	W10674068 Whirlpool Screw
19	SCREW
