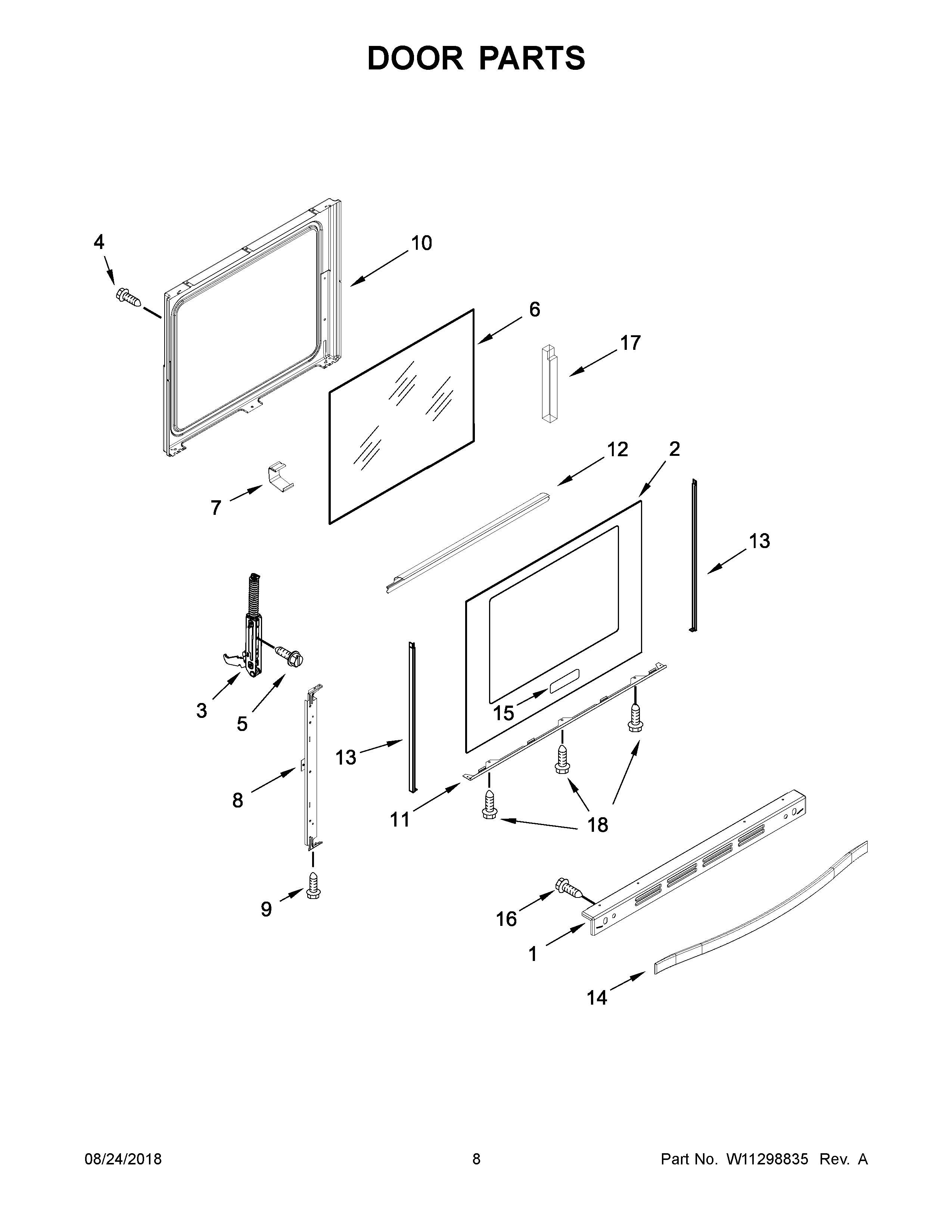

KFEG500EBL3 05 – DOOR PARTS

Products

Position	Product
1A	W10294855 Whirlpool Vent Trim
1	WPW10335331 Whirlpool Trim Vent
2A	W10804365 Whirlpool Outer Door Glass
2	WPW10495962 Whirlpool Door Panel
3	WPW10440013 Whirlpool Door Hinge
4	WPW10031790 Whirlpool Screw
5	SCREW
6	WPW10300487 Whirlpool Door Glass
7	W10137382 Whirlpool Clip
8	W11116956 Whirlpool Support Bracket
9	SCREW
10	WPW10297318 Whirlpool Door Liner
11	WPW10333990 Whirlpool Glass Bracket
11A	W10334031 Whirlpool Glass Bracket
12	W10294853 Whirlpool Mounting Bracket
13A	W10334004 Whirlpool Door Trim
13	W10334003 Whirlpool Door Trim
14	W11104399 Whirlpool Door Handle
15	W10839793 Whirlpool Refrigerator Nameplate
16	W10831019 Whirlpool Stove Door Screw
17	W11688565 Whirlpool Insulation
18	WP355214 Whirlpool Screw
