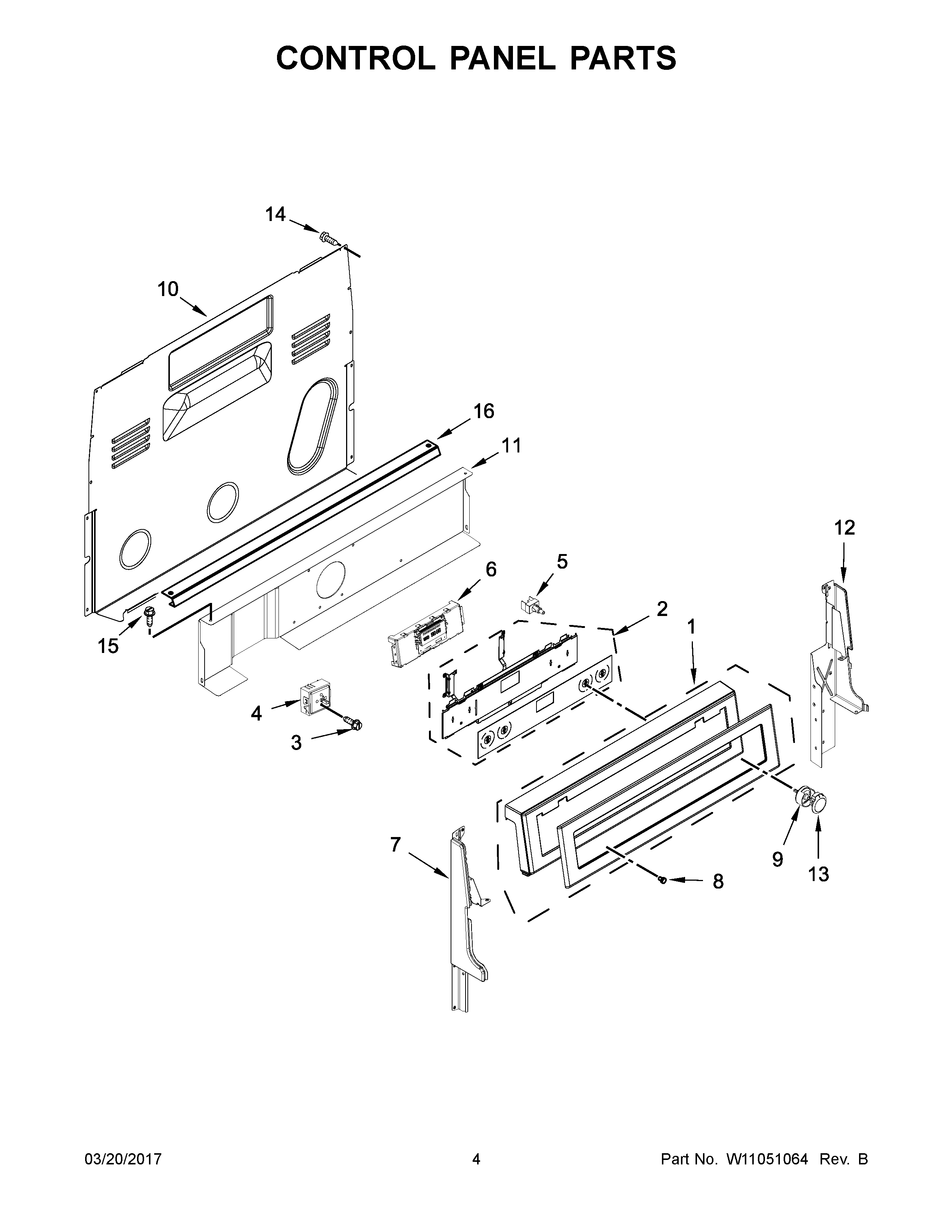

KFEG500EBS1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11084228 Whirlpool Control Panel
2	W11678110 Whirlpool Membrane Switch
3	WP3400882 Whirlpool Screw
4B	W10911303 Whirlpool Infinite Switch
4	SWITCH-INF
4A	W10917724 Whirlpool Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	W11088877 Whirlpool Electronic Control Board + Core
7	W11219664 Whirlpool Endcap Panel
8	WP3196068 Whirlpool Light Lens
9	W11368920 Whirlpool Knob Bezel
10	WP8272473 Whirlpool Rear Cover
11	W10134247 Whirlpool Heat Shield
12	W11219665 Whirlpool Panel Endcap
13	W10915061 Whirlpool Knob
14	SCREW
16	W10525121 Whirlpool Control Bracket
