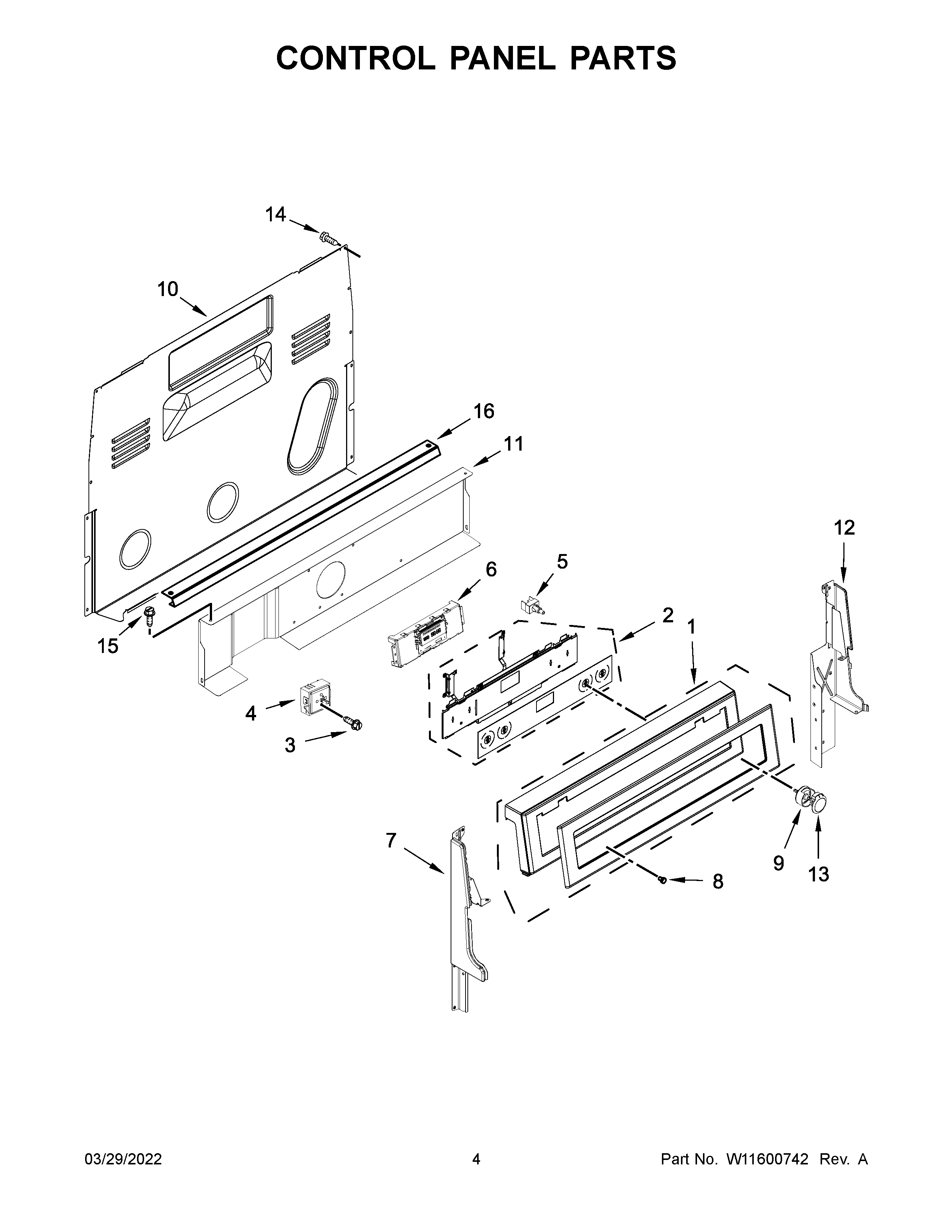

KFEG500EBS6 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11084228 Whirlpool Control Panel
2W11527488 Whirlpool Membrane Switch
3W10674068 Whirlpool Screw
4BW10911303 Whirlpool Infinite Switch
4SWITCH-INF
4AW10917724 Whirlpool Infinite Switch
5WP8523265 Whirlpool Indicator Light
6W11088877 Whirlpool Electronic Control Board + Core
7W11219664 Whirlpool Endcap Panel
8WP3196068 Whirlpool Light Lens
9W11368920 Whirlpool Knob Bezel
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
12W11219665 Whirlpool Panel Endcap
13W10915061 Whirlpool Knob
14SCREW
16W10525121 Whirlpool Control Bracket
