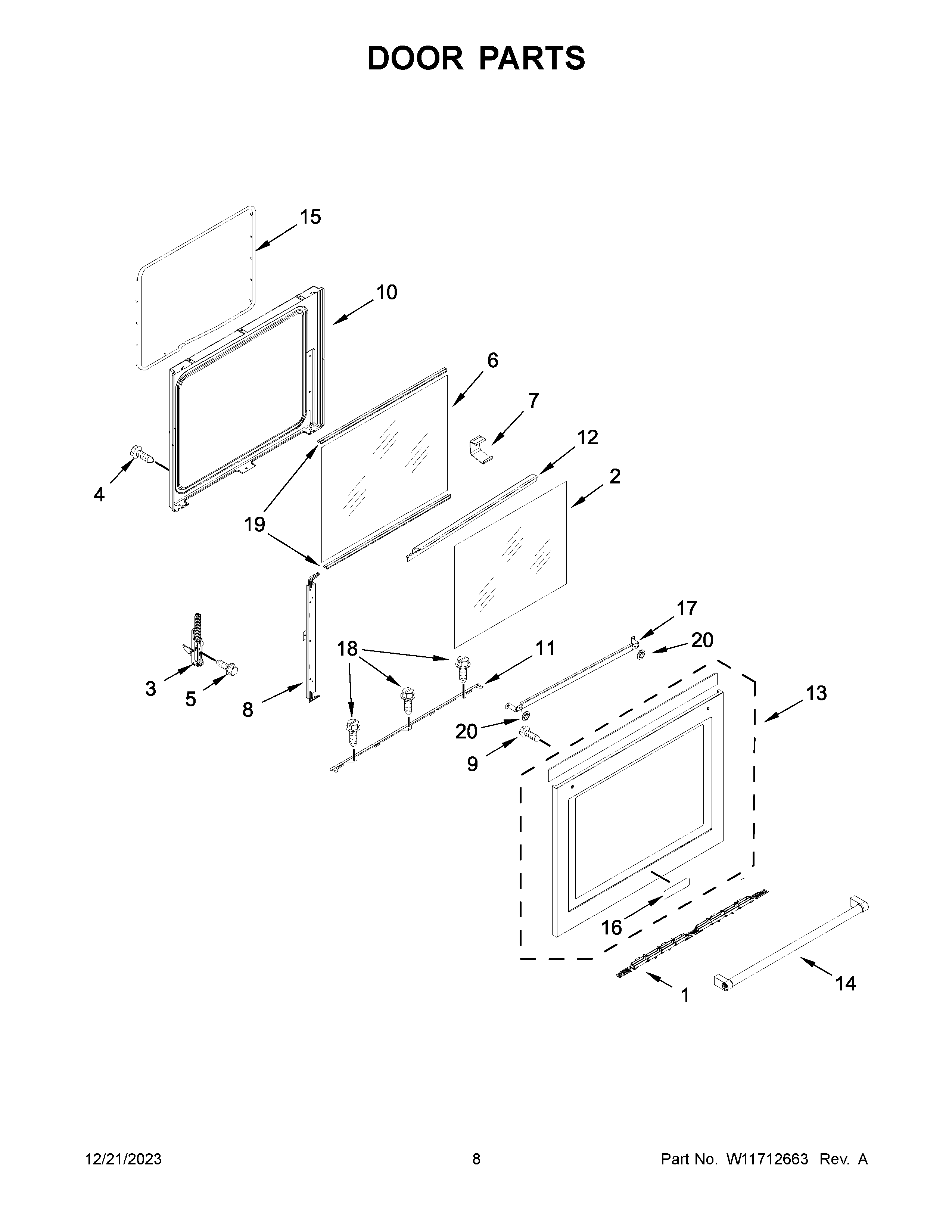

KFEG500EBS7 05 – DOOR PARTS

Products

Position	Product
1	BOTTOM, DOOR COVER
2	W11028218 Whirlpool Door Glass
3	W11162113 Whirlpool Door Hinge
4	WPW10031790 Whirlpool Screw
5	SCREW
6	W11339500 Whirlpool Door Glass
7	W10137382 Whirlpool Clip
8	W11744483 Whirlpool Support
9	SCREW
10	W10902192 Whirlpool Door Liner
11	W10813140 Whirlpool Glass Bracket
12	W11251351 Whirlpool Vent Trim
13	W11084232 Whirlpool Door Glass
14	W11104399 Whirlpool Door Handle
15	W11562931 Whirlpool Door Gasket
16	W10839793 Whirlpool Refrigerator Nameplate
17	W10541911 Whirlpool Mounting Bracket
18	W11245710 Whirlpool Refrigerator Screw
19	W11673273 Whirlpool Spacer Glass
20	W11676355 Whirlpool Washer
