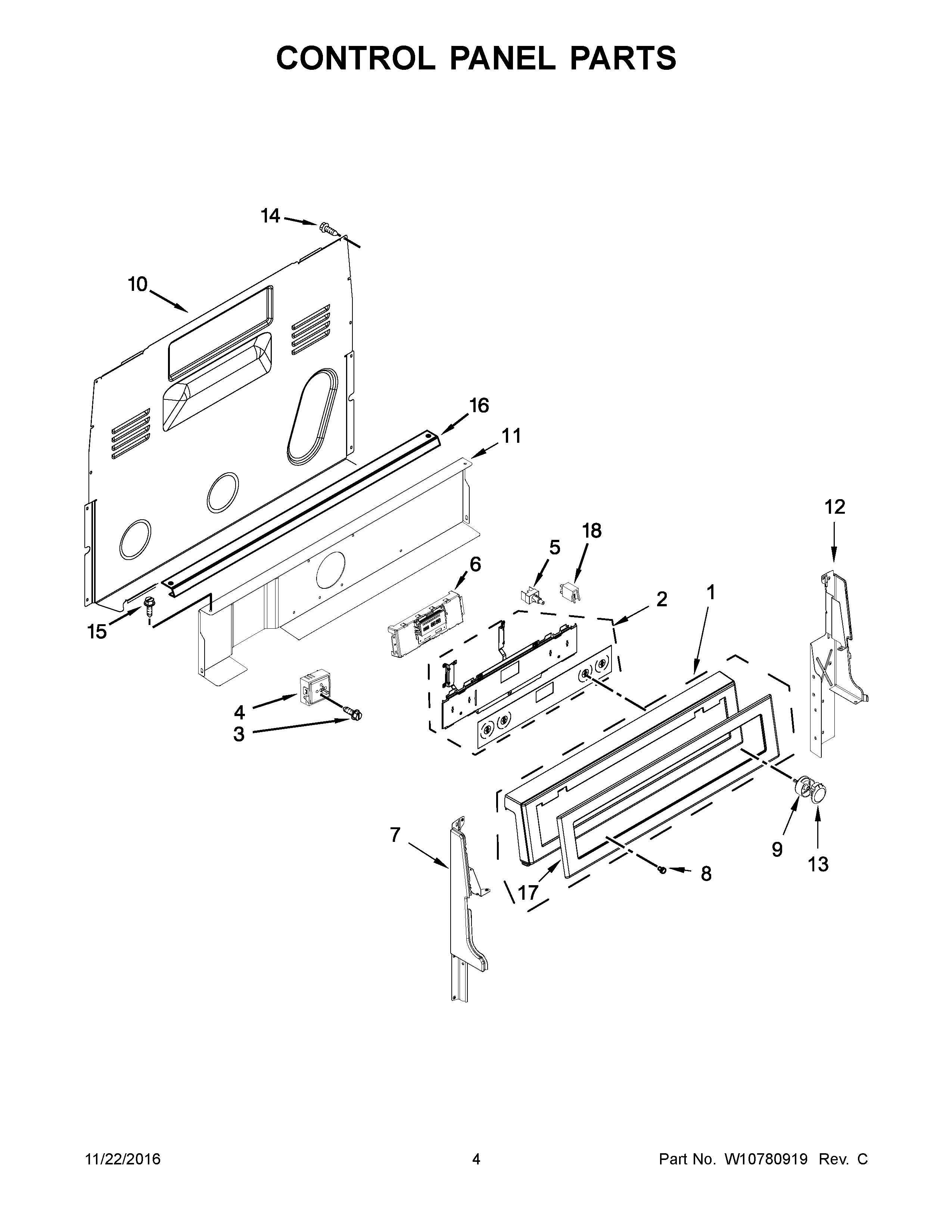

KFEG500ESS0 03 – CONTROL PANEL PARTS

Products

Position	Product
2	W10645817 Whirlpool Membrane Switch
2A	W11678110 Whirlpool Membrane Switch
3	WP3400882 Whirlpool Screw
4B	W10911303 Whirlpool Infinite Switch
4	SWITCH-INF
4A	W10917724 Whirlpool Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	W11088877 Whirlpool Electronic Control Board + Core
7A	W11219664 Whirlpool Endcap Panel
7	W11219365 Whirlpool Panel Endcap
8	WP3196068 Whirlpool Light Lens
9	W11368920 Whirlpool Knob Bezel
10	WP8272473 Whirlpool Rear Cover
11	W10134247 Whirlpool Heat Shield
12A	W11219665 Whirlpool Panel Endcap
12	W11219370 Whirlpool Endcap Panel
13	W10915061 Whirlpool Knob
14	SCREW
16	W10525121 Whirlpool Control Bracket
17B	W11164063 Whirlpool Control Panel
17	W10645847 Whirlpool Control Panel
17A	W10645846 Whirlpool Control Panel
