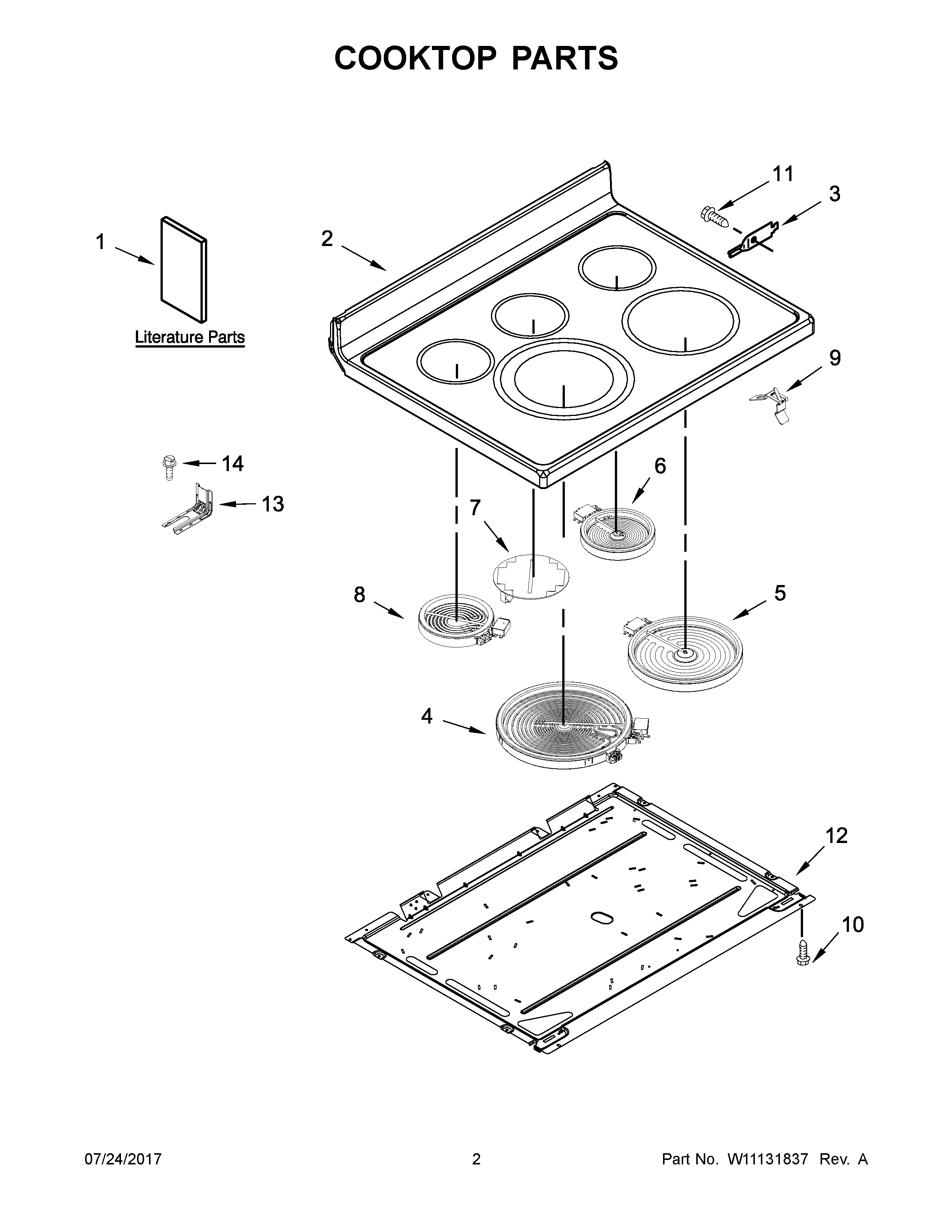

KFEG500ESS2 02 – COOKTOP PARTS

Products

PositionProduct
NIW10349716 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW11188432 Whirlpool Wire Harness
NIW11212183 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
NIW11134550 Whirlpool Wire Harness
1USE AND CARE GUIDE
1BTECH SHEET
1CINSTALLATION INSTRUCTIONS
1AQUICK START GUIDE
1DSAFER COOKING TIPS (ENGLISH
2W10804319 Whirlpool Cooktop
3WP3195060 Whirlpool Cooktop Pin
4W10823727 Whirlpool Stove Right Front Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
6ELMNT-SURF
7W11041453 Whirlpool Surface Element
8WPW10342780 Whirlpool Surface Element
9WPW10225448 Whirlpool Spring Assembly
10WP3196557 Whirlpool Screw
11SCREW
12PAN
13W11447673 Whirlpool Range Tip Anchor
14SCREW, ANTI-TIP KIT
