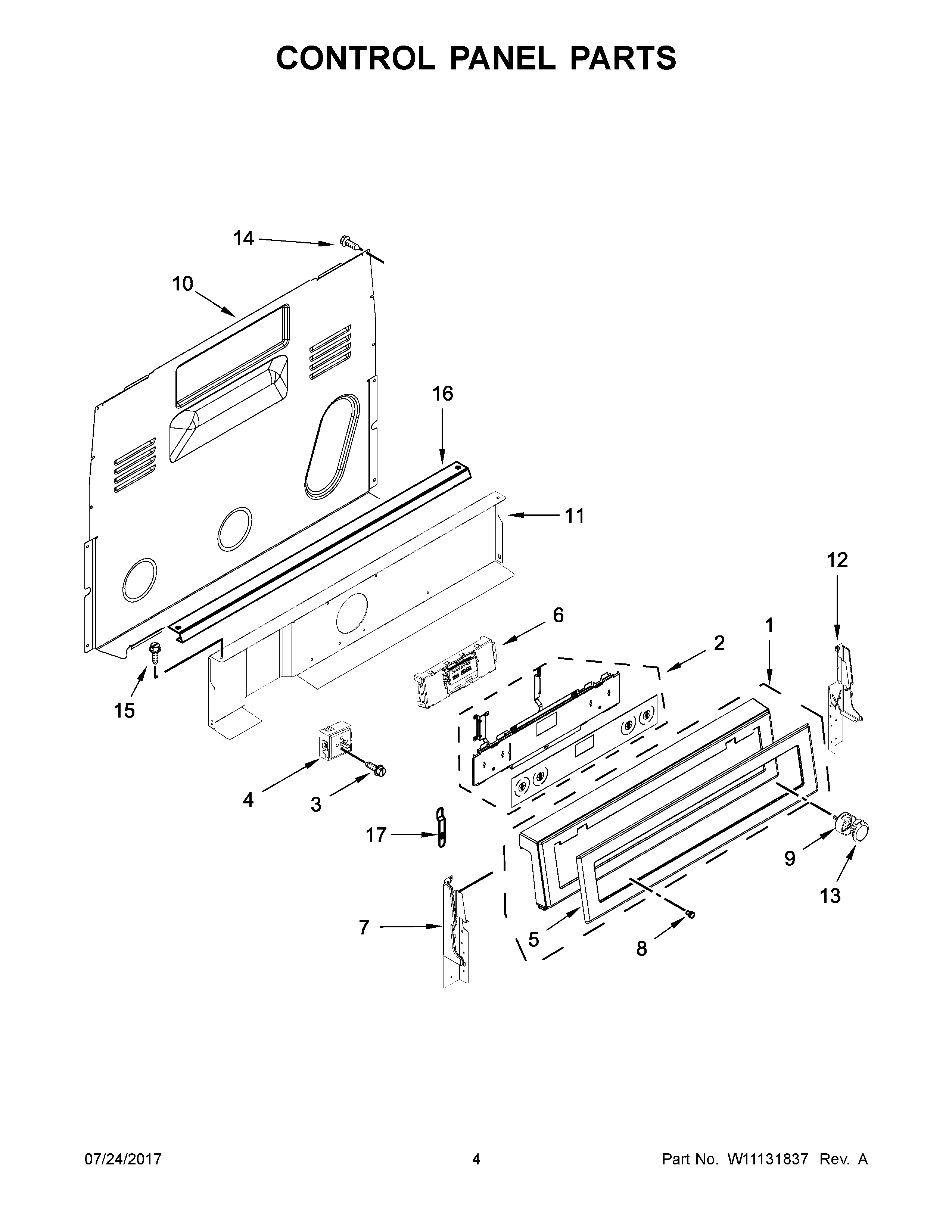

KFEG500ESS2 03 – CONTROL PANEL PARTS

KFEG500ESS2 03 – CONTROL PANEL PARTS

Written by

in

KFEG500ESS2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11164063 Whirlpool Control Panel
2W11678110 Whirlpool Membrane Switch
3W11245710 Whirlpool Refrigerator Screw
4BW10911303 Whirlpool Infinite Switch
4SWITCH-INF
4AW10917724 Whirlpool Infinite Switch
5CABINET (NOT A SERVICEABLE PART)
6W11088877 Whirlpool Electronic Control Board + Core
7W11404310 Whirlpool Panel Endcap
8WP3196068 Whirlpool Light Lens
9W11368920 Whirlpool Knob Bezel
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
12W10409003 Whirlpool Endcap Panel
13W10915061 Whirlpool Knob
14SCREW
16W10525121 Whirlpool Control Bracket
173196200 Whirlpool Clip
