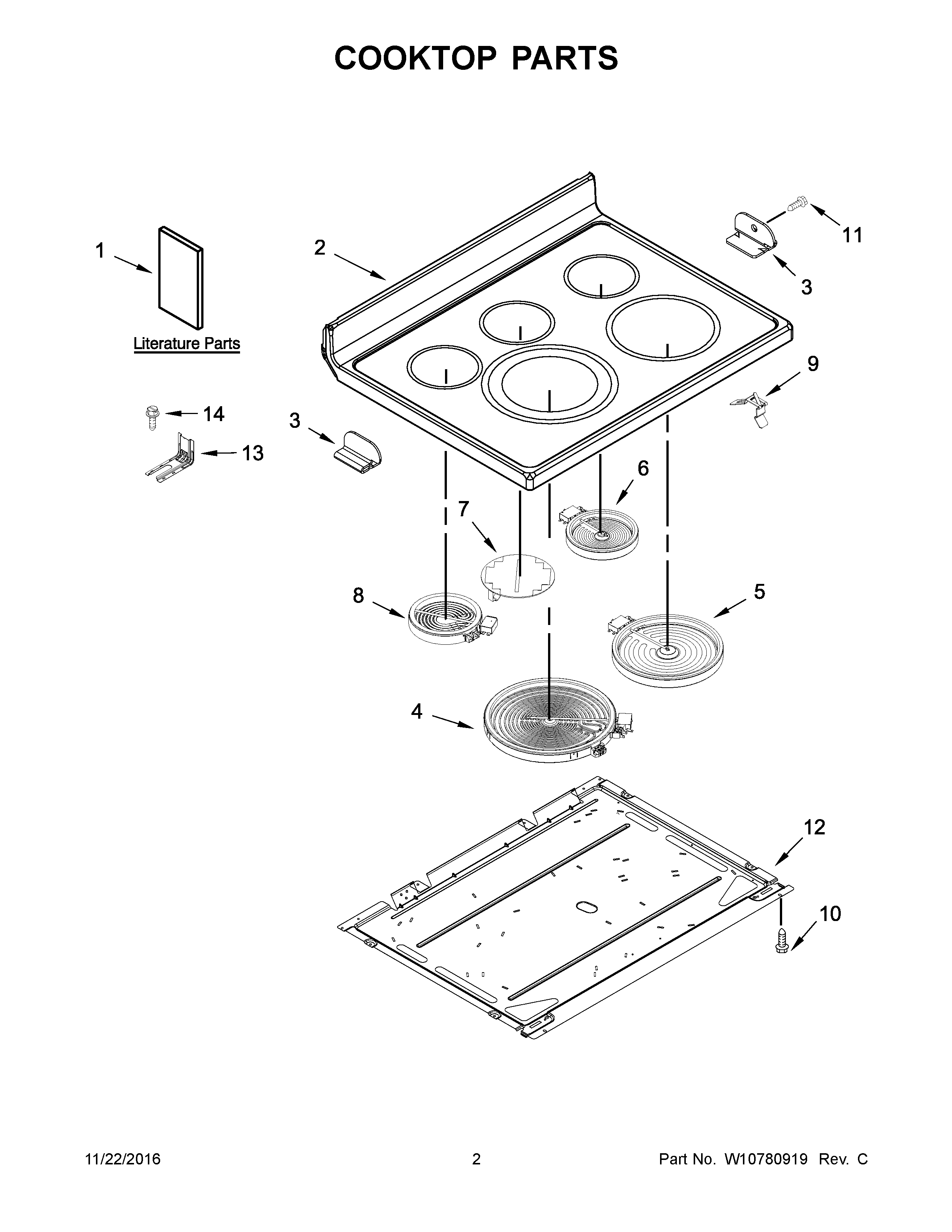

KFEG500EWH0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11188432 Whirlpool Wire Harness
NI	W11212183 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
NI	W11134550 Whirlpool Wire Harness
NI	W10349716 Whirlpool Wire Harness
1C	INSTALLATION INSTRUCTIONS
1D	SAFER COOKING TIPS (ENGLISH
1A	QUICK START GUIDE
1	USE AND CARE GUIDE
1B	TECH SHEET
2	W10794931 Whirlpool Cooktop Assembly
2A	W10794932 Whirlpool Oven Cooktop
2B	W10804319 Whirlpool Cooktop
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W10823727 Whirlpool Stove Right Front Surface Element
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11041453 Whirlpool Surface Element
8	WPW10342780 Whirlpool Surface Element
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196557 Whirlpool Screw
11	3196172 Whirlpool Oven Screw
12	PAN
13	W11447673 Whirlpool Range Tip Anchor
14	SCREW, ANTI-TIP KIT
