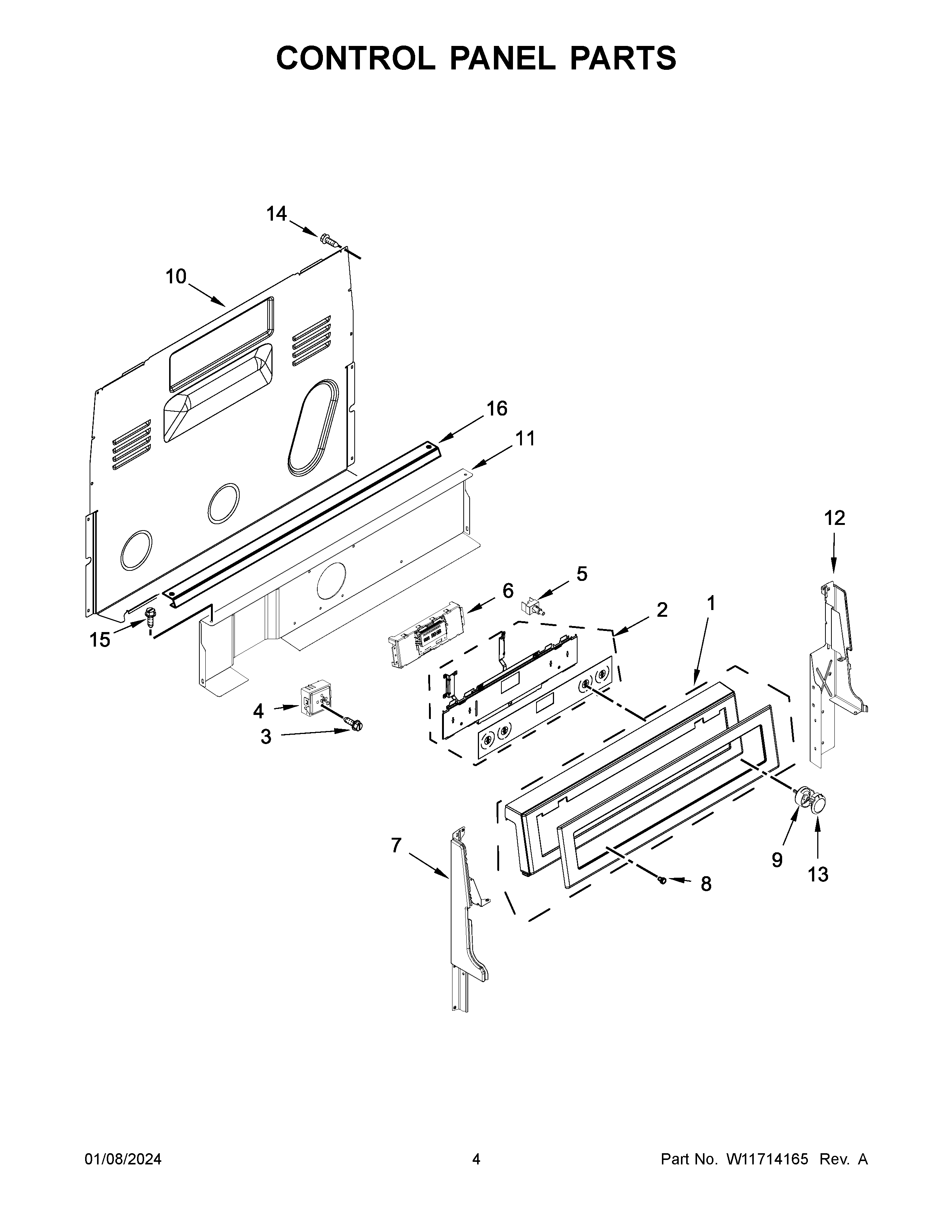

KFEG500EWH7 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W10645847 Whirlpool Control Panel
2	W11527493 Whirlpool Membrane Switch
3	W11245710 Whirlpool Refrigerator Screw
4B	W10911303 Whirlpool Infinite Switch
4	SWITCH-INF
4A	W10917724 Whirlpool Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	W11088877 Whirlpool Electronic Control Board + Core
7	W11219365 Whirlpool Panel Endcap
8	WP3196068 Whirlpool Light Lens
9	W11368920 Whirlpool Knob Bezel
10	WP8272473 Whirlpool Rear Cover
11	W10134247 Whirlpool Heat Shield
12	W11219370 Whirlpool Endcap Panel
13	W10915061 Whirlpool Knob
14	SCREW
16	W10525121 Whirlpool Control Bracket
