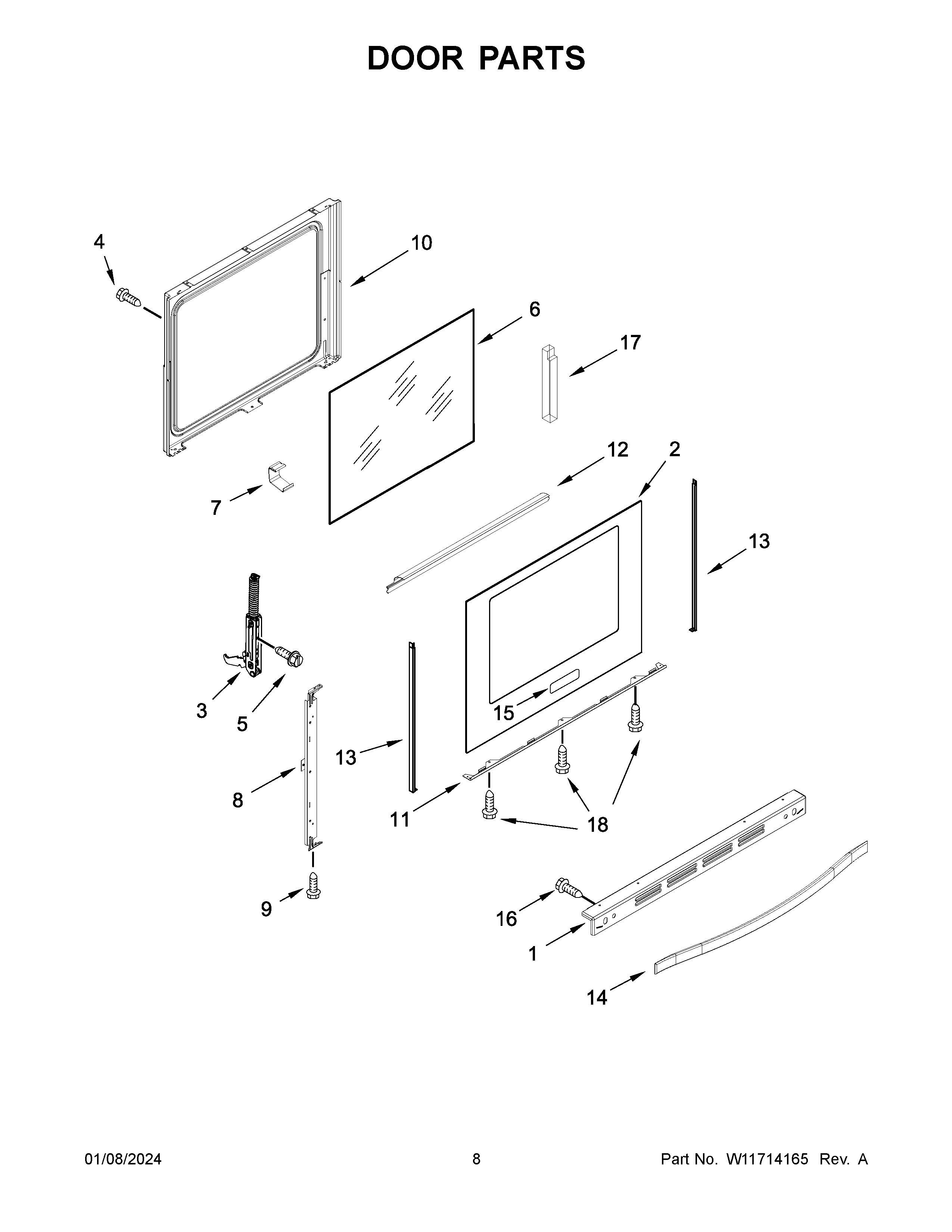

KFEG500EWH7 05 – DOOR PARTS

KFEG500EWH7 05 – DOOR PARTS

Written by

in

KFEG500EWH7 05 – DOOR PARTS

Products

PositionProduct
1WPW10335331 Whirlpool Trim Vent
2WPW10495962 Whirlpool Door Panel
3WPW10440013 Whirlpool Door Hinge
4WPW10031790 Whirlpool Screw
5SCREW
6WPW10300487 Whirlpool Door Glass
7W10137382 Whirlpool Clip
8W11116956 Whirlpool Support Bracket
9SCREW
10WPW10297318 Whirlpool Door Liner
11WPW10333990 Whirlpool Glass Bracket
12W10294853 Whirlpool Mounting Bracket
13W10334003 Whirlpool Door Trim
14W11104399 Whirlpool Door Handle
15W10839793 Whirlpool Refrigerator Nameplate
16W10831019 Whirlpool Stove Door Screw
17W11688565 Whirlpool Insulation
18WP355214 Whirlpool Screw
