KFEG504KPS3 02 – COOKTOP PARTS

KFEG504KPS3 02 – COOKTOP PARTS

Written by

in

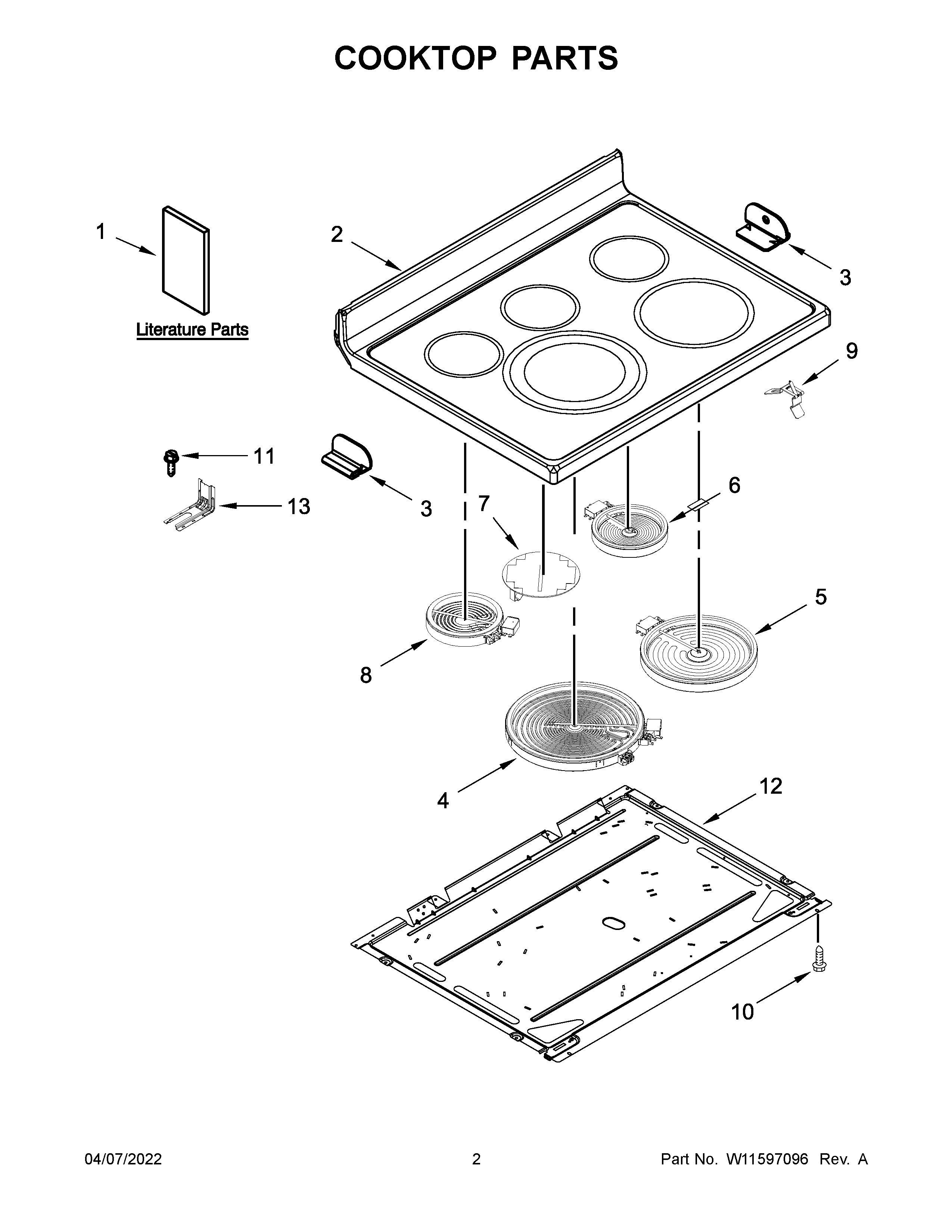

KFEG504KPS3 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11454490 Whirlpool Wire Harness
NIW11188424 Whirlpool Wire Harness
NIW11212183 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
NIW11134550 Whirlpool Wire Harness
1BTECH SHEET
1OWNER'S MANUAL
1AQUICK START GUIDE
2W10794932 Whirlpool Oven Cooktop
3AW10607642 Whirlpool Clip
3W10607641 Whirlpool Clip
4W10823727 Whirlpool Stove Right Front Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
6ELMNT-SURF
7W11041453 Whirlpool Surface Element
8WPW10342780 Whirlpool Surface Element
9WPW10225448 Whirlpool Spring Assembly
10WP3196557 Whirlpool Screw
11SCREW, ANTI-TIP KIT
12PAN
13W11447673 Whirlpool Range Tip Anchor
