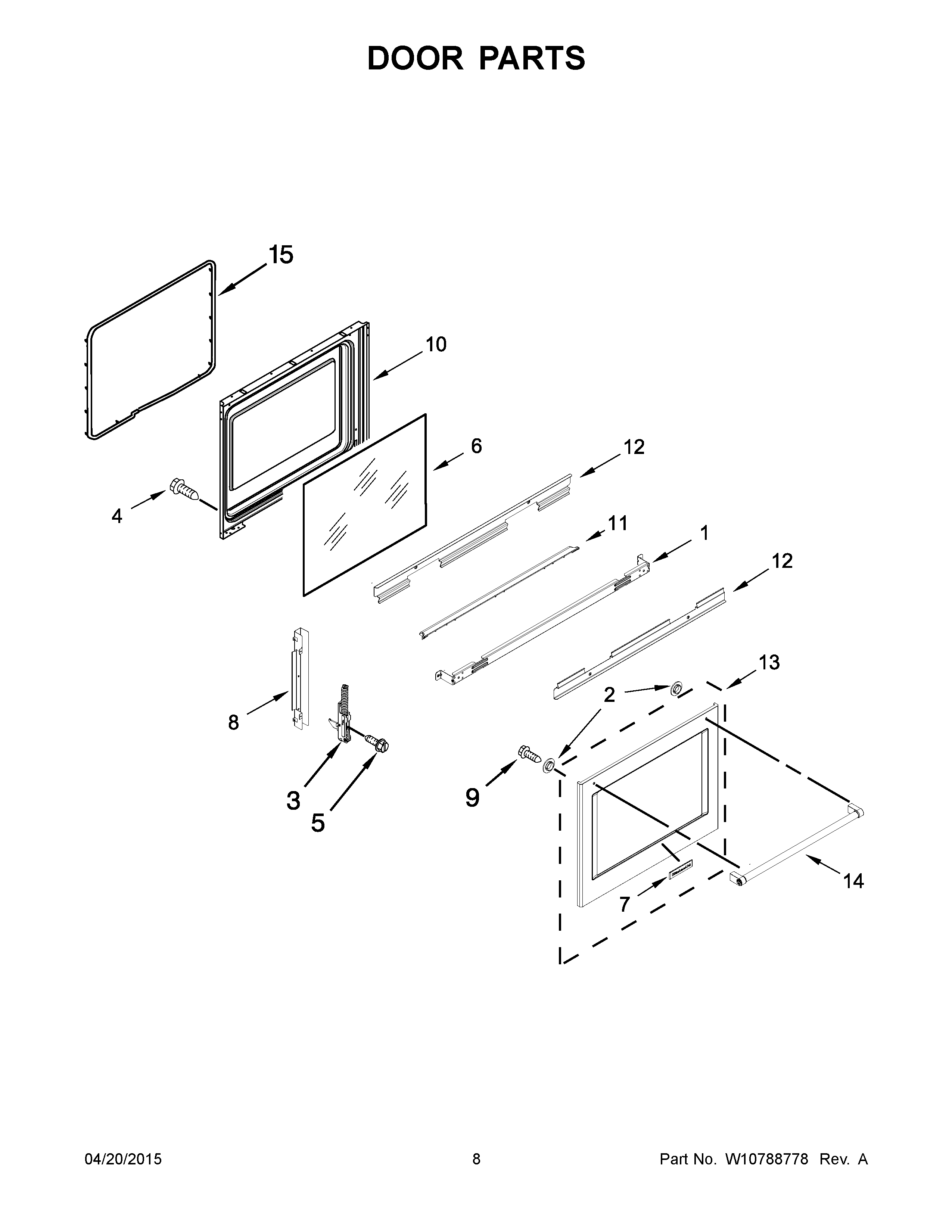

KFES530ESS0 05 – DOOR PARTS

KFES530ESS0 05 – DOOR PARTS

Written by

in

KFES530ESS0 05 – DOOR PARTS

Products

PositionProduct
1W10541911 Whirlpool Mounting Bracket
2W11676355 Whirlpool Washer
3WPW10440013 Whirlpool Door Hinge
4WPW10031790 Whirlpool Screw
5SCREW
6WPW10541888 Whirlpool Door Glass
7W10839793 Whirlpool Refrigerator Nameplate
8W10541883 Whirlpool Support
9SCREW
10LINER, DOOR
11W11251351 Whirlpool Vent Trim
12SUPPORT, GLASS
13W10906445 Whirlpool Door Glass
14W11104399 Whirlpool Door Handle
15W11562931 Whirlpool Door Gasket
