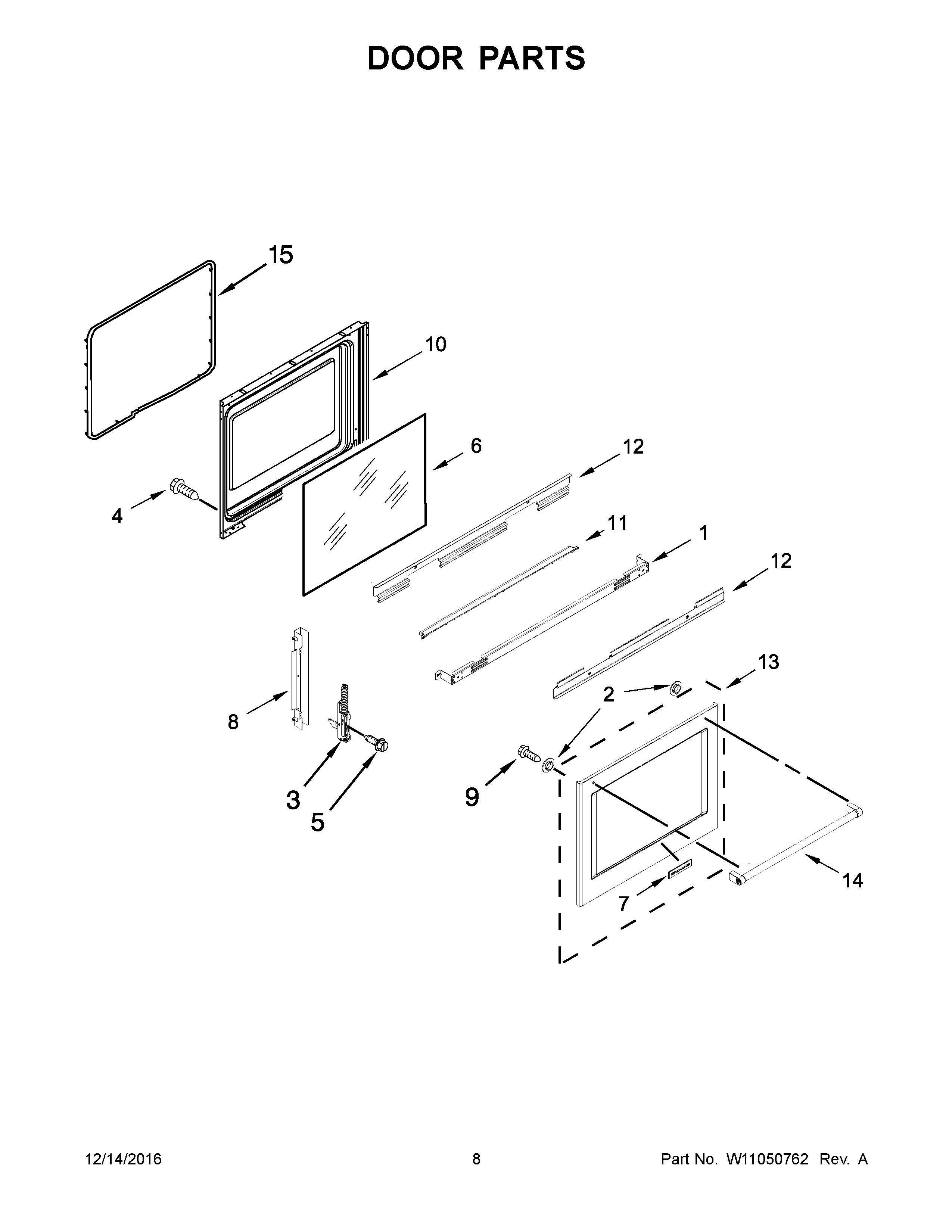

KFES530ESS1 05 – DOOR PARTS

Products

PositionProduct
1W10541911 Whirlpool Mounting Bracket
2W11676355 Whirlpool Washer
3W11162113 Whirlpool Door Hinge
4WPW10031790 Whirlpool Screw
5SCREW
6W11339500 Whirlpool Door Glass
7W10839793 Whirlpool Refrigerator Nameplate
8W11744483 Whirlpool Support
9SCREW
10W10902192 Whirlpool Door Liner
11W11251351 Whirlpool Vent Trim
12W10813140 Whirlpool Glass Bracket
13W10906445 Whirlpool Door Glass
14W11104399 Whirlpool Door Handle
15W11562931 Whirlpool Door Gasket
