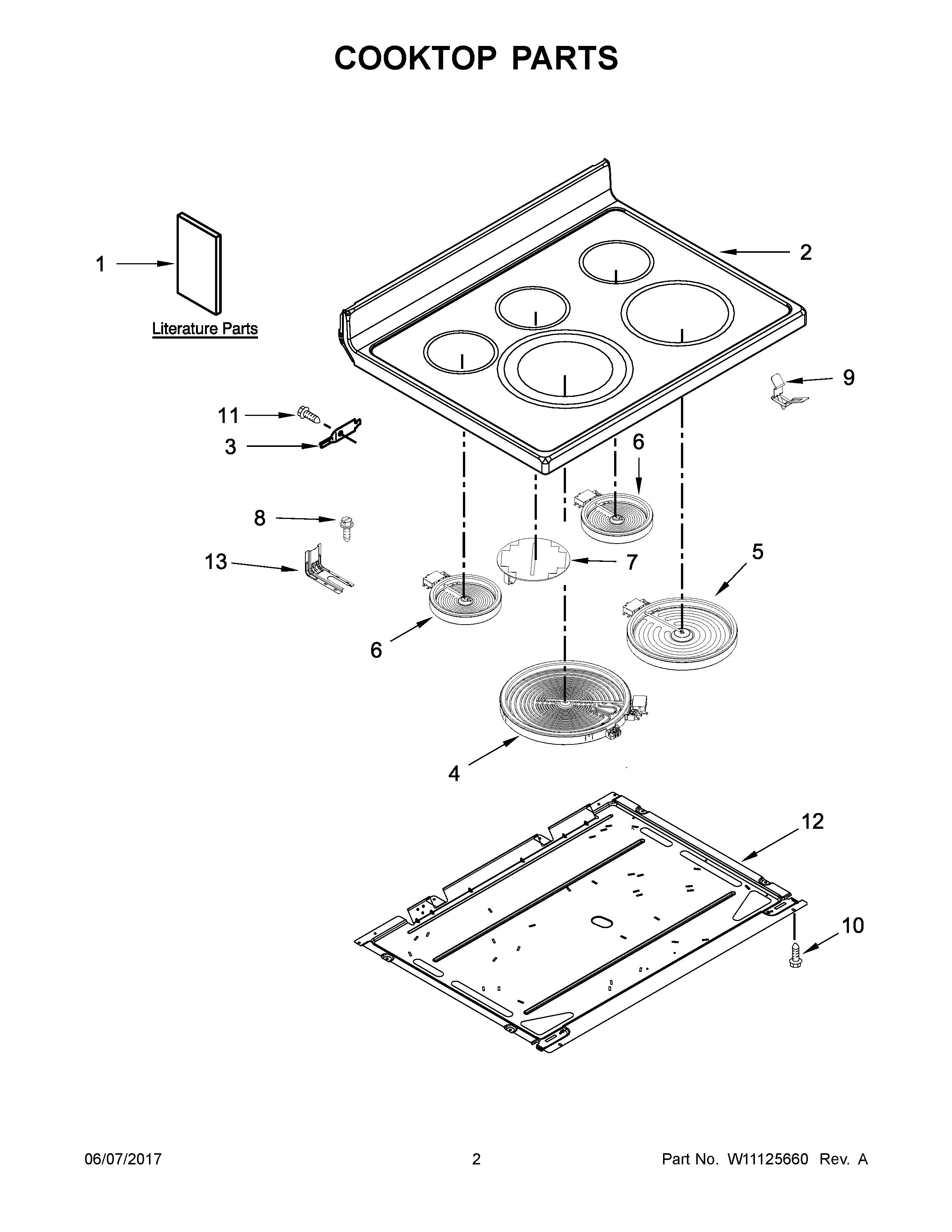

KFES530ESS2 02 – COOKTOP PARTS

KFES530ESS2 02 – COOKTOP PARTS

Written by

in

KFES530ESS2 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10349691 Whirlpool Wire Harness
NIW10349690 Whirlpool Wire Harness
NIW10349733 Whirlpool Wire Harness
NIW10324946 Whirlpool Wire Harness
NIW10629300 Whirlpool Wire Harness
NIW11134592 Whirlpool Wire Harness
1BTECH, SHEET
1CINSTALLATION INSTRUCTIONS
1USER, INSTRUCTIONS
1DSAFER COOKING TIPS (ENGLISH
1AQUICK START GUIDE
2W10798166 Whirlpool Cooktop
3WP3195060 Whirlpool Cooktop Pin
4WPW10298145 Whirlpool Surface Element
5WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
6ELMNT-SURF
7W11041453 Whirlpool Surface Element
8SCREW, ANTI-TIP KIT
9WPW10225448 Whirlpool Spring Assembly
10WP3196557 Whirlpool Screw
113196172 Whirlpool Oven Screw
12PAN
13W11447673 Whirlpool Range Tip Anchor
