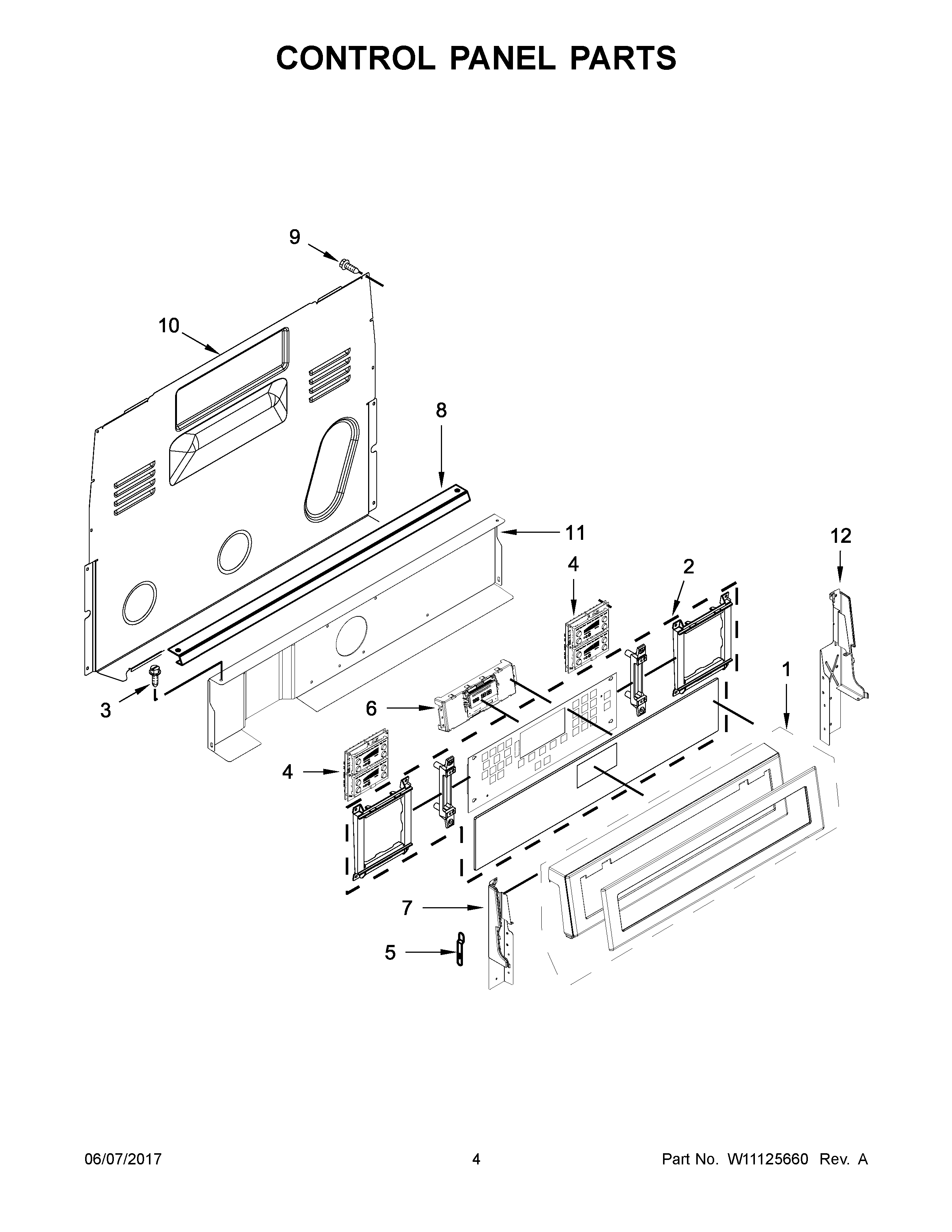

KFES530ESS2 03 – CONTROL PANEL PARTS

KFES530ESS2 03 – CONTROL PANEL PARTS

Written by

in

KFES530ESS2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W11164063 Whirlpool Control Panel
2W11211499 Whirlpool Membrane Switch
4AWPW10553762-includeCORE Whirlpool WPW10553762 Refrigerator Electronic Control Board + Core
4WPW10341243-includeCORE Whirlpool WPW10341243 Washer Electronic Control Board + Core
53196200 Whirlpool Clip
6W11088874-includeCORE Whirlpool W11088874 Refrigerator Electronic Control Board + Core
7W11404310 Whirlpool Panel Endcap
8W10525121 Whirlpool Control Bracket
9SCREW
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
12W10409003 Whirlpool Endcap Panel
