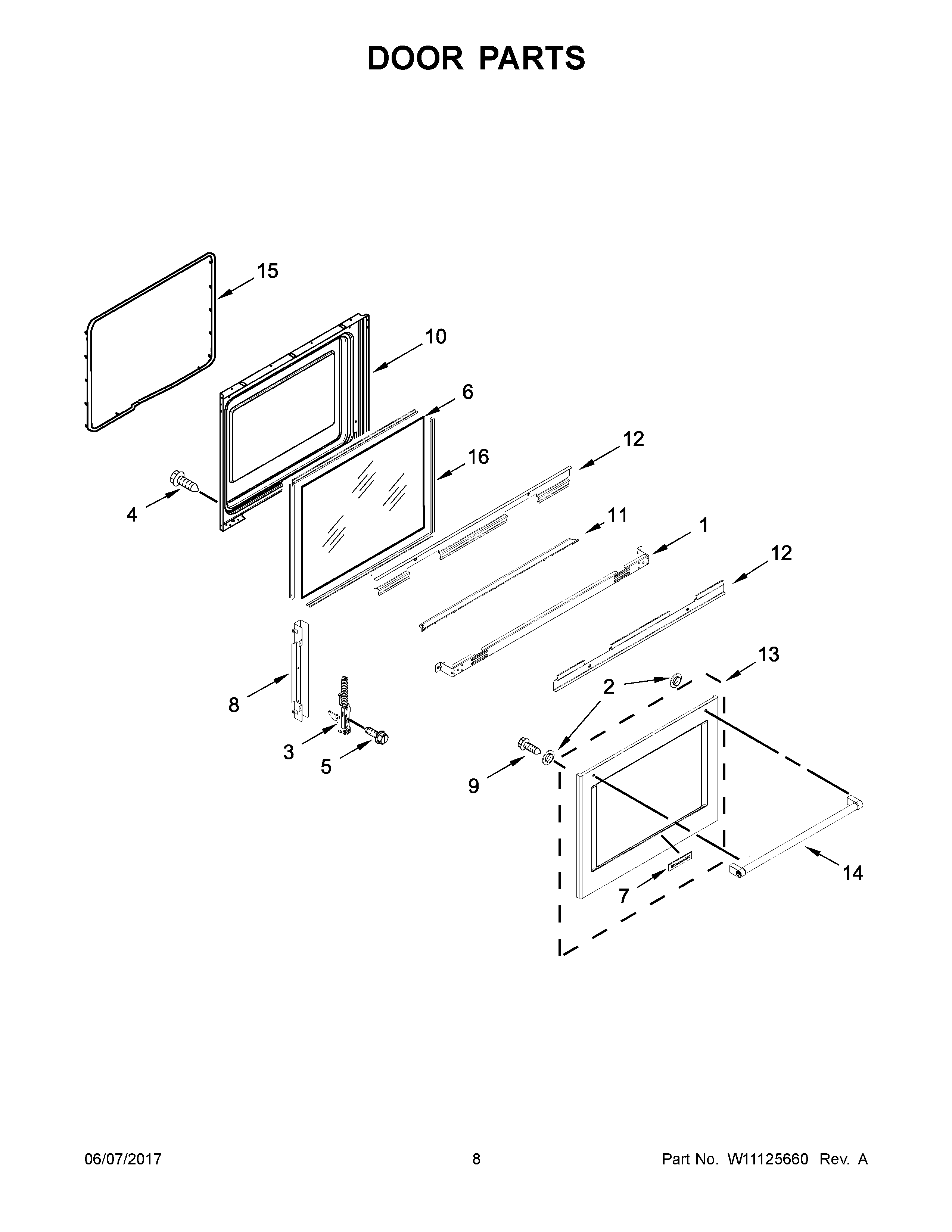

KFES530ESS2 05 – DOOR PARTS

Products

Position	Product
1	W10541911 Whirlpool Mounting Bracket
2	W11676355 Whirlpool Washer
3	W11162113 Whirlpool Door Hinge
4	WPW10031790 Whirlpool Screw
5	SCREW
6	W11339500 Whirlpool Door Glass
7	W10839793 Whirlpool Refrigerator Nameplate
8	W11744483 Whirlpool Support
9	SCREW
10	W10902192 Whirlpool Door Liner
11	W11251351 Whirlpool Vent Trim
12	W10813140 Whirlpool Glass Bracket
13	W10906445 Whirlpool Door Glass
14	W11104399 Whirlpool Door Handle
15	W11562931 Whirlpool Door Gasket
16	W11673273 Whirlpool Spacer Glass
