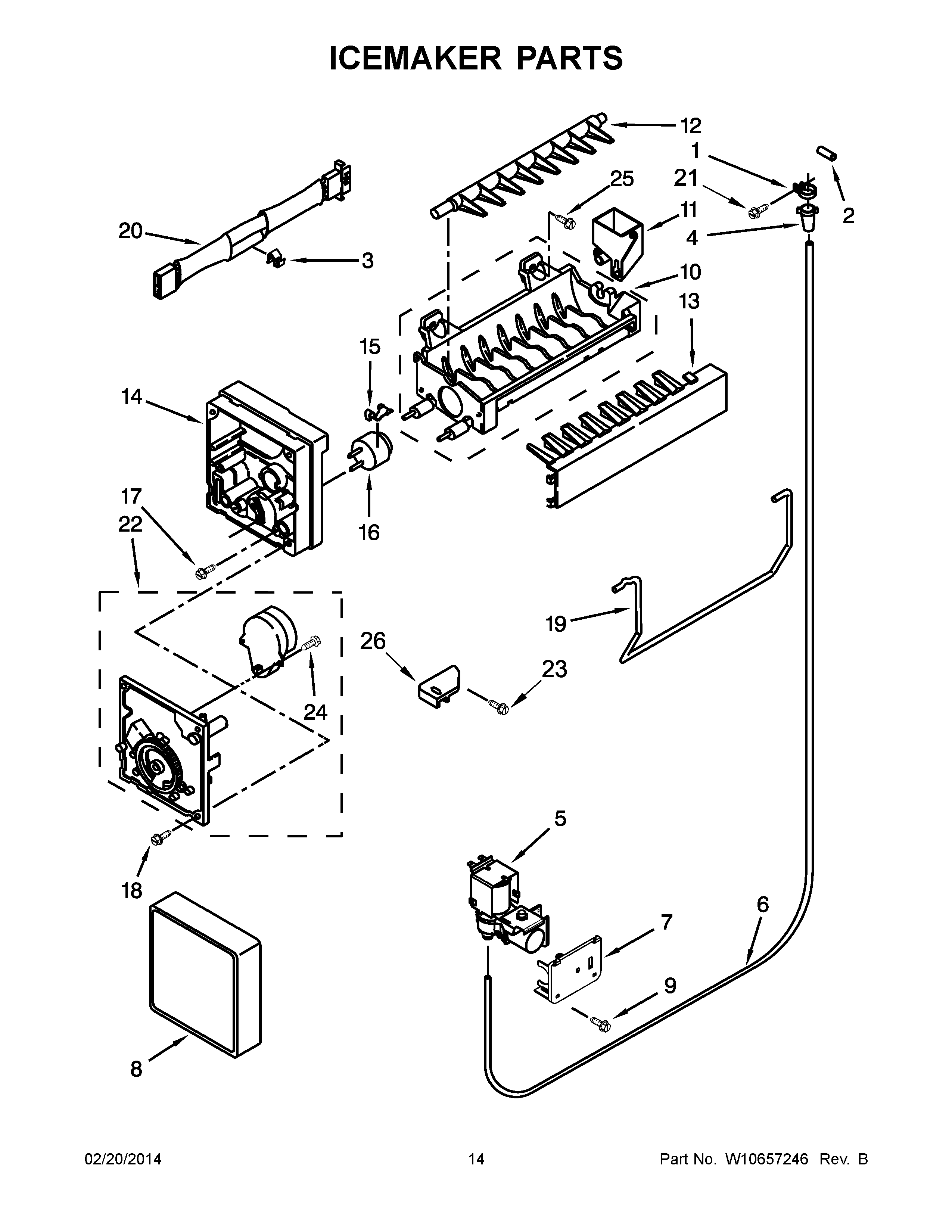

KFFS20EYBL01 08 – ICEMAKER PARTSadmin2025-04-26T12:33:48+00:00KFFS20EYBL01 08 – ICEMAKER PARTS ProductsPositionProduct1W10861184 Whirlpool Refrigerator Clamp2WPW10496649 Whirlpool Refrigerator Water Tube3WP628379 Whirlpool Refrigerator Clip44387491 Whirlpool Refrigerator Insert5VALVE-INLT REFR5WPW10279866 Whirlpool Refrigerator Inlet Valve6WPW10238092 Whirlpool Refrigerator Water Tube7W10847867 Whirlpool Refrigerator Bracket8WPW10289690 Whirlpool Ice Maker Cover9WP489442 Whirlpool Refrigerator Screw10WPW10190929 Whirlpool Refrigerator Ice Maker Mold11W11676540 Whirlpool Refrigerator Cup Fill12WP627843 Whirlpool Refrigerator Ejector Arm13WPW10122563 Whirlpool Refrigerator Stripper Arm14WP2195914 Whirlpool Refrigerator Ice Maker Housing15WP2315522 Whirlpool Refrigerator Clip16WP627985 Whirlpool Icemaker Cycling Thermostat17W10001280 Whirlpool Refrigerator Screw18WP681249 Whirlpool Screw Assembly19WPW10474785 Whirlpool Refrigerator Shut-Off Arm20W11643622 Whirlpool Wire Harness21WP488787 Whirlpool Refrigerator Screw228201515 Whirlpool Refrigerator Motor and Gear Module Kit23WP489478 Whirlpool Refrigerator Screw24489136 Whirlpool Refrigerator Screw25WP488163 Whirlpool Refrigerator Screw26W11500948 Whirlpool Refrigerator Bracket1004317943 Whirlpool Refrigerator Ice Maker Assembly
