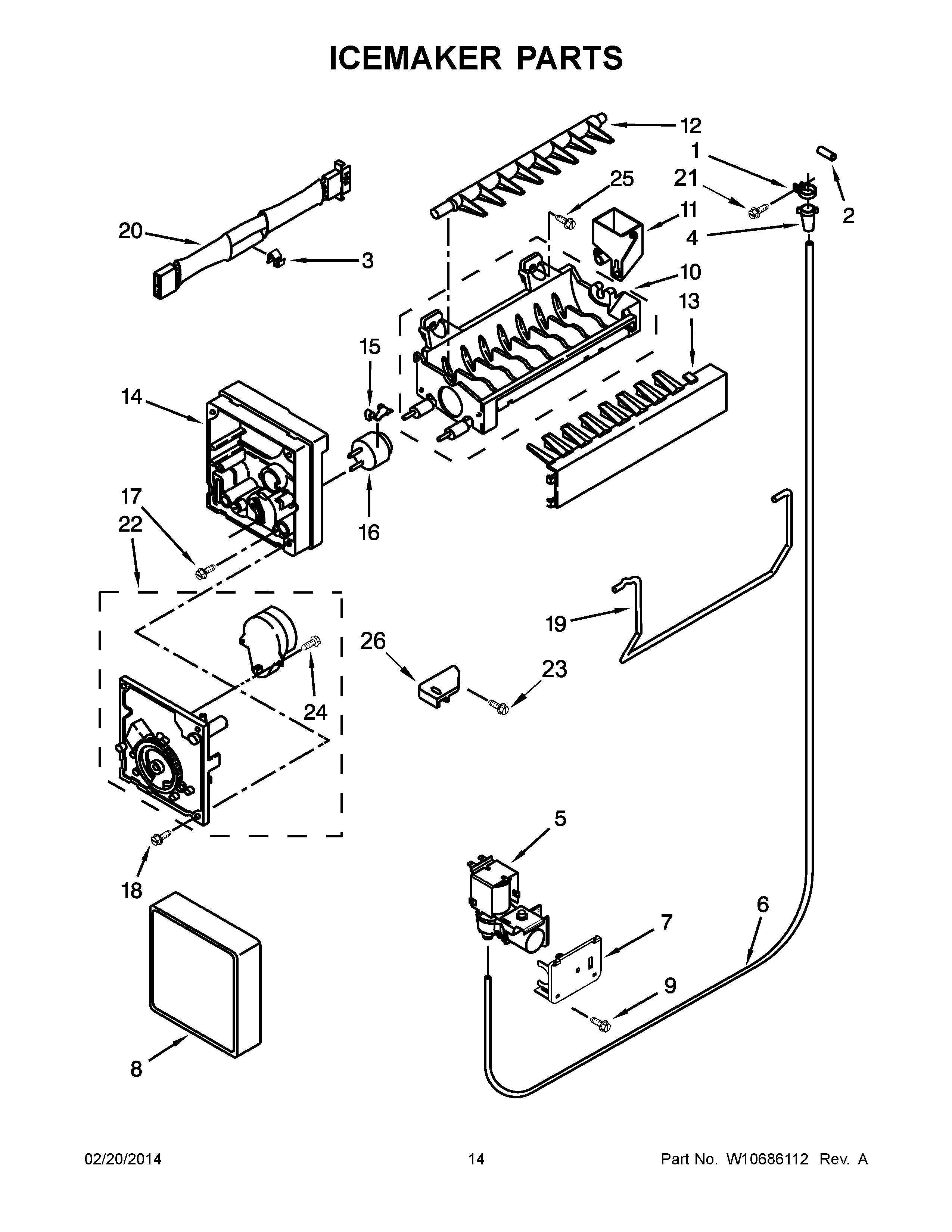

KFFS20EYBL02 08 – ICEMAKER PARTS

KFFS20EYBL02 08 – ICEMAKER PARTS

Written by

in

KFFS20EYBL02 08 – ICEMAKER PARTS

Products

PositionProduct
1W10861184 Whirlpool Refrigerator Clamp
2WPW10496649 Whirlpool Refrigerator Water Tube
3WP628379 Whirlpool Refrigerator Clip
44387491 Whirlpool Refrigerator Insert
5VALVE-INLT REFR
5WPW10279866 Whirlpool Refrigerator Inlet Valve
6WPW10238092 Whirlpool Refrigerator Water Tube
7W10847867 Whirlpool Refrigerator Bracket
8WPW10289690 Whirlpool Ice Maker Cover
9WP489442 Whirlpool Refrigerator Screw
10WPW10190929 Whirlpool Refrigerator Ice Maker Mold
11W11676540 Whirlpool Refrigerator Cup Fill
12WP627843 Whirlpool Refrigerator Ejector Arm
13WPW10122563 Whirlpool Refrigerator Stripper Arm
14WP2195914 Whirlpool Refrigerator Ice Maker Housing
15WP2315522 Whirlpool Refrigerator Clip
16WP627985 Whirlpool Icemaker Cycling Thermostat
17W10001280 Whirlpool Refrigerator Screw
18WP681249 Whirlpool Screw Assembly
19WPW10474785 Whirlpool Refrigerator Shut-Off Arm
20W11643622 Whirlpool Wire Harness
21WP488787 Whirlpool Refrigerator Screw
228201515 Whirlpool Refrigerator Motor and Gear Module Kit
23WP489478 Whirlpool Refrigerator Screw
24489136 Whirlpool Refrigerator Screw
25WP488163 Whirlpool Refrigerator Screw
26W11500948 Whirlpool Refrigerator Bracket
1004317943 Whirlpool Refrigerator Ice Maker Assembly
