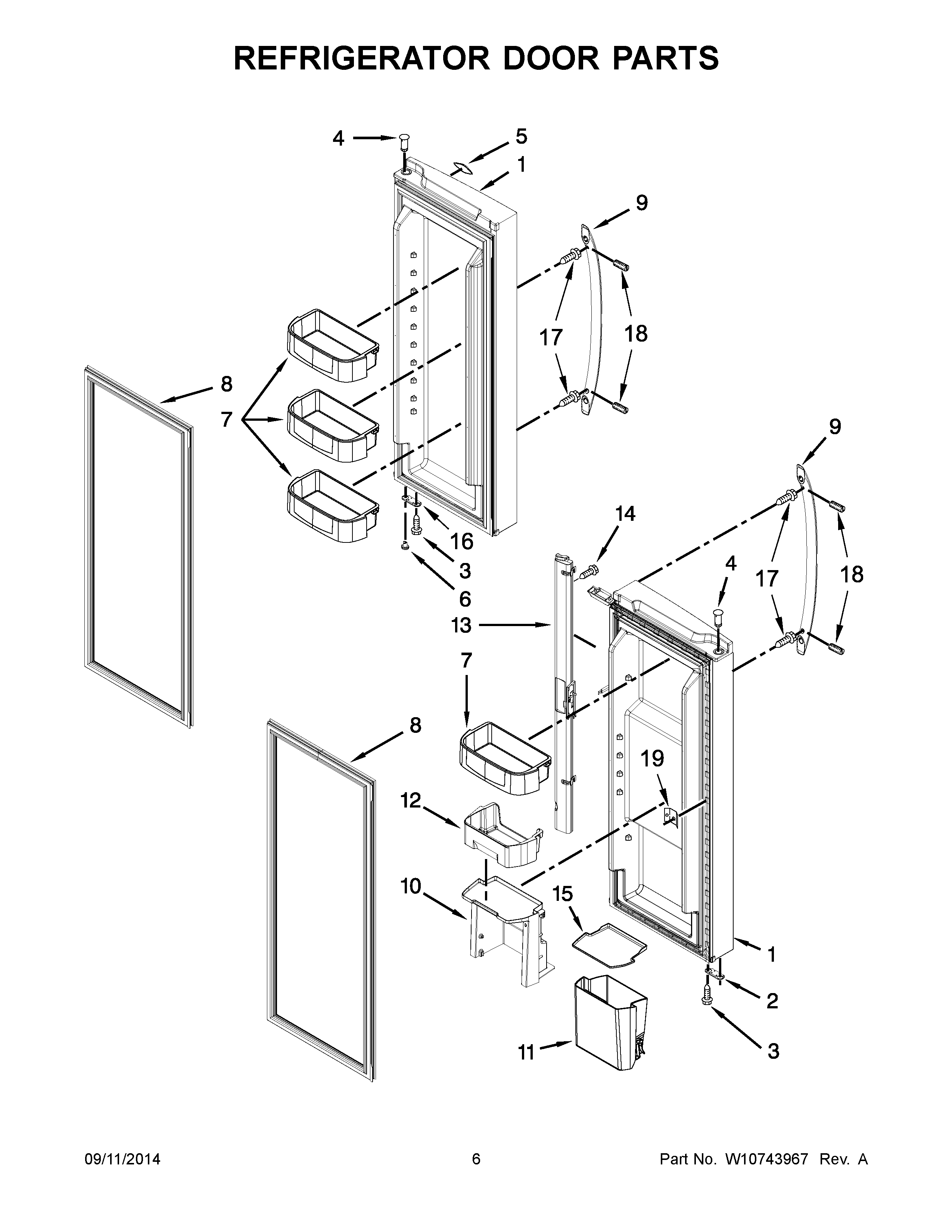

KFFS20EYBL04 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1C	LW10413518 Whirlpool Door Right Side Black Foam In Place
1D	LW10413524 Whirlpool Refrigerator Dor-Fip Left Side
1	LW10393587 Whirlpool Dishwasher Left Side DOR-FIP White
1B	LW10413522 Whirlpool Dishwasher Foam In Place Left Side Black
1E	LW10413519 Whirlpool Refrigerator Door Flip Right Side, Mono Stainless
1A	LW10353181 Whirlpool Refrigerator Door-Fip White, Right Side
2	W11745278 Whirlpool Bracket
3	WP681249 Whirlpool Screw Assembly
4A	W11189115 Whirlpool Refrigerator Thimble
4	W11544568 Whirlpool Door Thimble
5B	WPW10243391 Whirlpool Refrigerator Nameplate
5A	WPW10243392 Whirlpool Dishwasher Nameplate
5	WPW10243393 Whirlpool Dishwasher Nameplate
6	WPW10470155 Whirlpool Refrigerator Door Closing Cam
7	WPW10308869 Whirlpool Door Bin
8B	GASKET-FIP
8	W10460612 Whirlpool Refrigerator Door Gasket
8A	W10460610 Whirlpool Refrigerator FIP Gasket
9A	HANDLE, DOOR (BLACK)
9	WPW10314515 Whirlpool Refrigerator Handle
9B	WPW10314517K Whirlpool Refrigerator Handle
10	WPW10317224 Whirlpool Refrigerator Container
11	WPW10411219 Whirlpool Refrigerator Bin
12	WPW10326335 Whirlpool Refrigerator Cantilever Bin
13B	WPW10624450 Whirlpool Refrigerator Mullion Rail
13A	W11692845 Whirlpool Mullen Rail
13	WPW10624451 Whirlpool Refrigerator Mullion Rail
14	W10854958 Whirlpool Refrigerator Screw
15	WPW10317192 Whirlpool Refrigerator Mat
16	WPW10397055 Whirlpool Refrigerator Hinge Bracket
17	WPW10170540 Whirlpool Screw
18	WP3400203 Whirlpool Screw
19	WP939101 Whirlpool Refrigerator Plate
