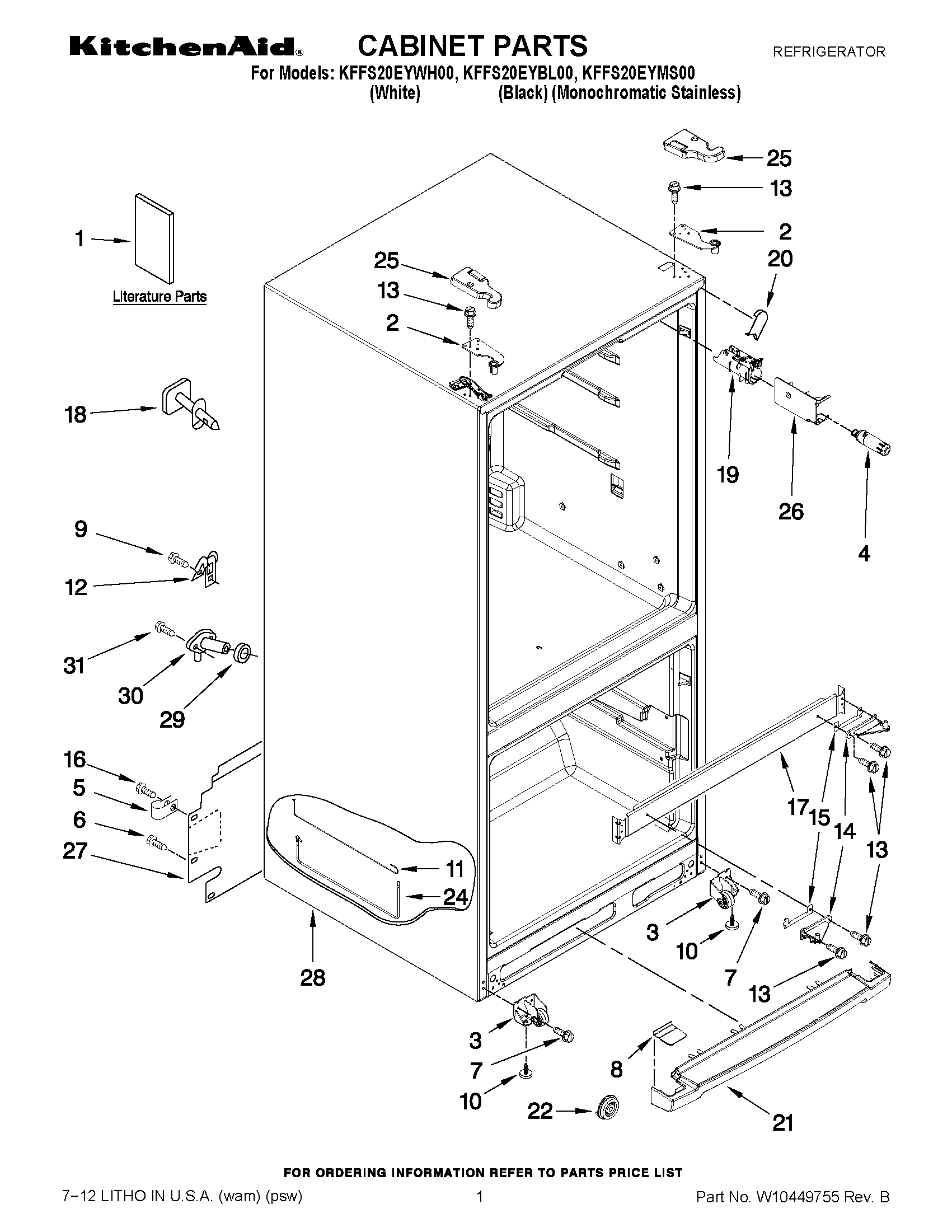

KFFS20EYMS00 01 – CABINET PARTS

KFFS20EYMS00 01 – CABINET PARTS

Written by

in

KFFS20EYMS00 01 – CABINET PARTS

Products

Position	Product
1	SERVICE & WIRING SHEET
1	USE & CARE GUIDE
1	ENERGY LABEL
1	Modular Icemaker Service Sheet
2	W10546298 Whirlpool Refrigerator Door Hinge
2	W11573371 Whirlpool Refrigerator Door Hinge
3	WPW10359255 Whirlpool Cabinet Wheel
3	WPW10359256 Whirlpool Cabinet Roller
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	WP488878 Whirlpool Refrigerator Tube Clamp
6	WP489427 Whirlpool Refrigerator Screw
8	WPW10353932 Whirlpool Refrigerator Grille Endcap
8	W10353930 Whirlpool Refrigerator Grill End Cap
8	WPW10339257 Whirlpool Refrigerator Toe Grille Cover
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
11	WPW10449619 Whirlpool Refrigerator Water Tube
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	WPW10521409 Whirlpool Door Hinge Assembly
14	WPW10521411 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16	WP488787 Whirlpool Refrigerator Screw
19	W10844267 Whirlpool Refrigerator Housing
20	W10851579 Whirlpool Refrigerator Filler
20	WPW10283959 Whirlpool Refrigerator Filler
20	W11252732 Whirlpool Refrigerator Filler
21	WPW10300127 Whirlpool Refrigerator Grille
21	WPW10353933 Whirlpool Refrigerator Grille
21	WPW10353935 Whirlpool Refrigerator Grille
22	W10331226 Whirlpool Refrigerator Clip
24	W10801011 Whirlpool Refrigerator Reservoir
25	W10465771 Whirlpool Refrigerator Cover
25	W10465770 Whirlpool Hinge Cover
25	W10465765 Whirlpool Refrigerator Cover
25	W10465764 Whirlpool Refrigerator Cover
25	W10465767 Whirlpool Refrigerator Cover
25	W10465768 Whirlpool Hinge Cover
26	WPW10306392 Whirlpool Refrigerator Filter Cover
27	W10636716 Whirlpool Refrigerator Cover Unit
28	CABINET (NOT A SERVICEABLE PART)
29	WP1106508 Whirlpool Refrigerator Gasket
30	W11292468 Whirlpool Refrigerator Fitting
31	WP488729 Whirlpool Refrigerator Door Screw
