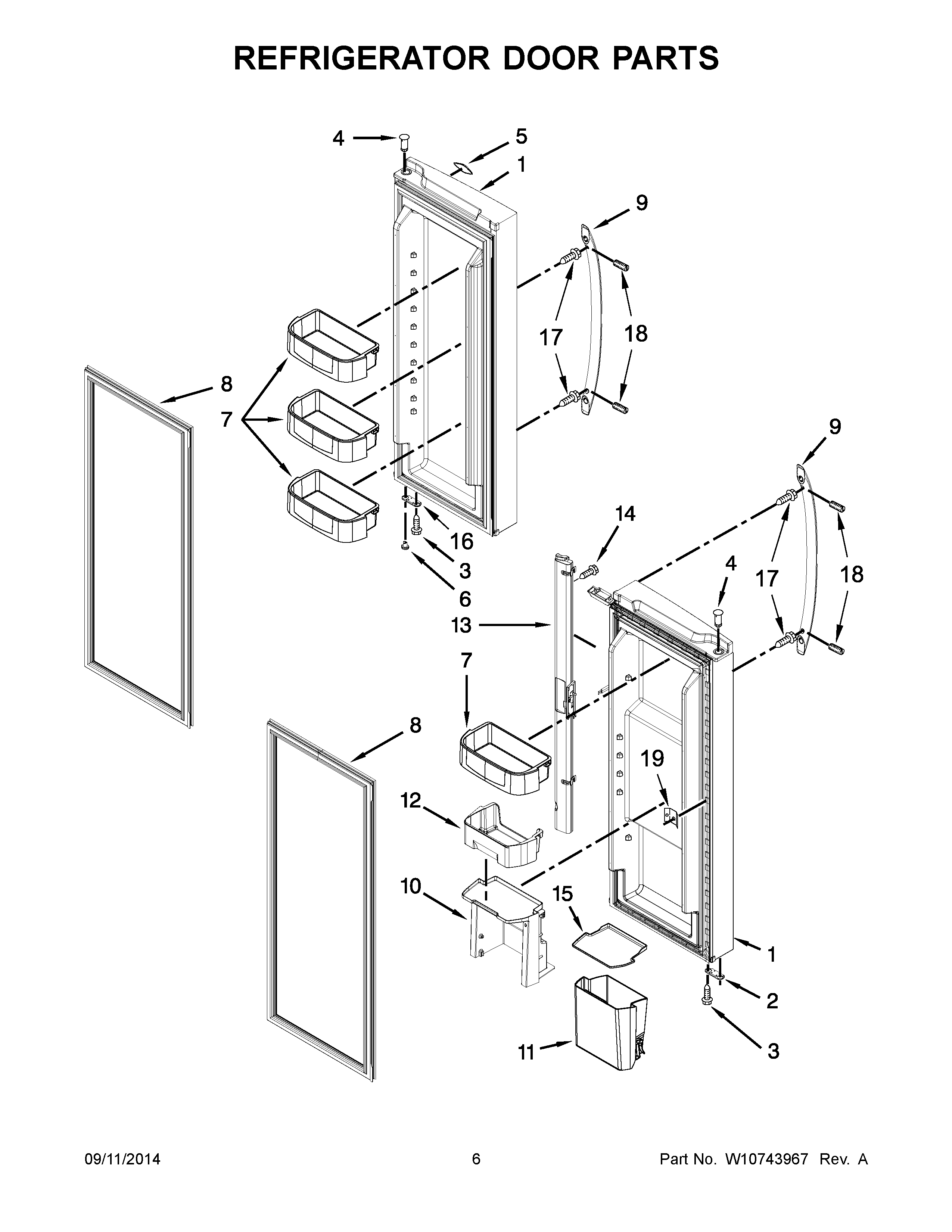

KFFS20EYMS04 04 – REFRIGERATOR DOOR PARTS

KFFS20EYMS04 04 – REFRIGERATOR DOOR PARTS

Written by

in

KFFS20EYMS04 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1CLW10413518 Whirlpool Door Right Side Black Foam In Place
1DLW10413524 Whirlpool Refrigerator Dor-Fip Left Side
1LW10393587 Whirlpool Dishwasher Left Side DOR-FIP White
1BLW10413522 Whirlpool Dishwasher Foam In Place Left Side Black
1ELW10413519 Whirlpool Refrigerator Door Flip Right Side, Mono Stainless
1ALW10353181 Whirlpool Refrigerator Door-Fip White, Right Side
2W11745278 Whirlpool Bracket
3WP681249 Whirlpool Screw Assembly
4AW11189115 Whirlpool Refrigerator Thimble
4W11544568 Whirlpool Door Thimble
5BWPW10243391 Whirlpool Refrigerator Nameplate
5AWPW10243392 Whirlpool Dishwasher Nameplate
5WPW10243393 Whirlpool Dishwasher Nameplate
6WPW10470155 Whirlpool Refrigerator Door Closing Cam
7WPW10308869 Whirlpool Door Bin
8BGASKET-FIP
8W10460612 Whirlpool Refrigerator Door Gasket
8AW10460610 Whirlpool Refrigerator FIP Gasket
9AHANDLE, DOOR (BLACK)
9WPW10314515 Whirlpool Refrigerator Handle
9BWPW10314517K Whirlpool Refrigerator Handle
10WPW10317224 Whirlpool Refrigerator Container
11WPW10411219 Whirlpool Refrigerator Bin
12WPW10326335 Whirlpool Refrigerator Cantilever Bin
13BWPW10624450 Whirlpool Refrigerator Mullion Rail
13AW11692845 Whirlpool Mullen Rail
13WPW10624451 Whirlpool Refrigerator Mullion Rail
14W10854958 Whirlpool Refrigerator Screw
15WPW10317192 Whirlpool Refrigerator Mat
16WPW10397055 Whirlpool Refrigerator Hinge Bracket
17WPW10170540 Whirlpool Screw
18WP3400203 Whirlpool Screw
19WP939101 Whirlpool Refrigerator Plate
