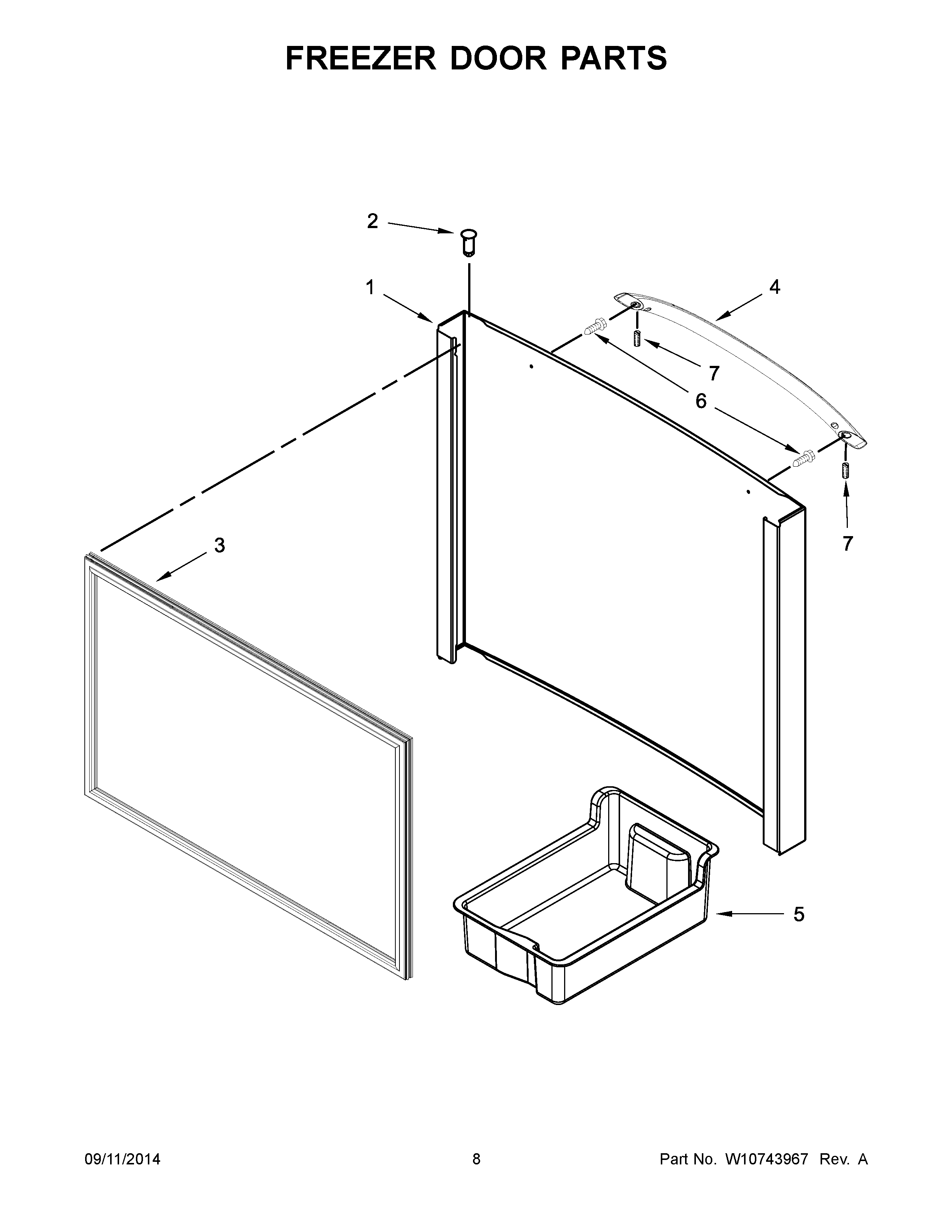

KFFS20EYMS04 05 – FREEZER DOOR PARTS

KFFS20EYMS04 05 – FREEZER DOOR PARTS

Written by

in

KFFS20EYMS04 05 – FREEZER DOOR PARTS

Products

PositionProduct
1BLW10413531 Whirlpool Refrigerator Door Frame Insulation Panel
1LW10353182 Whirlpool Refrigerator Door FIP White
1ALW10413530 Whirlpool Refrigerator Black Foam In Place Doorack
2AW11189115 Whirlpool Refrigerator Thimble
2W11544568 Whirlpool Door Thimble
3BW10836785 Whirlpool Door Gasket
3AW11625017 Whirlpool Refrigerator FIP Gasket
3W10460611 Whirlpool Door Gasket
4W10360545 Whirlpool Refrigerator Handle
4AW10409090 Whirlpool Handle Assembly
4BWPW10409091 Whirlpool Refrigerator Handle
5WPW10378263 Whirlpool Refrigerator Ice Pan
6WPW10170540 Whirlpool Screw
7WP3400203 Whirlpool Screw
