KFFU271TSS00 02 – BASE PARTS

KFFU271TSS00 02 – BASE PARTS

Written by

in

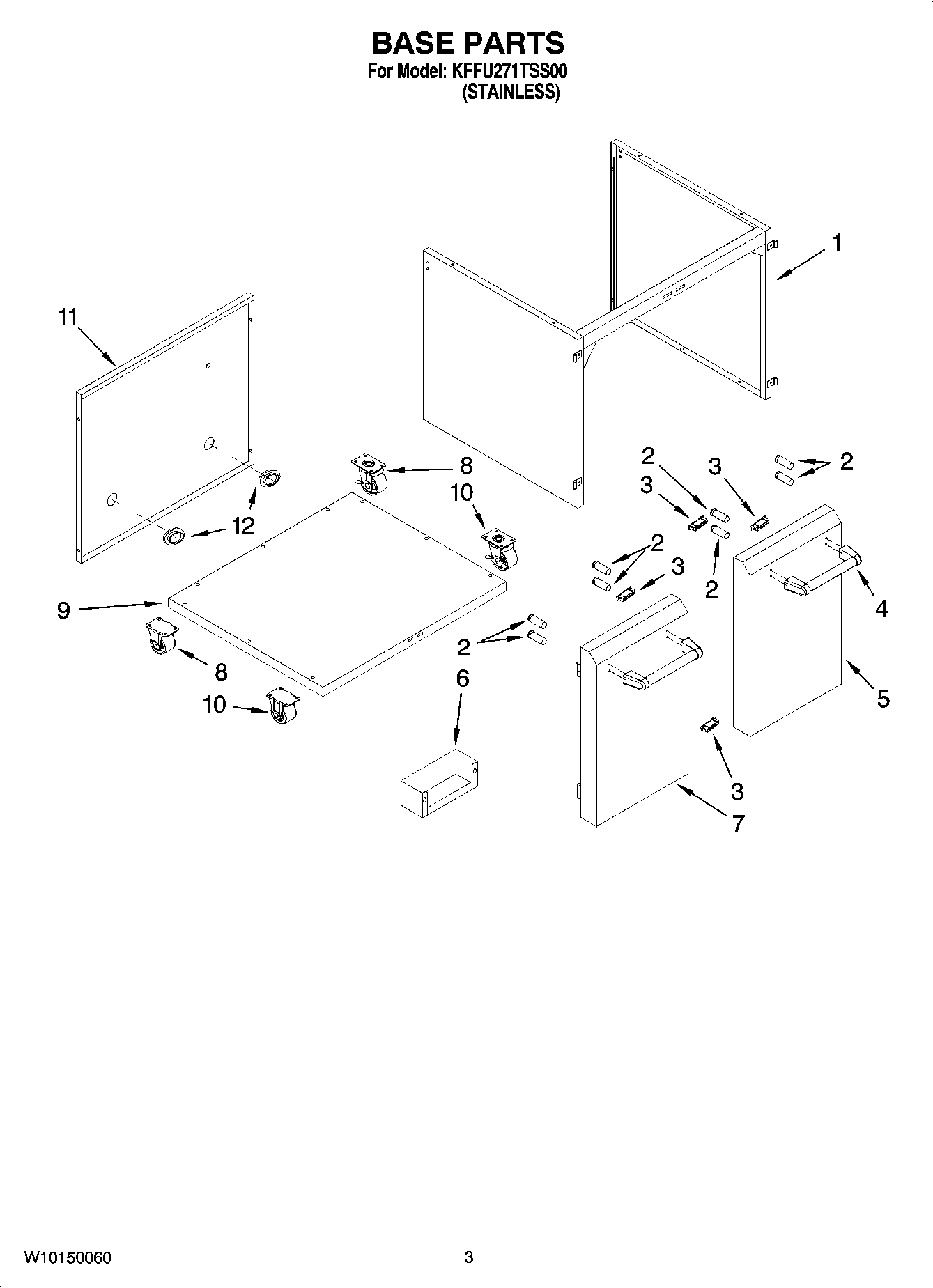

KFFU271TSS00 02 – BASE PARTS

Products

Position	Product
1	Panel, Side Assy (Not Serviced)
2	Hole Plug
3	Magnet, Door
4	Handle, Door
5	Door, Right
6	Tray, Condiment
7	Door, Left
8	CASTER
9	Panel, Bottom (Not Serviced)
10	Caster, W/Brake
11	Panel, Rear
12	Ring, Rubber
