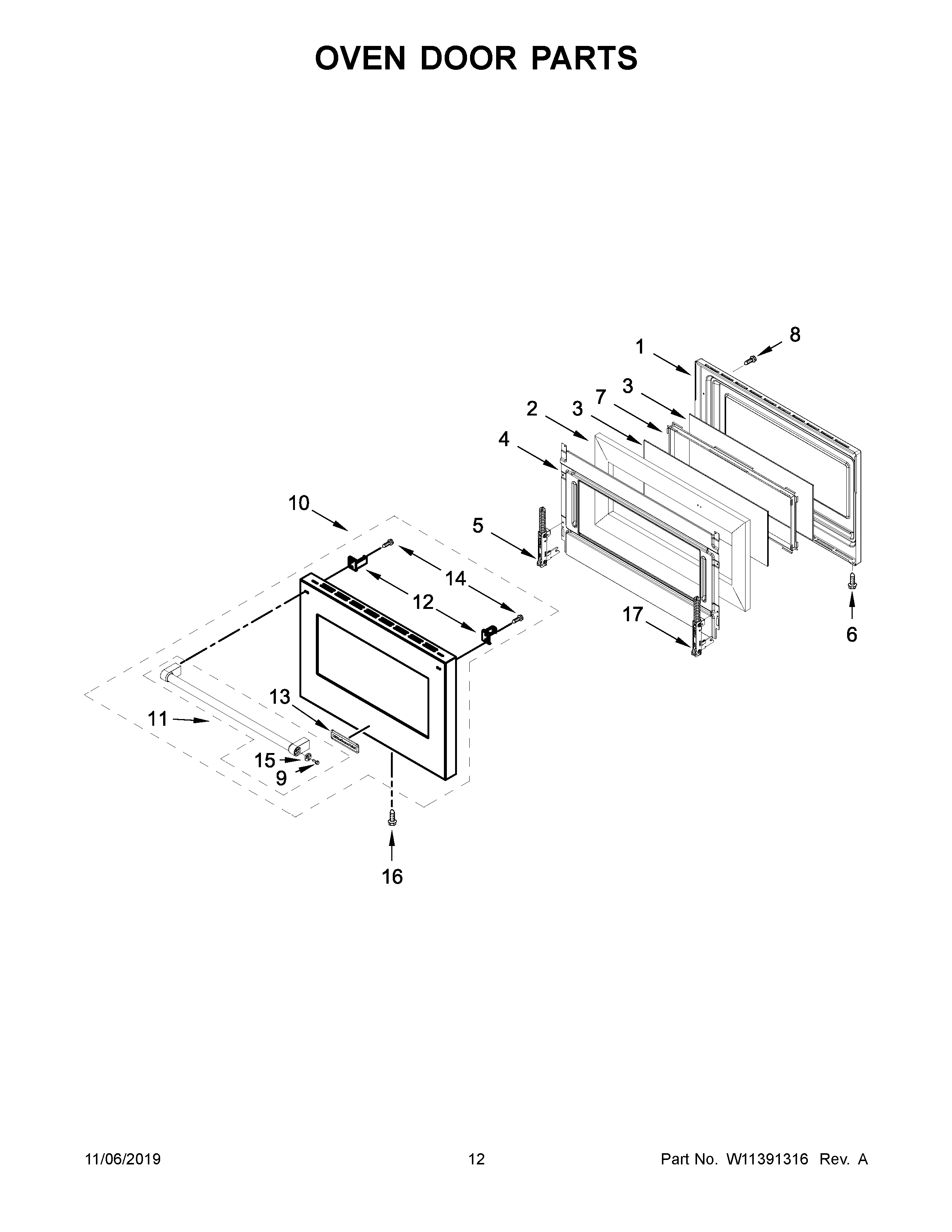

KFGC500JAV00 07 – OVEN DOOR PARTS

Products

PositionProduct
1W11318831 Whirlpool Glass Frame
2INSULATION, DOOR
3W11318823 Whirlpool Door Glass
4RETAINER, GLASS
5W11643630 Whirlpool Door Hinge
6W11193480 Whirlpool Screw
7WPW10272594 Whirlpool Window Frame
8W11712404 Whirlpool Screw
9W10920281 Whirlpool Screw
10ASSEMBLY, OUTER DOOR (INCLUDES HANDLE)
11W11380863 Whirlpool Door Handle
12BRACKET, HANDLE
13W10839793 Whirlpool Refrigerator Nameplate
14WPW10276043 Whirlpool Screw
15W11368841SI Whirlpool Range Medallion
16W10162096 Whirlpool Screw
17W11643898 Whirlpool Door Hinge
