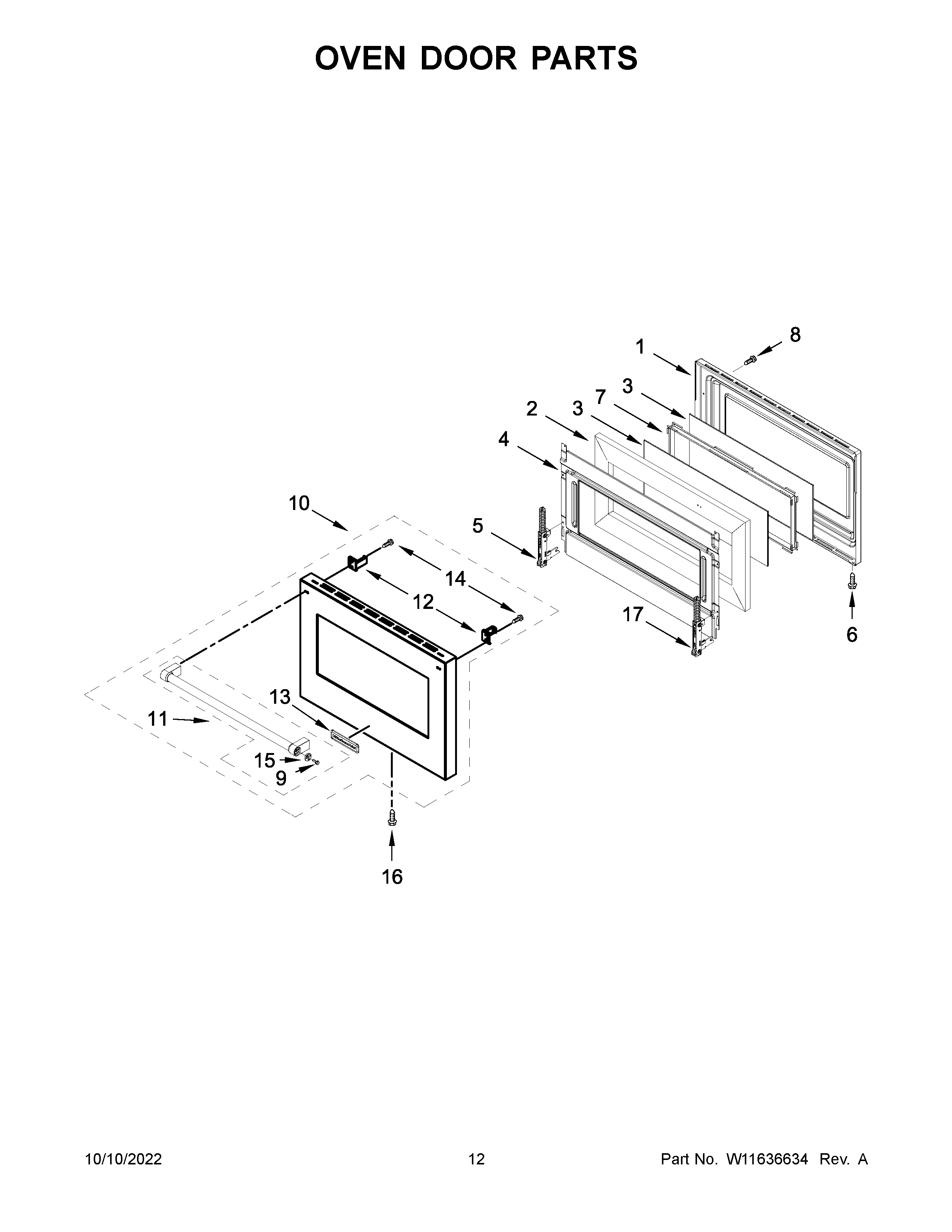

KFGC500JAV05 07 – OVEN DOOR PARTS

Products

Position	Product
1	W11318831 Whirlpool Glass Frame
2	INSULATION, DOOR (30 IN)
3	W11318823 Whirlpool Door Glass
4	RETAINER, GLASS
5	W11643630 Whirlpool Door Hinge
6	W11193480 Whirlpool Screw
7	WPW10272594 Whirlpool Window Frame
8	W11712404 Whirlpool Screw
9	W10920281 Whirlpool Screw
10	ASSEMBLY, OUTER DOOR (INCLUDES HANDLE)
11	HANDLE ASSEMBLY
12	BRACKET, HANDLE
13	W10839793 Whirlpool Refrigerator Nameplate
14	WPW10276043 Whirlpool Screw
15	MEDALLION, HANDLE
16	W10162096 Whirlpool Screw
17	W11643898 Whirlpool Door Hinge
