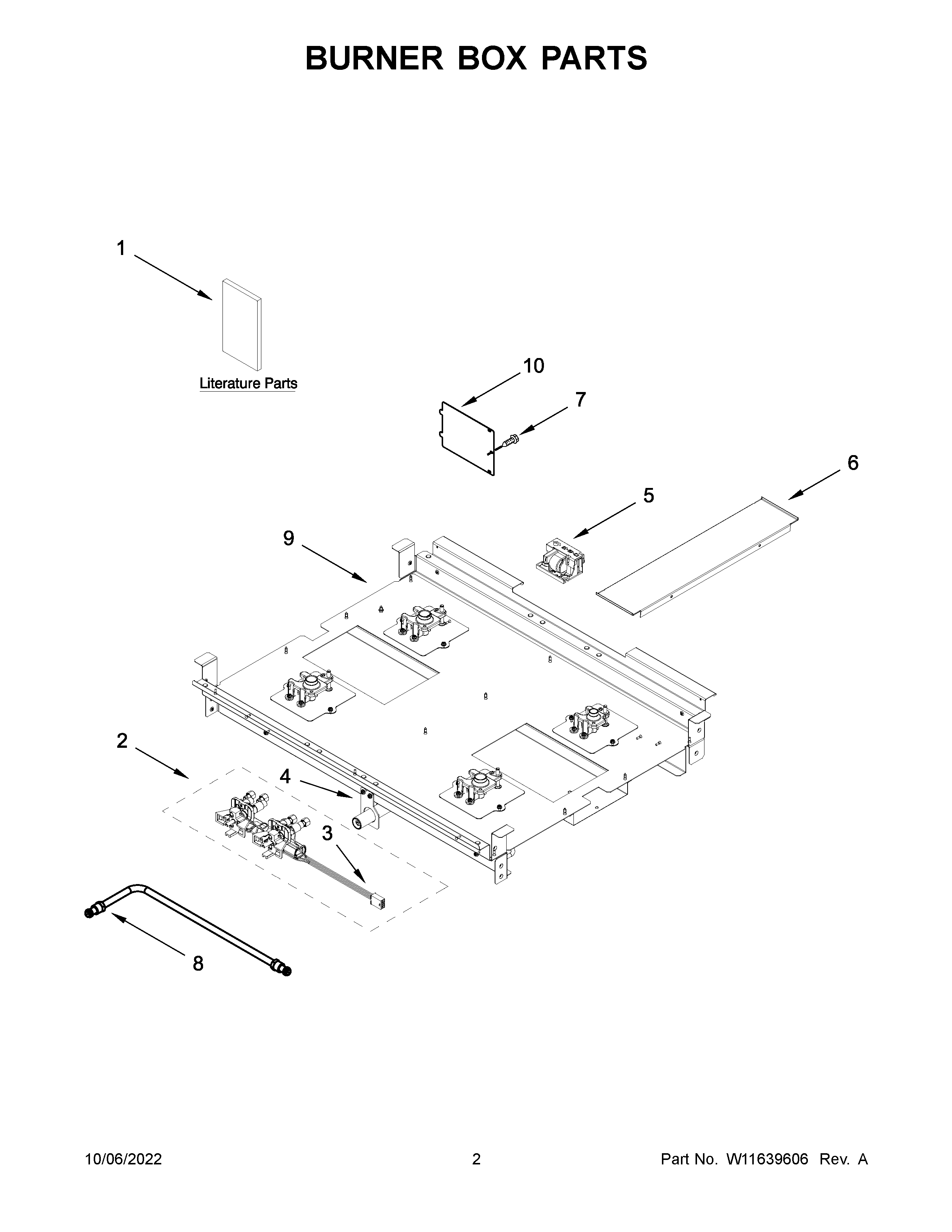

KFGC500JIB05 02 – BURNER BOX PARTS

Products

Position	Product
NI	W11317791 Whirlpool Wire Harness
NI	HARNESS, MAIN (30 IN)
NI	HARNESS, COOKTOP
NI	W11502161 Whirlpool Conversion Kit
NI	W11200325 Whirlpool Wire Harness
NI	W10780278 Whirlpool Wire Harness
NI	W10624584 Whirlpool Power Cord
NI	16515 Whirlpool Clip
NI	4450800 Whirlpool Oven Screw
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11446236 Whirlpool Wire Harness
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	SCREW, ANTI-TIP KIT
1A	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
1B	GUIDE, INTERNET CONNECTIVITY
1D	TECH SHEET
1C	DIAGRAM, WIRING (COOKTOP)
1E	GUIDE, QUICK START
2	W11378578 Whirlpool Manifold
2A	W11378579 Whirlpool Manifold
3	W11344433 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	FILLER, COOKTOP
7	SCREW
8	TUBE, MANIFOLD SUPPLY (LEFT)
8A	TUBE, MANIFOLD SUPPLY (RIGHT)
10	W10115843 Whirlpool Access Cover
