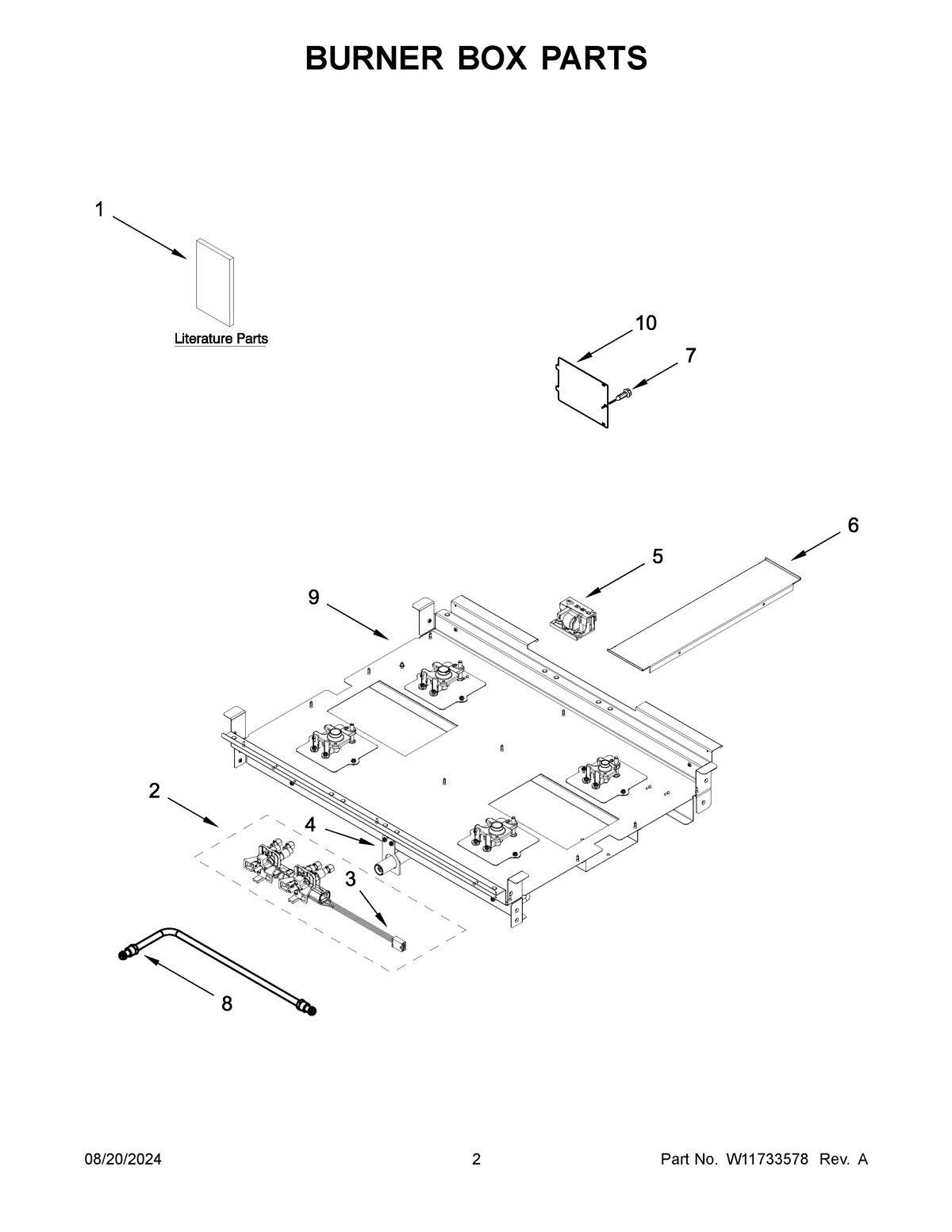

KFGC500JMH07 02 – BURNER BOX PARTS
Written by
in
KFGC500JMH07 02 – BURNER BOX PARTS
Products
Position
Product
NI
W11200325 Whirlpool Wire Harness
NI
HARNESS, COOKTOP
NI
HARNESS, MAIN (30 IN)
NI
W11317791 Whirlpool Wire Harness
NI
W10780278 Whirlpool Wire Harness
NI
W10624584 Whirlpool Power Cord
NI
W11502161 Whirlpool Conversion Kit
NI
4450800 Whirlpool Oven Screw
NI
SCREW, ANTI-TIP KIT
NI
FOLLOWING PARTS NOT ILLUSTRATED
NI
W11544575 Whirlpool Anti-Tip Bracket
NI
W11446236 Whirlpool Wire Harness
NI
16515 Whirlpool Clip
1C
DIAGRAM, WIRING (COOKTOP)
1
USE AND CARE GUIDE
1A
INSTALLATION INSTRUCTIONS
1B
GUIDE, INTERNET CONNECTIVITY
1E
GUIDE, QUICK START
1D
TECH SHEET
2
W11378578 Whirlpool Manifold
2A
W11378579 Whirlpool Manifold
3
W11344433 Whirlpool Wire Harness
4
W11320153 Whirlpool Mounting Bracket
5
W11319687 Whirlpool Spark Module
6
FILLER, COOKTOP
7
SCREW
8
TUBE, MANIFOLD SUPPLY (LEFT)
8A
TUBE, MANIFOLD SUPPLY (RIGHT)
9
BOX, BURNER (NOT SERVICED)
10
W10115843 Whirlpool Access Cover
←
