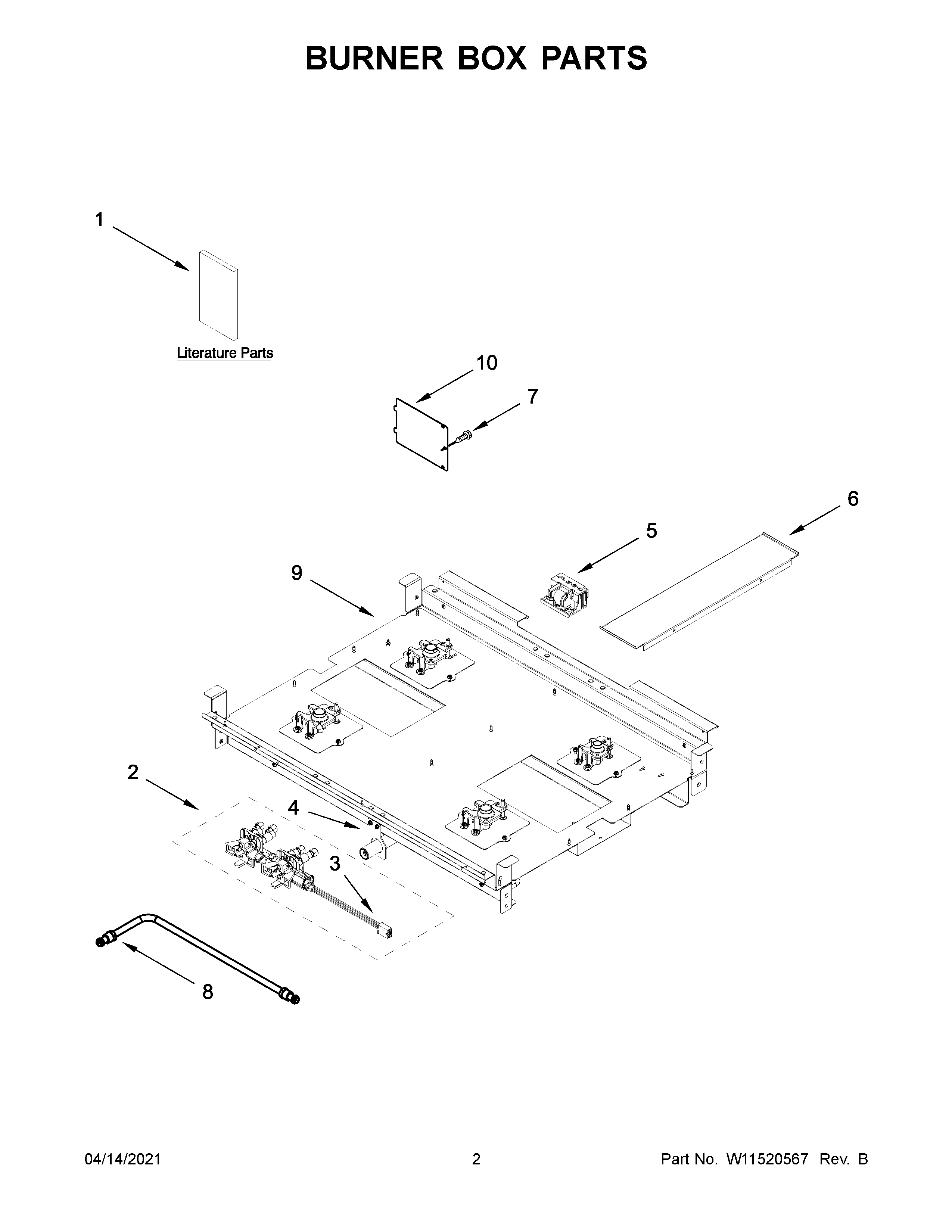

KFGC500JPA01 02 – BURNER BOX PARTS

KFGC500JPA01 02 – BURNER BOX PARTS

Written by

in

KFGC500JPA01 02 – BURNER BOX PARTS

Products

PositionProduct
NIW11200309 Whirlpool Wire Harness
NIHARNESS, COOKTOP
NIW11502161 Whirlpool Conversion Kit
NIW11317791 Whirlpool Wire Harness
NIW11200325 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW10624584 Whirlpool Power Cord
NIW11446236 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NI4450800 Whirlpool Oven Screw
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
1GUIDE, USE AND CARE
1EGUIDE, QUICK START
1CDIAGRAM, WIRING
1DSHEET, TECH
1AINSTALLATION INSTRUCTIONS
1BGUIDE, INTERNET CONNECTIVITY
2W11378578 Whirlpool Manifold
2AW11378579 Whirlpool Manifold
3W11344433 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6FILLER, COOKTOP
7SCREW
8TUBE, MANIFOLD SUPPLY (LEFT)
8ATUBE, MANIFOLD SUPPLY (RIGHT)
10W10115843 Whirlpool Access Cover
