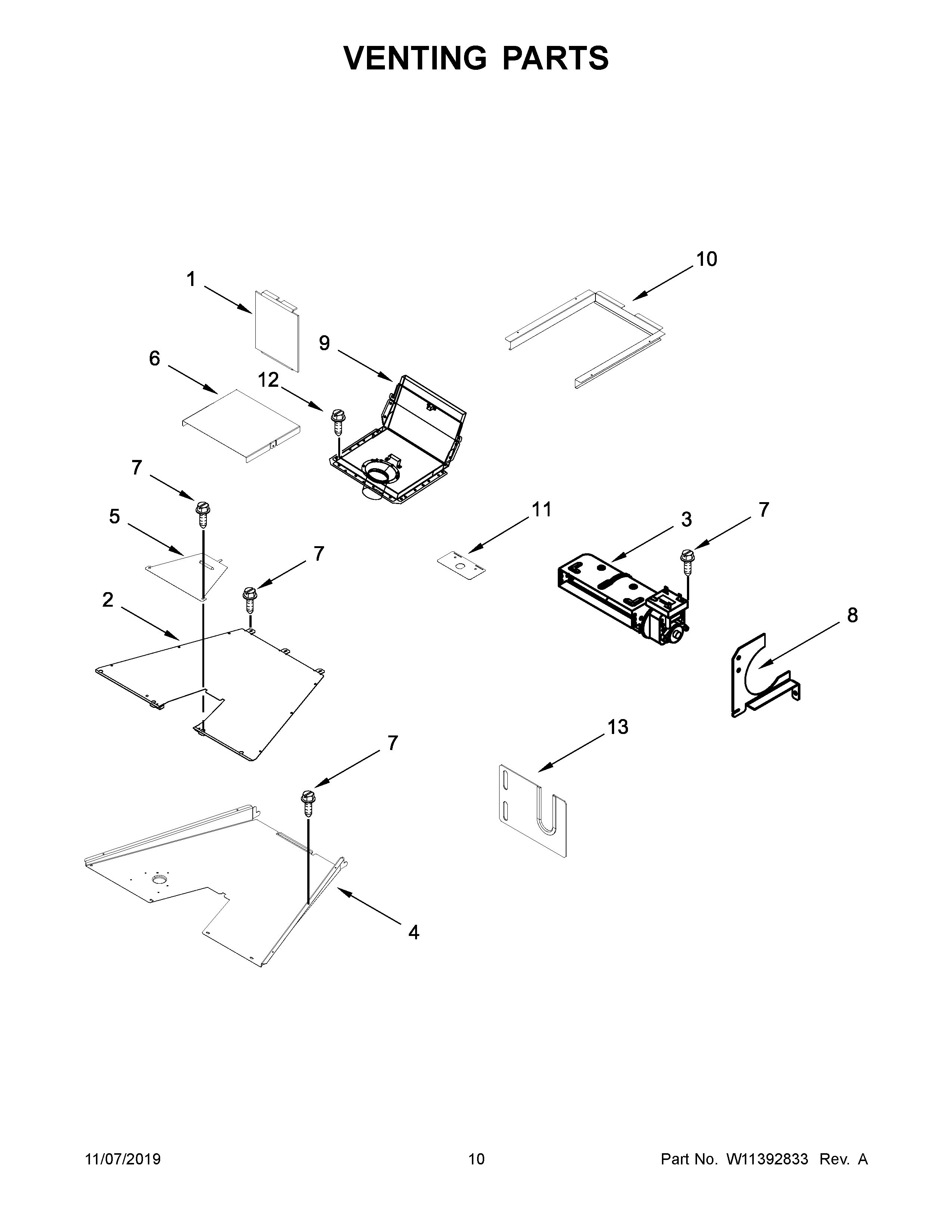

KFGC500JSC00 06 – VENTING PARTS

Products

PositionProduct
1INSULATION, CHIMNEY
2VENT, COOLING TOP (30 IN)
3W11248652 Whirlpool Blower
4VENT, COOLING BOTTOM (30 IN)
5PLATE, COOLING LATCH
6RETAINER, INSULATION
7SCREW
8BRACKET, BLOWER MOUNT
9W10340579 Whirlpool Exhaust Vent
10DUCT, PRIMARY AIR (30 IN)
11W10115855 Whirlpool Support Bracket
12WP3400805 Whirlpool Screw Assembly
13COVER, CHANNEL
