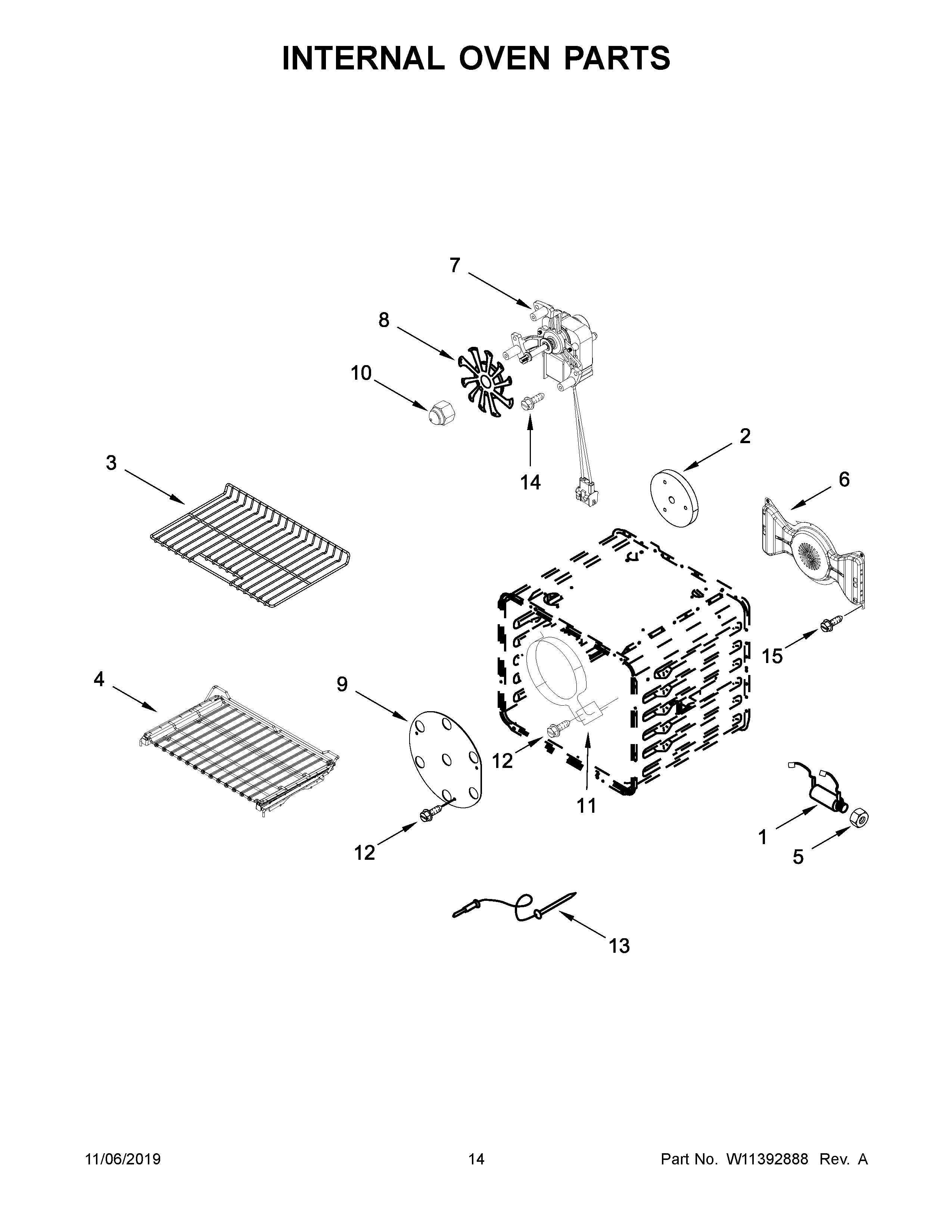

KFGC500JYP00 08 – INTERNAL OVEN PARTS

Products

Position	Product
1	8186589 Whirlpool Jack Probe
2	W11688507 Whirlpool Insulation
3	W11550107 Whirlpool Oven Rack
4	W11496977 Whirlpool Oven Rack
5	W11231343 Whirlpool Lock Nut
6	W11662207 Whirlpool Convection Baffle
7	W10794440 Whirlpool Fan Motor
8	W10819914 Whirlpool Convection Fan
9	W10261523 Whirlpool Plate
10	W10794042 Whirlpool Nut
11	W11098505 Whirlpool Element
12	WP4449154 Whirlpool Screw
13	WP9755542 Whirlpool Oven Meat Probe
14	W10850807 Whirlpool Screw
15	SCREW
