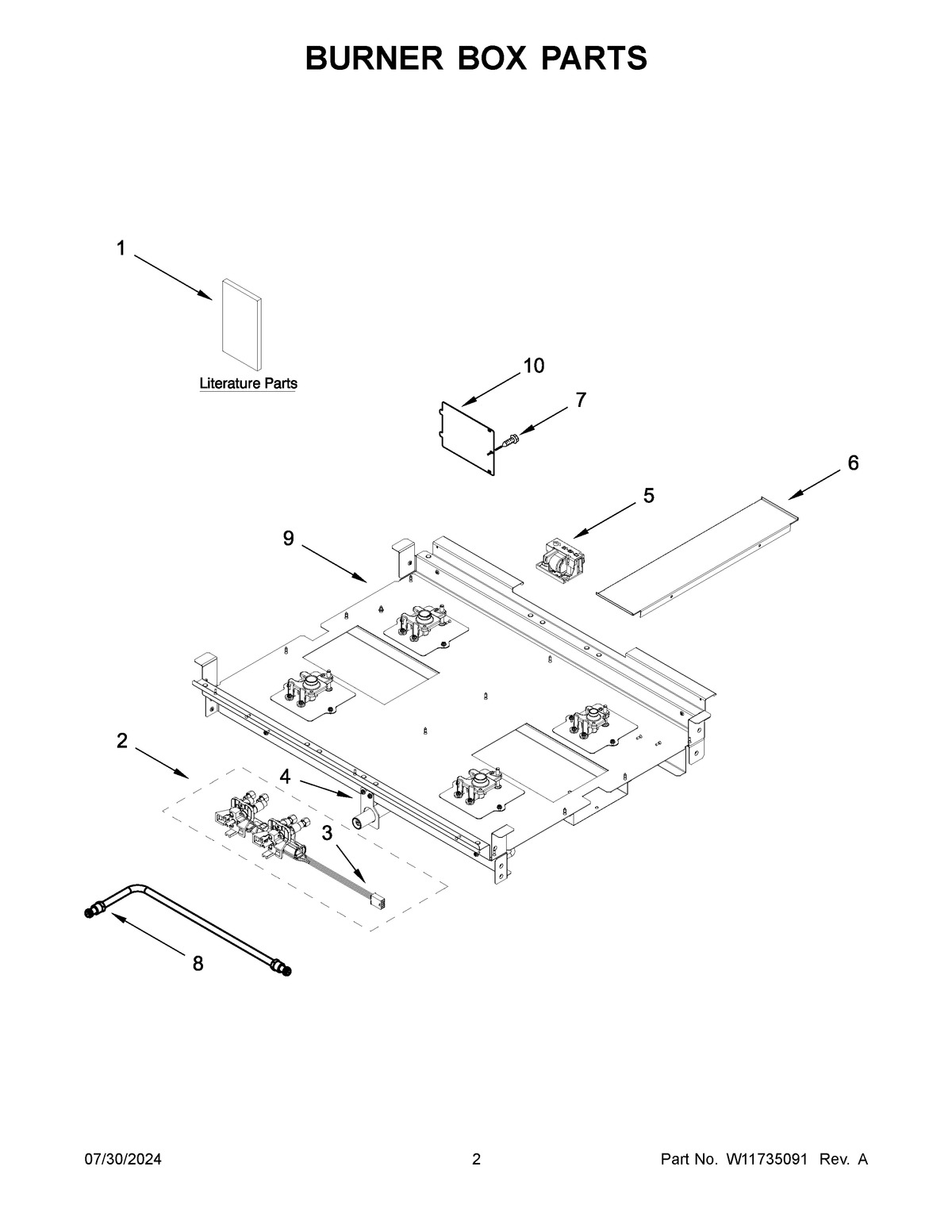

KFGC500JYP07 02 – BURNER BOX PARTS

Products

Position	Product
NI	W11200325 Whirlpool Wire Harness
NI	HARNESS, COOKTOP
NI	HARNESS, MAIN (30 IN)
NI	W11317791 Whirlpool Wire Harness
NI	W10780278 Whirlpool Wire Harness
NI	W10624584 Whirlpool Power Cord
NI	W11502161 Whirlpool Conversion Kit
NI	4450800 Whirlpool Oven Screw
NI	SCREW, ANTI-TIP KIT
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	W11446236 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
1C	DIAGRAM, WIRING (COOKTOP)
1	USE AND CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
1B	GUIDE, INTERNET CONNECTIVITY
1E	GUIDE, QUICK START
1D	TECH SHEET
2	W11378578 Whirlpool Manifold
2A	W11378579 Whirlpool Manifold
3	W11344433 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	FILLER, COOKTOP
7	SCREW
8	TUBE, MANIFOLD SUPPLY (LEFT)
8A	TUBE, MANIFOLD SUPPLY (RIGHT)
9	BOX, BURNER (NOT SERVICED)
10	W10115843 Whirlpool Access Cover
