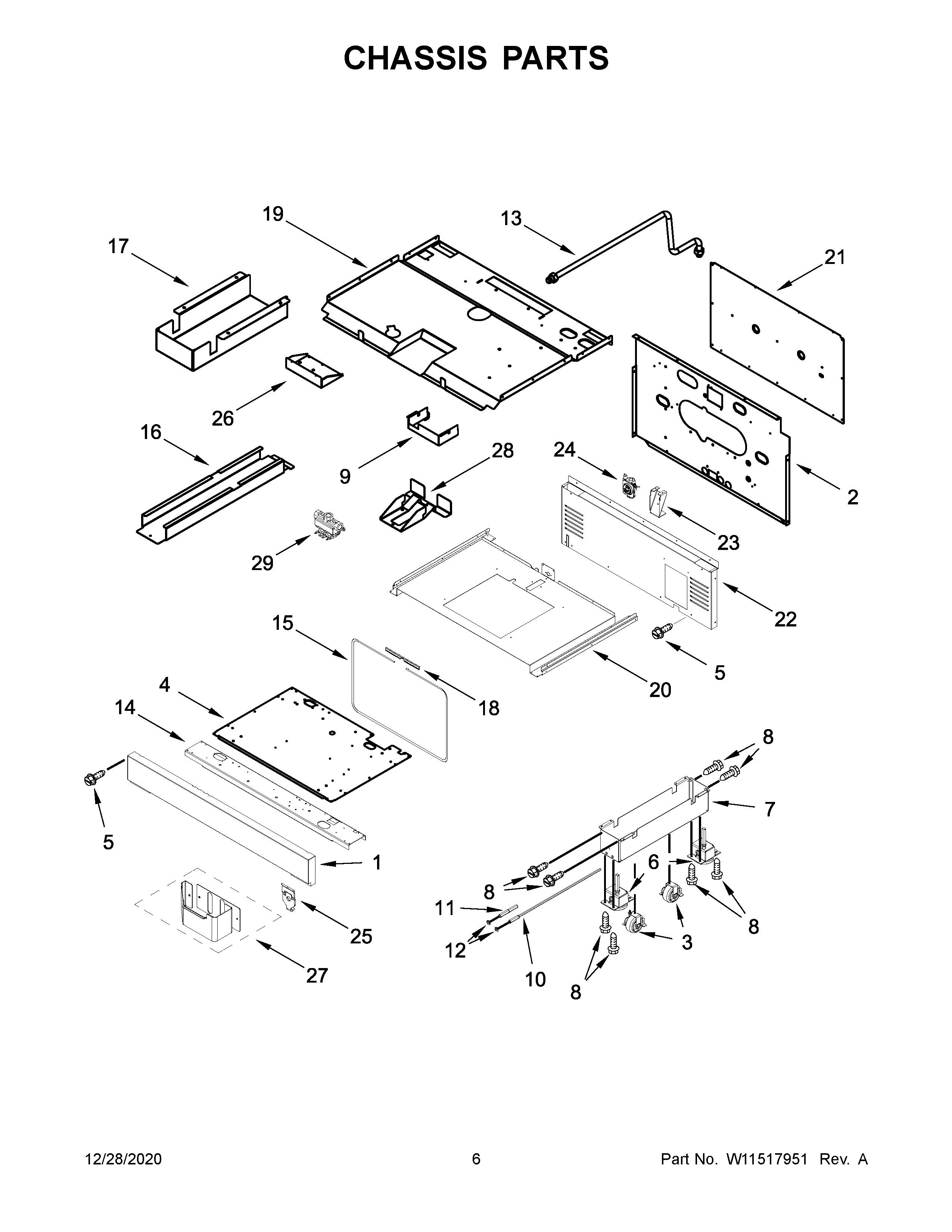

KFGC506JBK01 04 – CHASSIS PARTS

Products

Position	Product
1	W11386102 Whirlpool Cover Plate
2	BACK, CHASSIS
3	WPW10138054 Whirlpool Refrigerator Cabinet Roller
4	W11095572 Whirlpool Duct
5	SCREW
6	W10859931 Whirlpool Foot Level
7	W10908710 Whirlpool Mounting Bracket
8	WP4449743 Whirlpool Screw
9	CABINET, APPLIANCE MANAGER
10	W10115869 Whirlpool Shaft
11	W10115793 Whirlpool Shaft
12	489504 Whirlpool Oven Ring
13	W11364214 Whirlpool Gas Tubing
14	SUPPORT, CHANNEL
15	W11676901 Whirlpool Range Gasket
16	W11050145 Whirlpool HVAC Air Duct
17	CHANNEL, WIRE
18	W11362015 Whirlpool Retainer
19	TOP, CHASSIS
20	CHASSIS, BOTTOM
21	W11103333 Whirlpool Rear Cover
22	PANEL, BACK BOTTOM
23	W11320155 Whirlpool Mounting Bracket
24	W11193822 Whirlpool Regulator
25	W11318207 Whirlpool Clip Assembly
26	DRAWER, APPLIANCE MANAGER
27	W11199181 Whirlpool Foot Cover
27A	W11199178 Whirlpool Foot Cover Assembly
28	W11190223 Whirlpool Bracket Assembly
29	W11239228 Whirlpool Gas Valve
