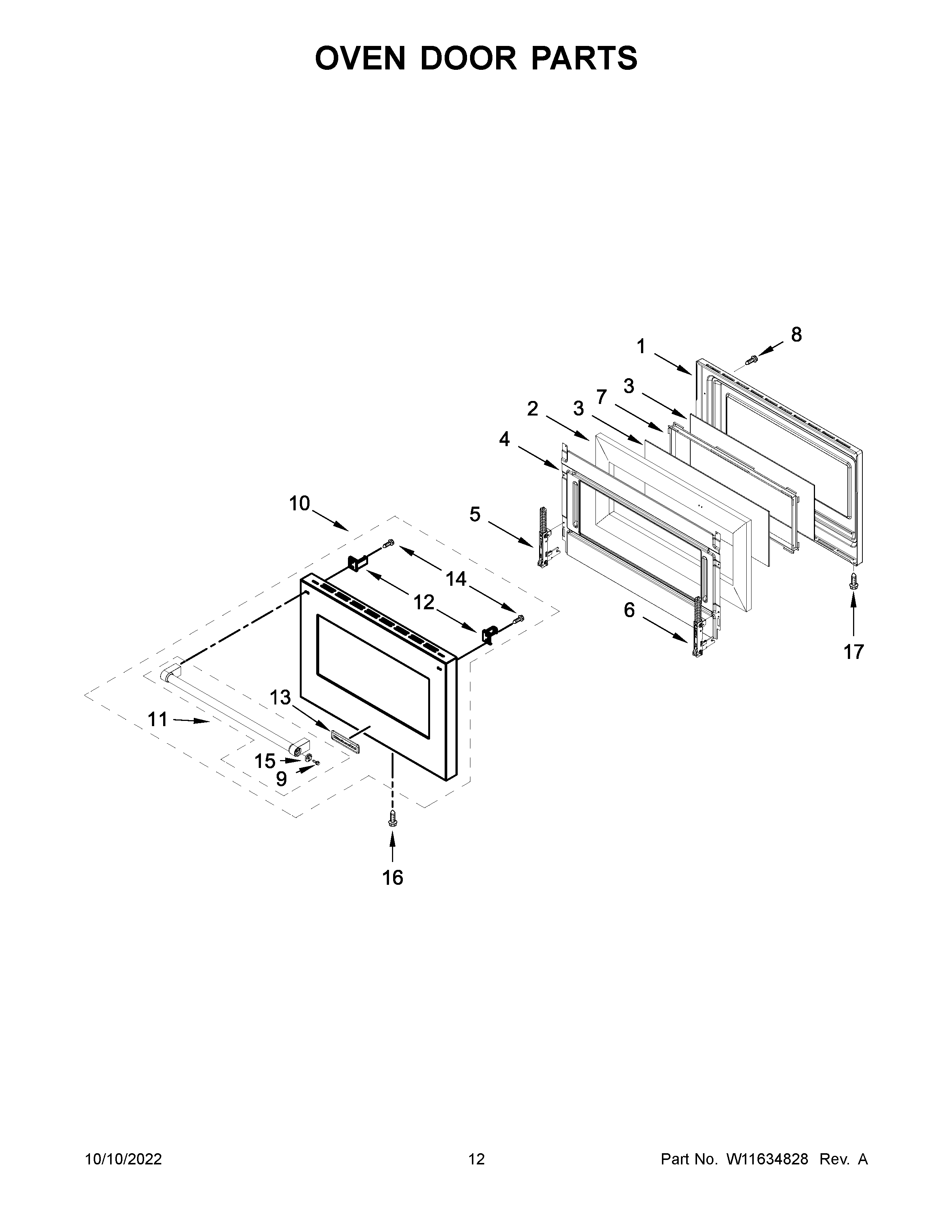

KFGC506JBK05 07 – OVEN DOOR PARTS

Products

Position	Product
1	W11334152 Whirlpool Glass Frame
2	W11688331 Whirlpool Insulation
3	W11334153 Whirlpool Door Glass
4	W11194820 Whirlpool Retainer
5	W11568941 Whirlpool Door Hinge Assembly
6	W11568813 Whirlpool Door Hinge
7	W11194814 Whirlpool Window Frame
8	W11712404 Whirlpool Screw
9	W10920281 Whirlpool Screw
10	W11406461 Whirlpool Door Glass
11	HANDLE ASSEMBLY
12	BRACKET, HANDLE
13	W10839793 Whirlpool Refrigerator Nameplate
14	WPW10276043 Whirlpool Screw
15	MEDALLION, HANDLE
16	W10162096 Whirlpool Screw
17	W11193480 Whirlpool Screw
