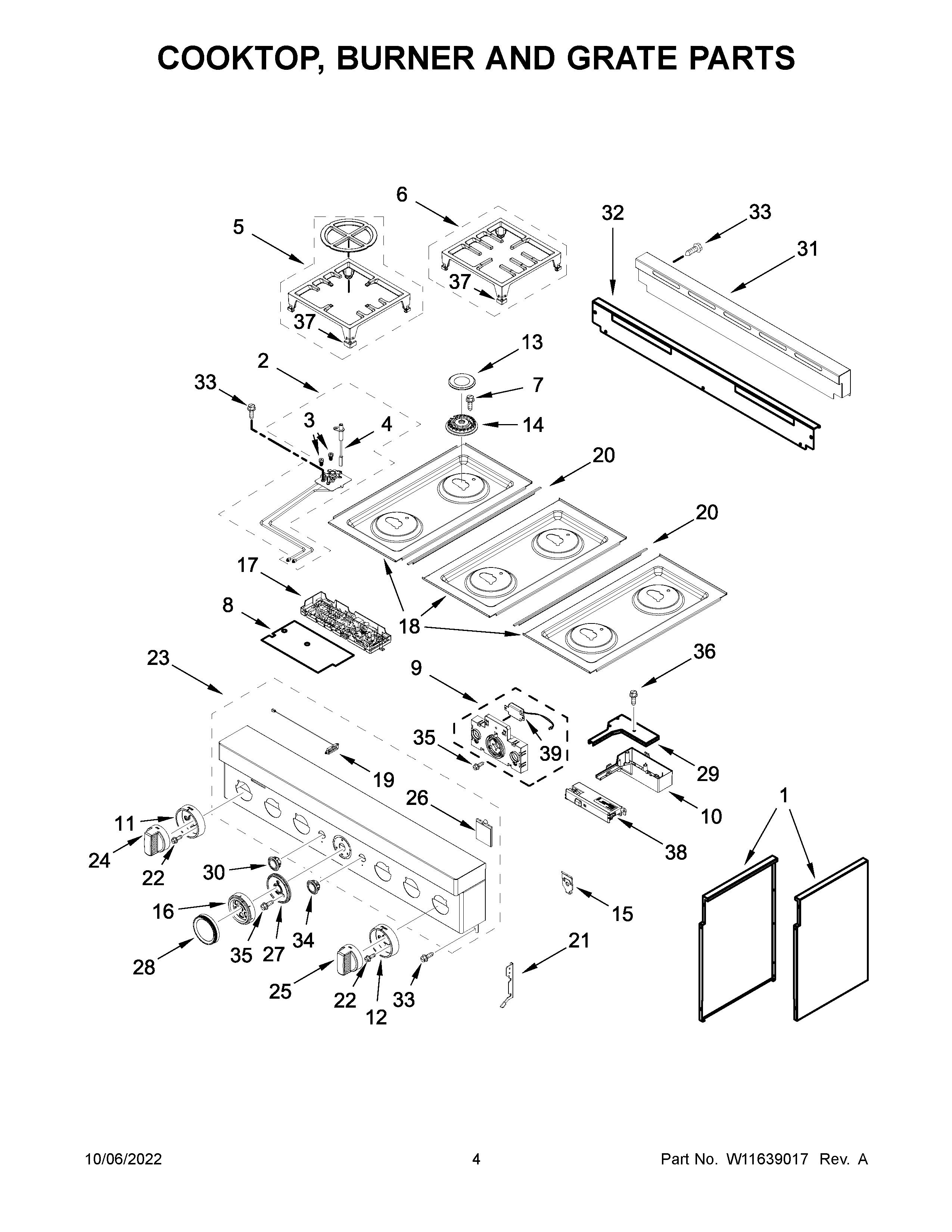

KFGC506JMB05 03 – COOKTOP, BURNER AND GRATE PARTS

KFGC506JMB05 03 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KFGC506JMB05 03 – COOKTOP, BURNER AND GRATE PARTS

Products

Position	Product
1	W11333179 Whirlpool Side Assembly
1A	W11333303 Whirlpool Side Complete Assembly
2C	W11384767 Whirlpool Orifice Holder
2E	W11384765 Whirlpool Orifice Holder
2	W11378584 Whirlpool Orifice Holder
2D	W11334712 Whirlpool Orifice Holder
2A	W11384764 Whirlpool Range Orifice Holder
2B	HOLDER-ORF
3A	W11672510 Whirlpool Spud Orifice
3C	W10892438 Whirlpool Orifice Spud
3B	W11661909 Whirlpool Range Orifice Spud
3	W11643164 Whirlpool Orifice Spud
4A	W11628654 Whirlpool Surface Igniter
4B	W11114379 Whirlpool Appliance Surface Igniter
4	W11573760 Whirlpool Surface Igniter
5	W11380124 Whirlpool Burner Grate
6	W11380128 Whirlpool Burner Grate
7	W11643628 Whirlpool Screw
7A	W11678580 Whirlpool Screw
8	W11320149 Whirlpool Insulator
9	W11492301-includeCORE Whirlpool W11492301 Refrigerator Electronic Control Board
10	COVER, WIFI OUTER
11	W11380145 Whirlpool Knob Bezel
12	W11380146 Whirlpool Knob Bezel
13	W11344538 Whirlpool Surface Burner Cap
14A	W11344742 Whirlpool Burner Head
14B	W11344746 Whirlpool Burner Head
14	W11344539 Whirlpool Burner Head
15	W11318207 Whirlpool Clip Assembly
16	KNOB
17	W11620686 Whirlpool Electronic Control Board + Core
18	W11344755 Whirlpool Cooktop
18A	W11344757 Whirlpool Cooktop
18B	W11344761 Whirlpool Cooktop
19	W11318855 Whirlpool Antenna
20	W10271524 Whirlpool Trim Top
21	W10130760 Whirlpool Bracket Mounting
21A	W10130759 Whirlpool Mounting Bracket
22	W11509770 Whirlpool Screw
23	W11385637 Whirlpool Control Panel
24	W11380561 Whirlpool Knob
25	W11380562 Whirlpool Knob Assembly
26	W10896366 Whirlpool Light Indicator
27	WPL W11500871
28	W11548477 Whirlpool Knob
29	WPL W11205794
30	W11241511 Whirlpool Push Button
31	W11476245 Whirlpool Trim Top
32	W10323250 Whirlpool Top Trim
33	SCREW
34	W11241510 Whirlpool Push Button
35	WP3400814 Whirlpool Screw
36	WPL 7101P62460
37	W11550692 Whirlpool Bumper
38	W11234290 Whirlpool Electronic Control Board
39	W11123146 Whirlpool Speaker
