KFGC506JMH00 06 – VENTING PARTS – Aparts

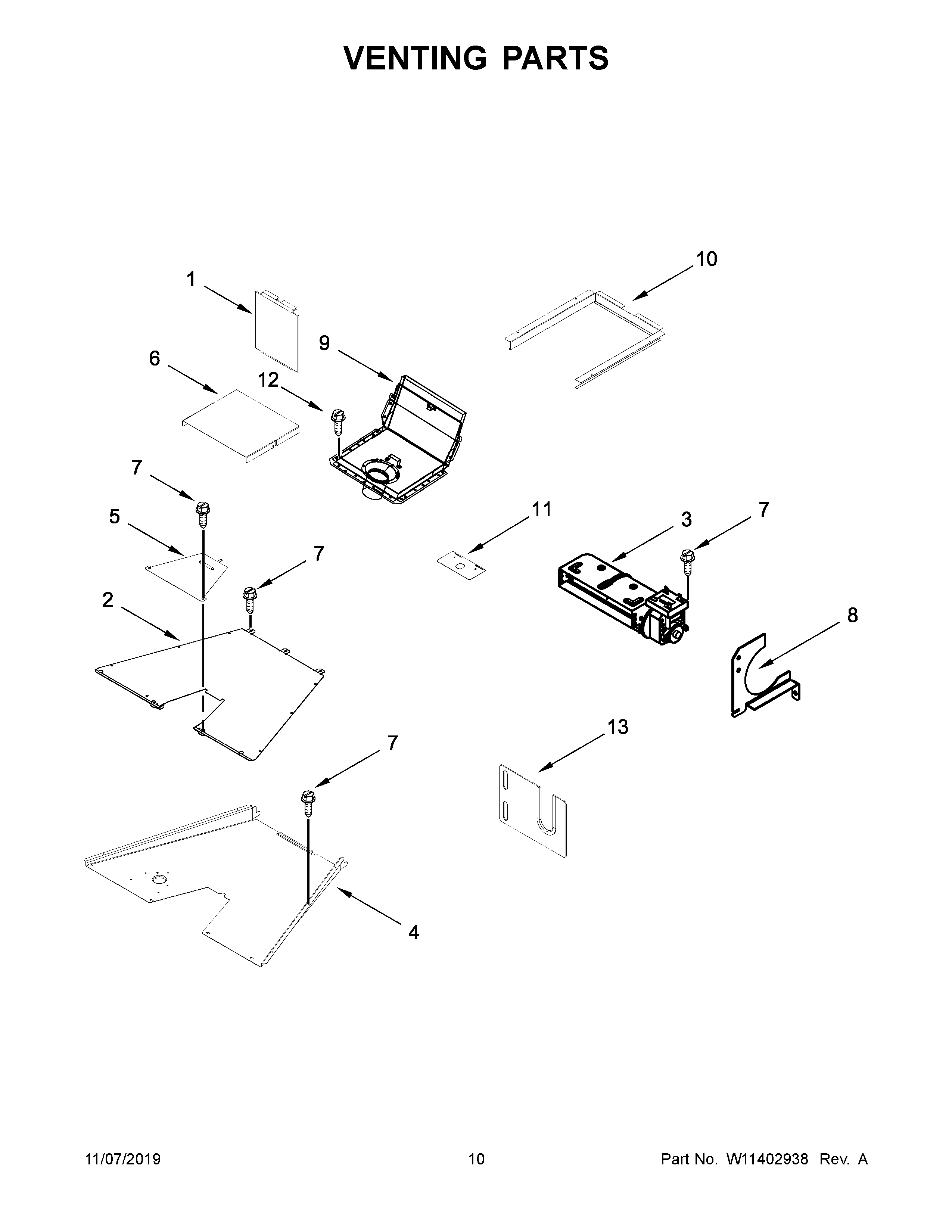

KFGC506JMH00 06 – VENTING PARTS

Products

Position	Product
1	INSULATION, CHIMNEY
2	VENT, COOLING TOP (30 IN)
3	W11248652 Whirlpool Blower
4	VENT, COOLING BOTTOM (30 IN)
5	PLATE, COOLING LATCH
6	RETAINER, INSULATION
7	SCREW
8	BRACKET, BLOWER MOUNT
9	W10340579 Whirlpool Exhaust Vent
10	DUCT, PRIMARY AIR (30 IN)
11	W10115855 Whirlpool Support Bracket
12	WP3400805 Whirlpool Screw Assembly
13	COVER, CHANNEL
