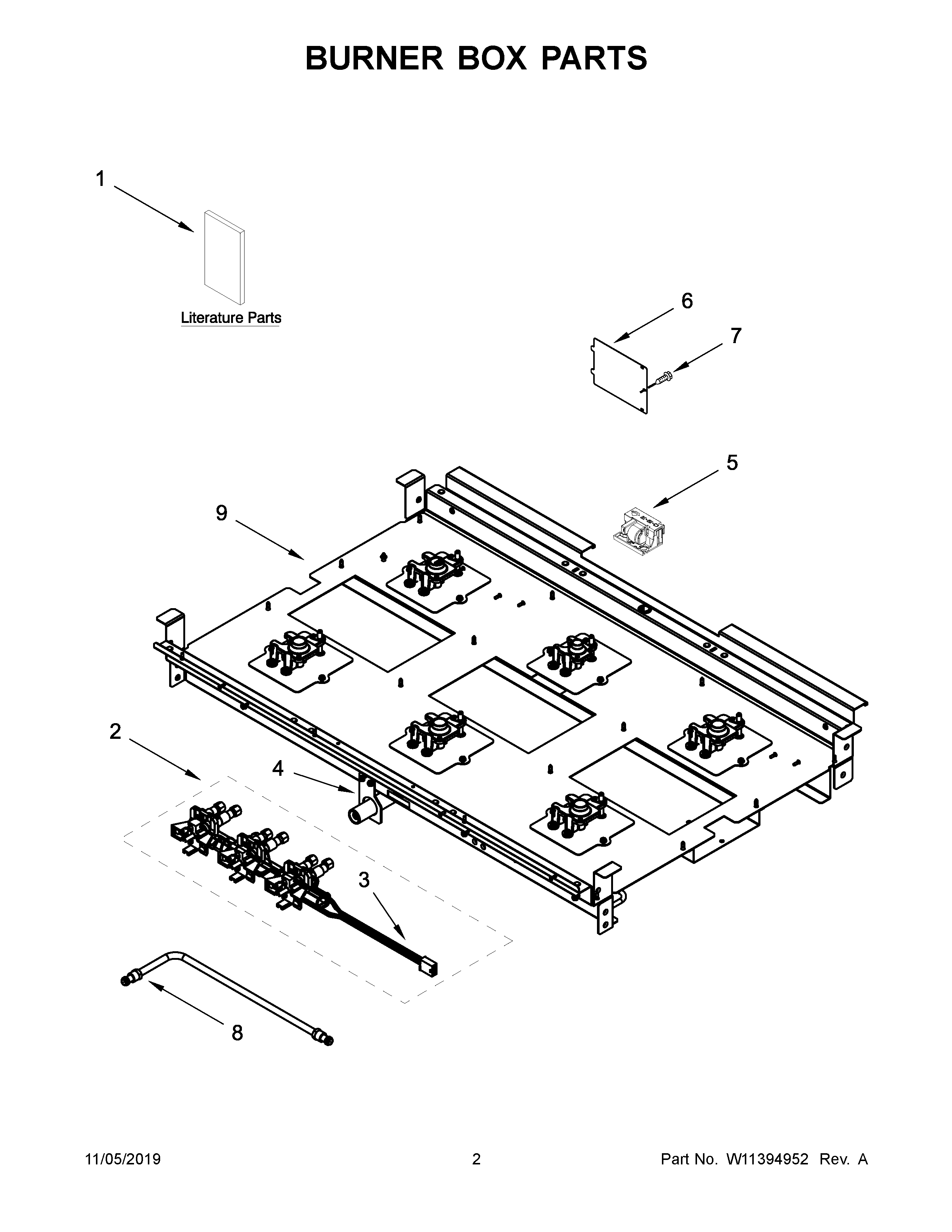

KFGC506JPA00 02 – BURNER BOX PARTS

KFGC506JPA00 02 – BURNER BOX PARTS

Written by

in

KFGC506JPA00 02 – BURNER BOX PARTS

Products

PositionProduct
NIHARNESS, COOKTOP
NIW11200325 Whirlpool Wire Harness
NIW10780278 Whirlpool Wire Harness
NIW10624584 Whirlpool Power Cord
NIW11200307 Whirlpool Wire Harness
NIW11502161 Whirlpool Conversion Kit
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
NIW11446239 Whirlpool Wire Harness
NIW11446236 Whirlpool Wire Harness
NI4450800 Whirlpool Oven Screw
NICABINET (NOT A SERVICEABLE PART)
NIW11317791 Whirlpool Wire Harness
1AINSTRUCTIONS, INSTALLATION
1GUIDE, USE AND CARE
1CDIAGRAM, WIRING
1EGUIDE, QUICK START
1BGUIDE, INTERNET CONNECTIVITY
1DSHEET, TECH
2W11384736 Whirlpool Manifold
2AW11384739 Whirlpool Manifold
3W10903729 Whirlpool Wire Harness
4W11320153 Whirlpool Mounting Bracket
5W11319687 Whirlpool Spark Module
6W10115843 Whirlpool Access Cover
7SCREW
8TUBE, MANIFOLD SUPPLY (LEFT)
8ATUBE, MANIFOLD SUPPLY (RIGHT)
