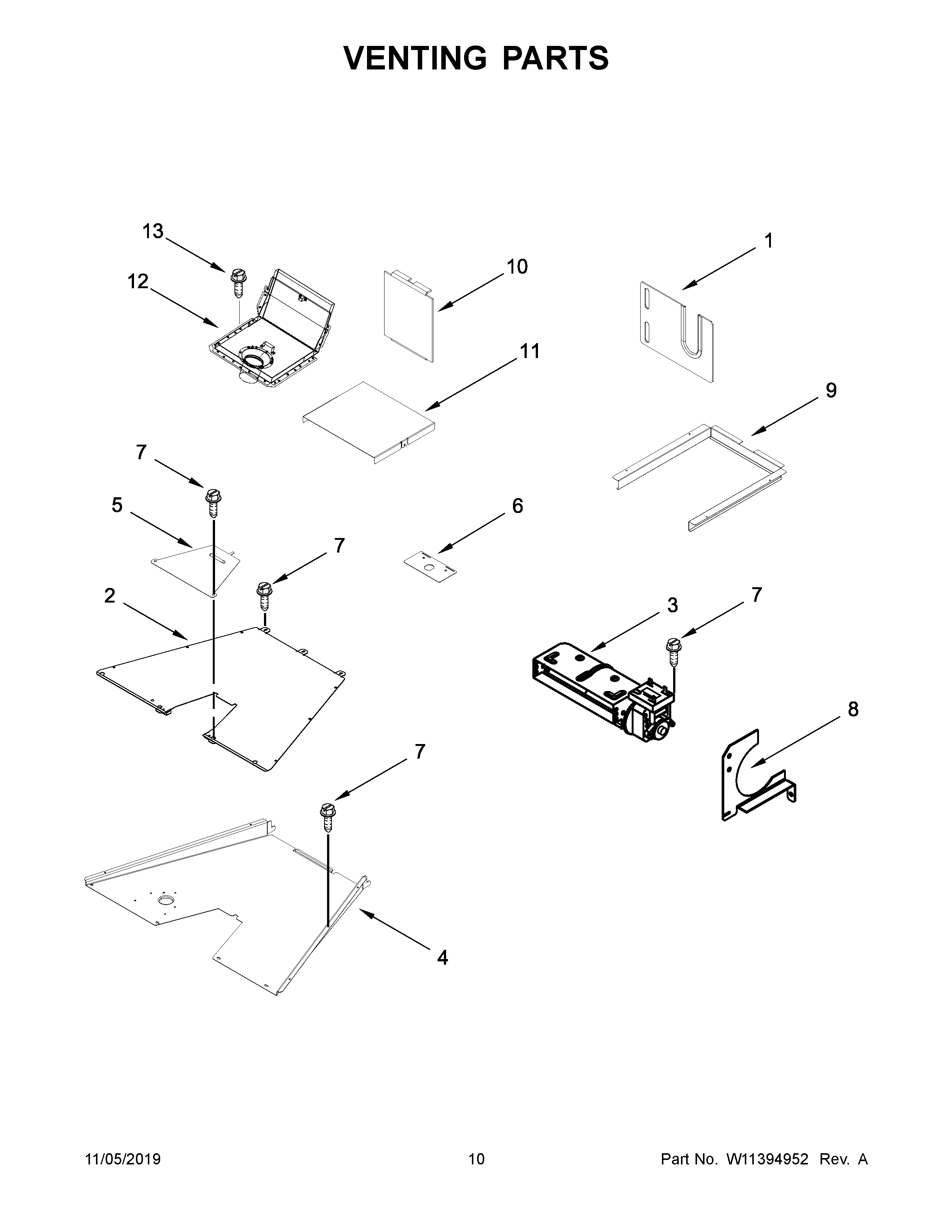

KFGC506JPA00 06 – VENTING PARTS

Products

PositionProduct
1COVER, CHANNEL
2VENT, COOLING TOP (30 IN)
3W11248652 Whirlpool Blower
4VENT, COOLING BOTTOM (30 IN)
5PLATE, COOLING LATCH
6W10115855 Whirlpool Support Bracket
7SCREW
8BRACKET, BLOWER MOUNT
9DUCT, PRIMARY AIR (30 IN)
10INSULATION, CHIMNEY
11RETAINER, INSULATION
12W10340579 Whirlpool Exhaust Vent
13WP3400805 Whirlpool Screw Assembly
