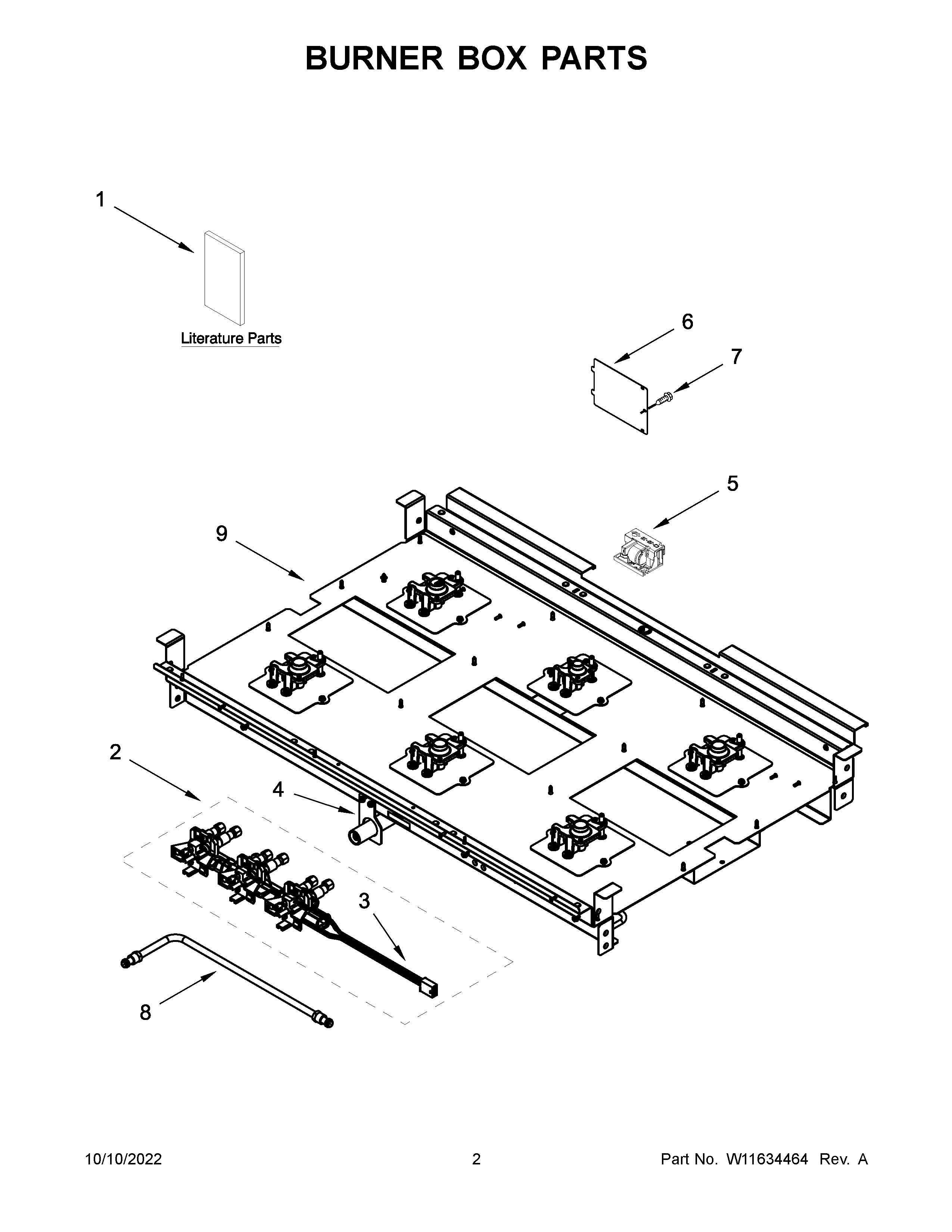

KFGC506JPA05 02 – BURNER BOX PARTS

Products

Position	Product
NI	W11448063 Whirlpool Wire Harness
NI	W11502161 Whirlpool Conversion Kit
NI	HARNESS, COOKTOP
NI	W11317791 Whirlpool Wire Harness
NI	W11200325 Whirlpool Wire Harness
NI	W10780278 Whirlpool Wire Harness
NI	W10624584 Whirlpool Power Cord
NI	SCREW, ANTI-TIP KIT
NI	W11446239 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	4450800 Whirlpool Oven Screw
NI	16515 Whirlpool Clip
NI	W11544575 Whirlpool Anti-Tip Bracket
NI	W11446236 Whirlpool Wire Harness
1C	DIAGRAM, WIRING (COOKTOP)
1B	GUIDE, INTERNET CONNECTIVITY
1D	TECH SHEET
1E	GUIDE, QUICK START
1A	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
2A	W11384739 Whirlpool Manifold
2	W11384736 Whirlpool Manifold
3	W10903729 Whirlpool Wire Harness
4	W11320153 Whirlpool Mounting Bracket
5	W11319687 Whirlpool Spark Module
6	W10115843 Whirlpool Access Cover
7	SCREW
8	TUBE, MANIFOLD SUPPLY (LEFT)
8A	TUBE, MANIFOLD SUPPLY (RIGHT)
