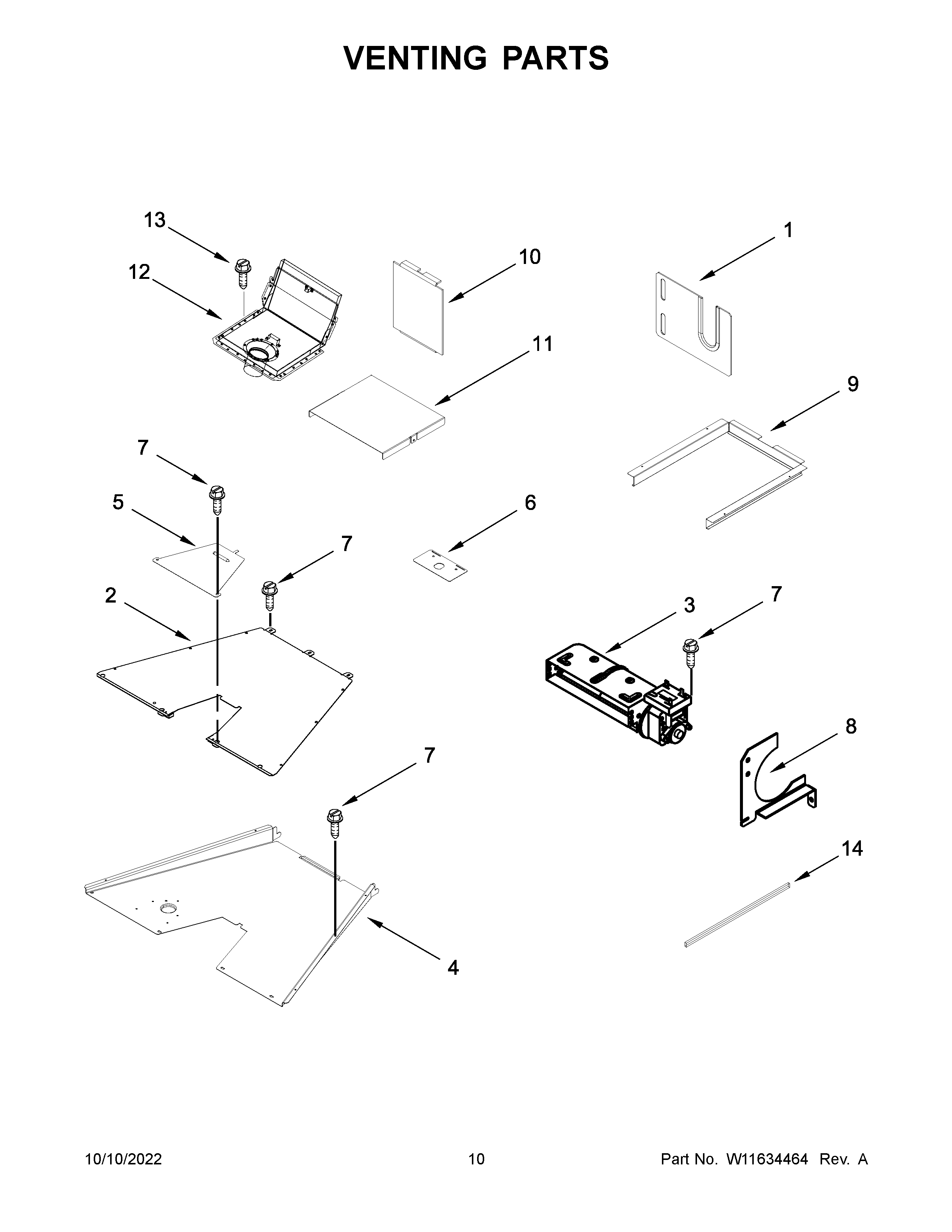

KFGC506JPA05 06 – VENTING PARTS

Products

Position	Product
1	COVER, CHANNEL
2	VENT, COOLING TOP (30 IN)
3	W11248652 Whirlpool Blower
4	VENT, COOLING BOTTOM (30 IN)
5	PLATE, COOLING LATCH
6	W10115855 Whirlpool Support Bracket
7	SCREW
8	BRACKET, BLOWER MOUNT
9	DUCT, PRIMARY AIR (30 IN)
10	INSULATION, CHIMNEY
11	RETAINER, INSULATION
12	W10340579 Whirlpool Exhaust Vent
13	WP3400805 Whirlpool Screw Assembly
14	W11175143 Whirlpool Gasket
