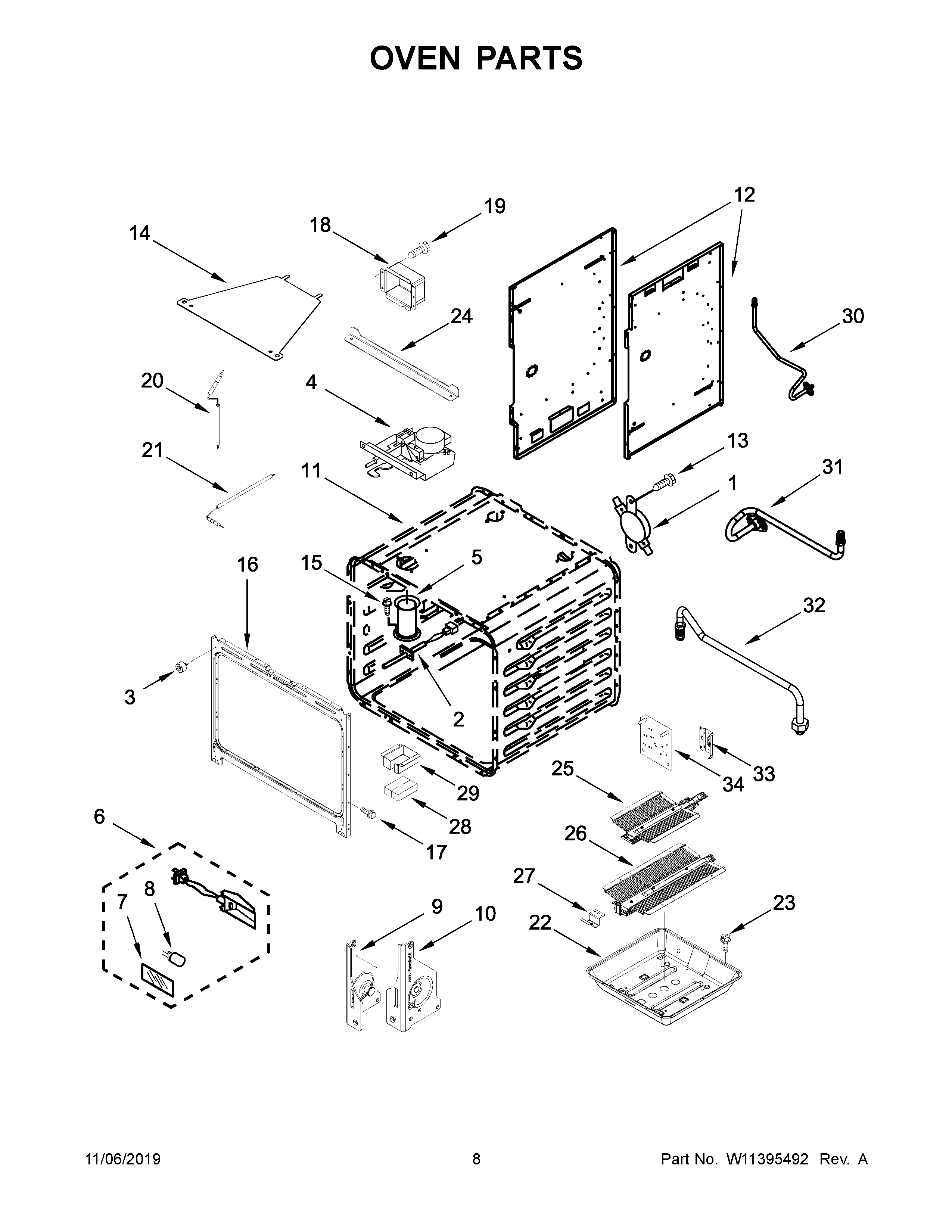

KFGC506JYP00 05 – OVEN PARTS

Products

Position	Product
NI	INSULATION, BACK, 36"
NI	INSULATION, BOTTOM
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP3400968 Whirlpool Nut
NI	W11688743 Whirlpool Insulation
1	WP4450249 Whirlpool Thermostat
2	W10859573 Whirlpool Range Oven Temperature Sensor
3	WPW10351278 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
6	W11233684 Whirlpool Oven Light Assembly
7	W10169756 Whirlpool Light Lens
8	BULB-LIGHT
9	RECEIVER, HINGE (LEFT)
10	RECEIVER, HINGE (RIGHT)
12A	CHASSIS, SIDE (RIGHT)
12	W11320145 Whirlpool Cabinet Panel
13	SCREW
14	W10160858 Whirlpool Lid Cover
15	SCREW
16	W11192749 Whirlpool Front Frame
17	W11169708 Whirlpool Screw
18	W10308051 Whirlpool Burner Box
19	SCREW
20	W11355920 Whirlpool Surface Igniter
21	W11355922 Whirlpool Surface Igniter
22	WPW10145744 Whirlpool Support
23	WP12992902 Whirlpool Refrigerator Screw
24	W10317437 Whirlpool Support Assembly
25	W11643161 Whirlpool Oven Burner
26	W11661180 Whirlpool Burner Broiler
27	W10308040 Whirlpool Pan Bracket
28	INSULATION, BROIL COVER
29	W10310985 Whirlpool Access Cover
30	W11355244 Whirlpool Gas Tubing
31	W11355919 Whirlpool Range Gas Tubing
32	W11356251 Whirlpool Gas Tubing Assembly
33	W10145362 Whirlpool Control Bracket
34	WPW10511278 Whirlpool Spark Module
