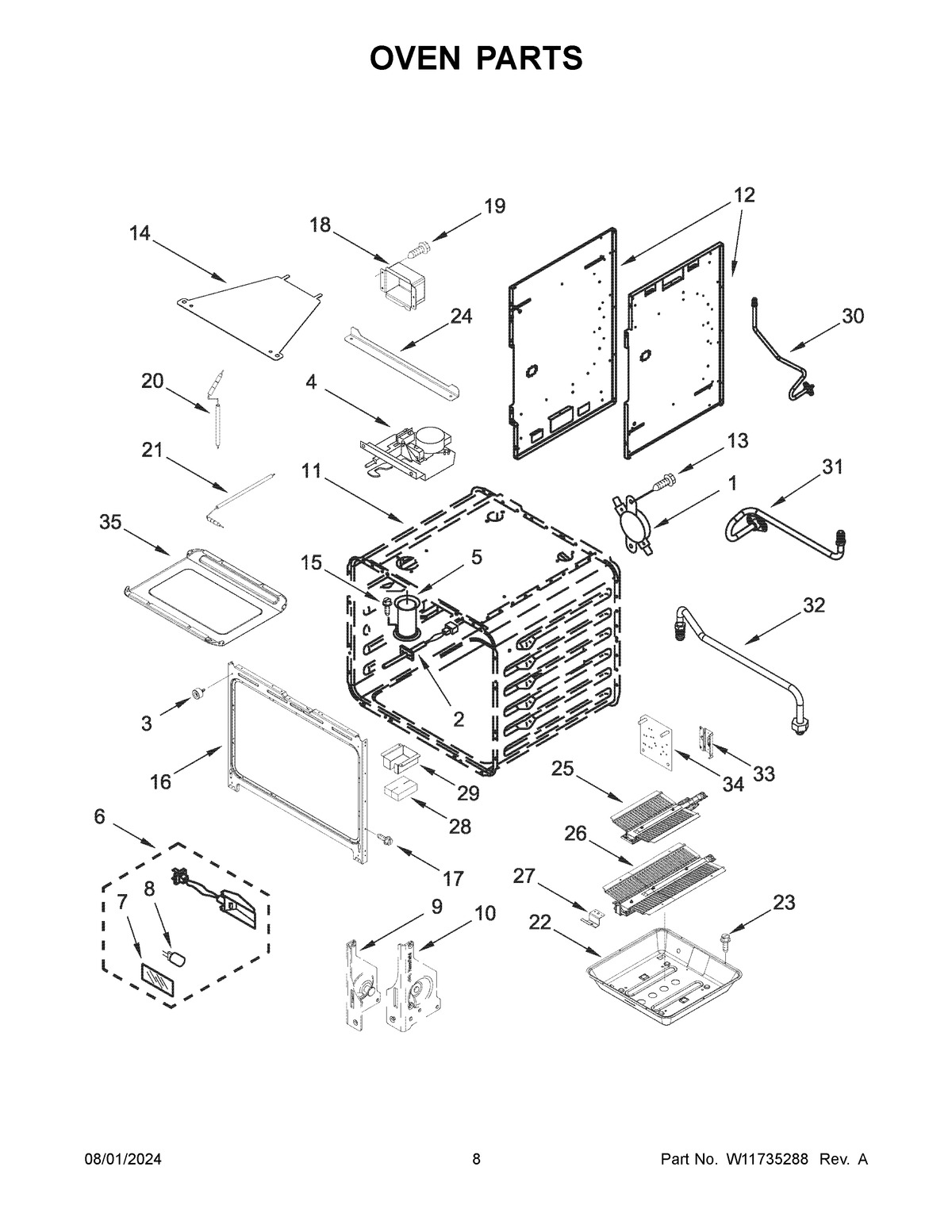

KFGC506JYP07 05 – OVEN PARTS

Products

PositionProduct
NIINSULATION, BACK, 36"
NIW11688743 Whirlpool Insulation
NIWP3400968 Whirlpool Nut
NIINSULATION, BOTTOM
NIFOLLOWING PARTS NOT ILLUSTRATED
1WP4450249 Whirlpool Thermostat
2W10859573 Whirlpool Range Oven Temperature Sensor
3WPW10351278 Whirlpool Bumper
4W11029221 Whirlpool Door Latch
5TUBE, VENT
6W11233684 Whirlpool Oven Light Assembly
7W10169756 Whirlpool Light Lens
8BULB-LIGHT
10RECEIVER, HINGE (NOT SERVICED)
11LINER, OVEN (NOT SERVICED)
12ACHASSIS, SIDE (RIGHT)
12W11320145 Whirlpool Cabinet Panel
13SCREW
14W10160858 Whirlpool Lid Cover
15SCREW
16W11192749 Whirlpool Front Frame
17W11169708 Whirlpool Screw
18W10308051 Whirlpool Burner Box
19SCREW
20W11355920 Whirlpool Surface Igniter
21W11355922 Whirlpool Surface Igniter
22WPW10145744 Whirlpool Support
23WP12992902 Whirlpool Refrigerator Screw
24W10317437 Whirlpool Support Assembly
25W11643161 Whirlpool Oven Burner
26W11661180 Whirlpool Burner Broiler
27W10308040 Whirlpool Pan Bracket
28INSULATION, BROIL COVER
29W10310985 Whirlpool Access Cover
30W11355244 Whirlpool Gas Tubing
31W11355919 Whirlpool Range Gas Tubing
32W11356251 Whirlpool Gas Tubing Assembly
33W10145362 Whirlpool Control Bracket
34WPW10511278 Whirlpool Spark Module
35W11661576 Whirlpool Oven Bottom Pan
