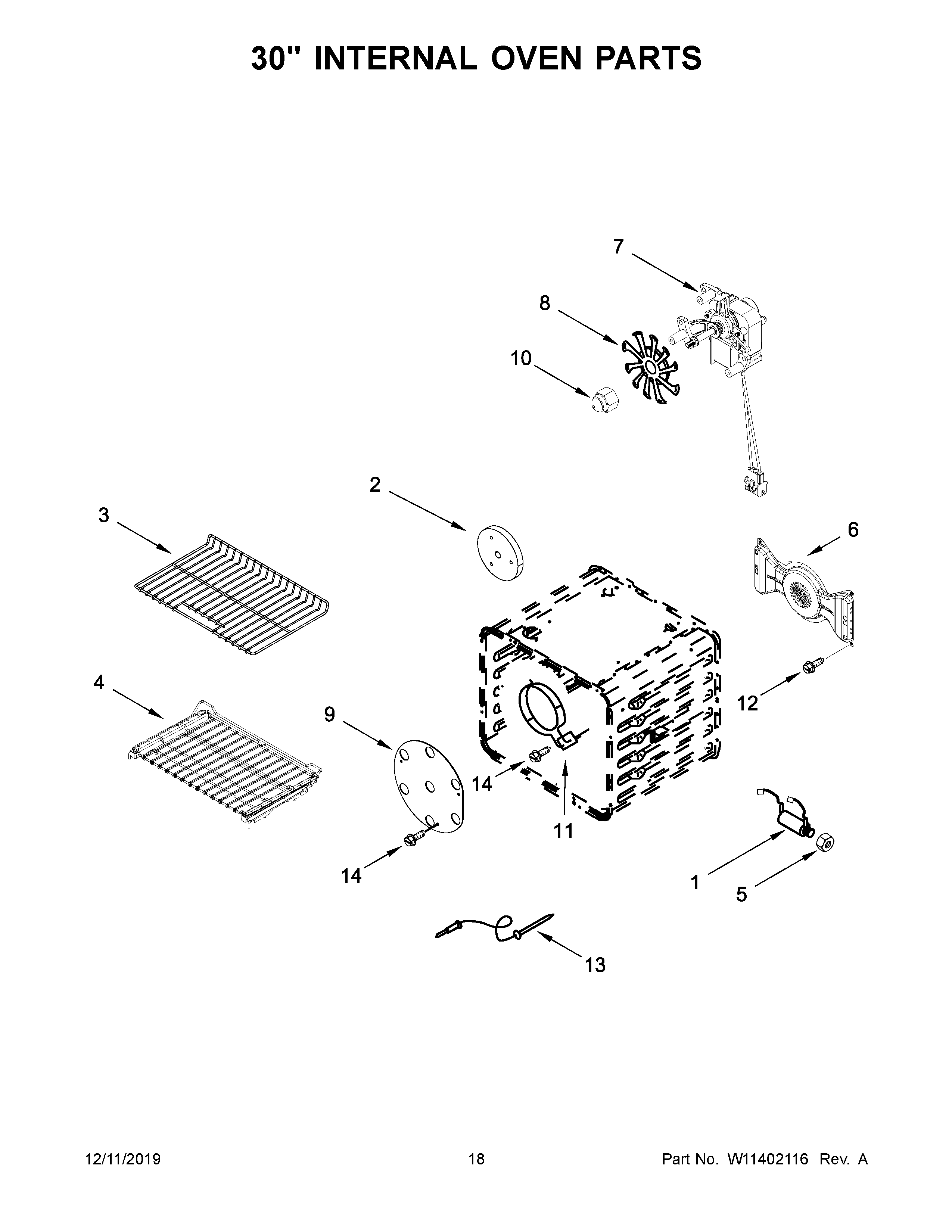

KFGC558JAV00 10 – 30″ INTERNAL OVEN PARTS

KFGC558JAV00 10 – 30″ INTERNAL OVEN PARTS

Written by

in

KFGC558JAV00 10 – 30″ INTERNAL OVEN PARTS

Products

PositionProduct
18186589 Whirlpool Jack Probe
2W11688507 Whirlpool Insulation
3W11550107 Whirlpool Oven Rack
4W11496977 Whirlpool Oven Rack
5W11231343 Whirlpool Lock Nut
6W11662207 Whirlpool Convection Baffle
7W10794440 Whirlpool Fan Motor
8W10819914 Whirlpool Convection Fan
9W10261523 Whirlpool Plate
10W10794042 Whirlpool Nut
11W11098505 Whirlpool Element
12SCREW
13WP9755542 Whirlpool Oven Meat Probe
14WP4449154 Whirlpool Screw
